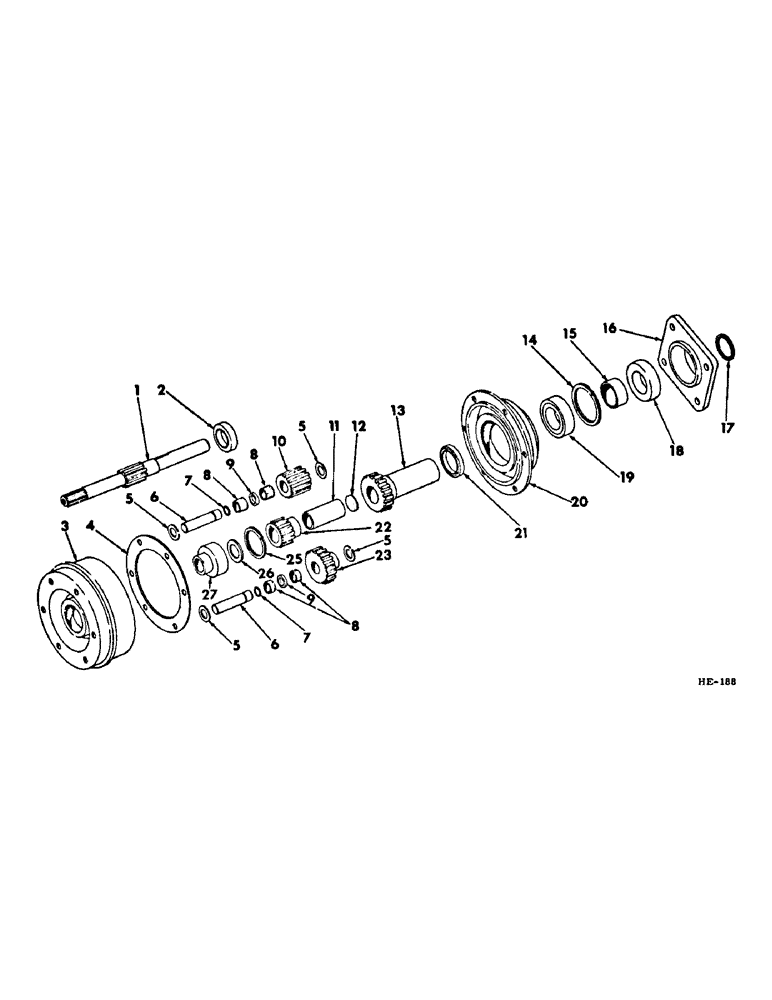

Запчасти Case IH 275 (B-08) - POWER TRAIN, PLANETARY TRANSMISSION (03) - POWER TRAIN

1

SHAFT, transmission drive input (for service on 275 Windrower built prior to machine serial No. 1501, order 2 - 596369R91, BEARING; 1 - 172570, PLUG & 1 - 596367R1, SHAFT)

2шт.

1

596367R1

SHAFT, transmission drive input (for use on 275 Windrower, built w/machine serial No. 1501 to machine serial No. 2554)

2шт.

2

591896R92

SEAL

gear housing oil (opt to use 1 - 935869R92, SEAL)

2шт.

2

935869R92

SEAL,44.35mm ID x 66.72mm OD x 12.7mm Thk

SEAL, gear housing oil (opt to use 1 - 591896R92, SEAL)

2шт.

3

595167R1

HOUSING, transmission gear

2шт.

FO445751

PLUG

1/2" sq-soc automotive pipe

2шт.

4

617955R1

SHIM

.020" thick housing cover

2шт.

5

595161R1

WASHER

gear shaft thrust

8шт.

6

595160R1

SHAFT, planetary gear

4шт.

7

574069R1

O-RING,0.750" ID x .062"

planetary gear shaft

4шт.

8

92016R1

AXLE PIN

PIN, drive gear needle

100шт.

9

595164R1

BUSHING, needle pin spacer

4шт.

10

595165R1

GEAR, 15T, planetary drive

2шт.

11

595153R1

BUSHING, output gear (for use on 275 Windrower, built prior to machine serial No. 1501)

2шт.

11

596369R91

BEARING, output gear (for use on 275 Windrower, built w/machine serial No. 1501 to machine serial No. 2554)

2шт.

12

172570

PLUG,Exp, 1 3/8"

output gear

2шт.

13

GEAR, output (includes 1 - 595153R1, BUSHING & 1 - 172570, PLUG) (for service on 275 Windrower built prior to machine serial No. 1501, order 1 - 596368R91, GEAR & 1 - 596367R1, SHAFT)

2шт.

13

596368R91

GEAR, 25T output (includes 2 - 596369R91, BEARING & 1 - 172570, PLUG) (for use on 275 Windrower, built w/machine serial No. 1501 to machine serial No. 2554)

2шт.

14

21287R1

RING, output gear inner brg retaining

2шт.

15

595156R1

SPACER, output gear outer

2шт.

16

595159R1

RETAINER, output gear outer brg

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

17

296167R1

RING, output gear outer brg retaining

2шт.

18

595157R91

BALL BEARING,50 mm ID x 90 mm OD x 20 mm

output gear outer

2шт.

19

361017R91

BALL BEARING,1.9685" ID x 3.5433 mm OD x 0.7894 mm

output gear inner

2шт.

20

595168R1

COVER, gear housing

2шт.

618465R91

MAGNETIC PLUG

PLUG, 1/2" sq-hd magnetic pipe

2шт.

595175R1

STUD, clutch mounting

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

21

595169R91

OIL SEAL

SEAL, gear housing cover oil (opt to use 1 - 595170R91, SEAL)

2шт.

21

595170R91

SEAL

gear housing cover oil (opt to use 1 - 595169R91, SEAL)

2шт.

22

591884R1

GEAR, 17T input

2шт.

113879

KEY

5/16 x 1-1/4" woodruff

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

23

595166R1

GEAR, 23T planetary idler

2шт.

24

595163R1

PIN, idler gear needle

100шт.

25

616518R1

SNAP RING,#283, 2.954, Int, Spiral

RING, input shaft brg retaining

2шт.

26

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

27

591895R91

BALL BEARING,1.313" ID x 2.8346" OD x 1.35"

input shaft housing

2шт.
