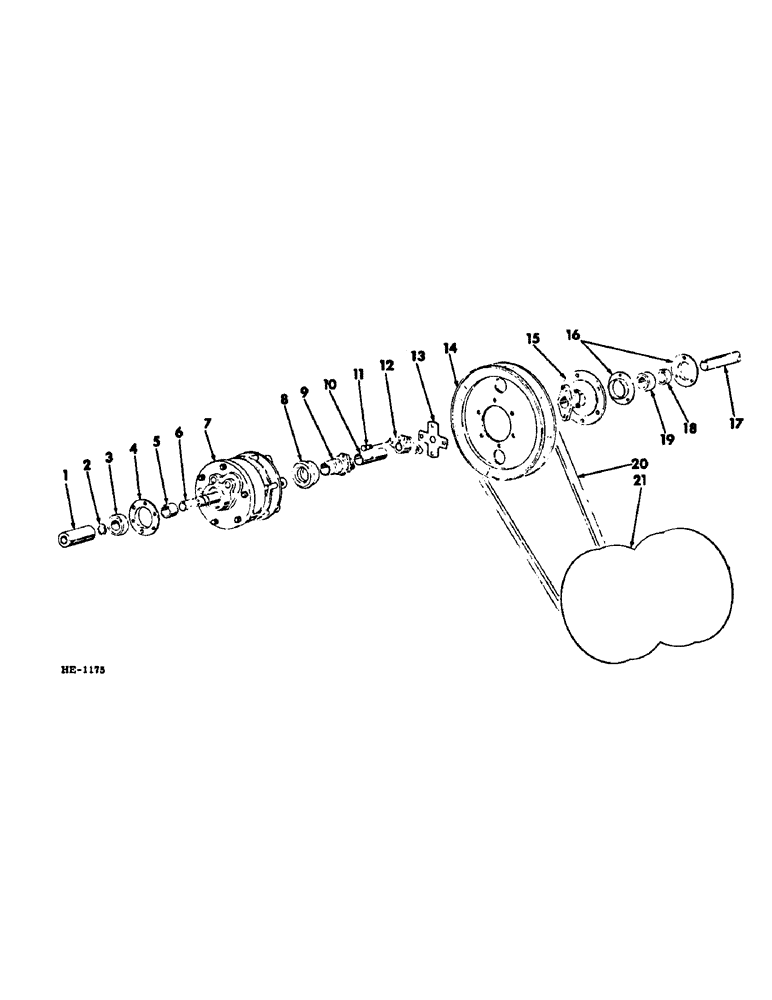

Запчасти Case IH 275 (B-06) - POWER TRAIN, PLANETARY TRANSMISSION DRIVE (03) - POWER TRAIN

1

599072R1

COUPLING

final drive shaft

2шт.

2

659380R1

SNAP RING,#137, Ext

Ring, Snap, , output gear #137, Ext

2шт.

3

599112R91

BEARING ASSY,35mm ID x 72mm OD x 17mm W

output gear support

2шт.

4

599113R1

FLANGETTE, output gear

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

825406C1

SPACER, output gear

2шт.

6

599111R21

GEAR, planetary output (includes 1 - 599119R91, BEARING; 1 - 599120R91, BEARING & 1 - 825494C1, RING) (Also refer to "PLANETARY TRANSMISSION" in section "B" of this parts catalog)

2шт.

7

PLANETARY, transmission (for component parts of this assmembly refer to "PLANETARY TRANSMISSION" in section "B" of this parts catalog)

1шт.

8

595177R92

THRUST BEARING

clutch throwout

2шт.

9

595176R21

CARRIER

SLEEVE, clutch throwout brg (includes 1 - 523092R1, BUSHING)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

brg sleeve

2шт.

11

596021R1

BOLT

BOLT, input shaft coupling hub

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

599104R1

HUB

transmission coupling

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

596020R2

RETAINER

input shaft coupling

1шт.

14

595138R11

PULLEY, transmission drive

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

15

599105R1

HUB, drive coupling

1шт.

581307R1

KEY,5/16" Sq x 2 3/4", Par

5/16 x 5/16 x 2-3/4" straight

1шт.

141251H

LK-WIRE, srew

2шт.

595140C2

SCREW, 7/16 x 3/4" dld-sq-hd-cone-pt-set

1шт.

567821R1

SCREW

7/16 x 3/4" dld-sq-hd-cup-pt-set

1шт.

16

595631R1

SOLE

FLANGETTE, input shaft brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17

825401C1

SHAFT, transmission input LH

1шт.

17

825402C1

SHAFT, transmission input RH

1шт.

18

557115R11

COLLAR

COLLAR, RH input shaft brg locking (includes 1 - 115321, SCREW)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls-cup-pt-set

1шт.

19

455960R91

BALL BEARING

BEARING, input shaft RH

1шт.

20

595137R1

V-BELT,1.50" W x 84.00" L

Transmission drive 1.50" W x 84.00" L

1шт.

21

DRIVE, variable speed (for component parts of this assembly, refer to "VARIABLE SPEED DRIVE" in section "B" of this parts catalog)

1шт.
