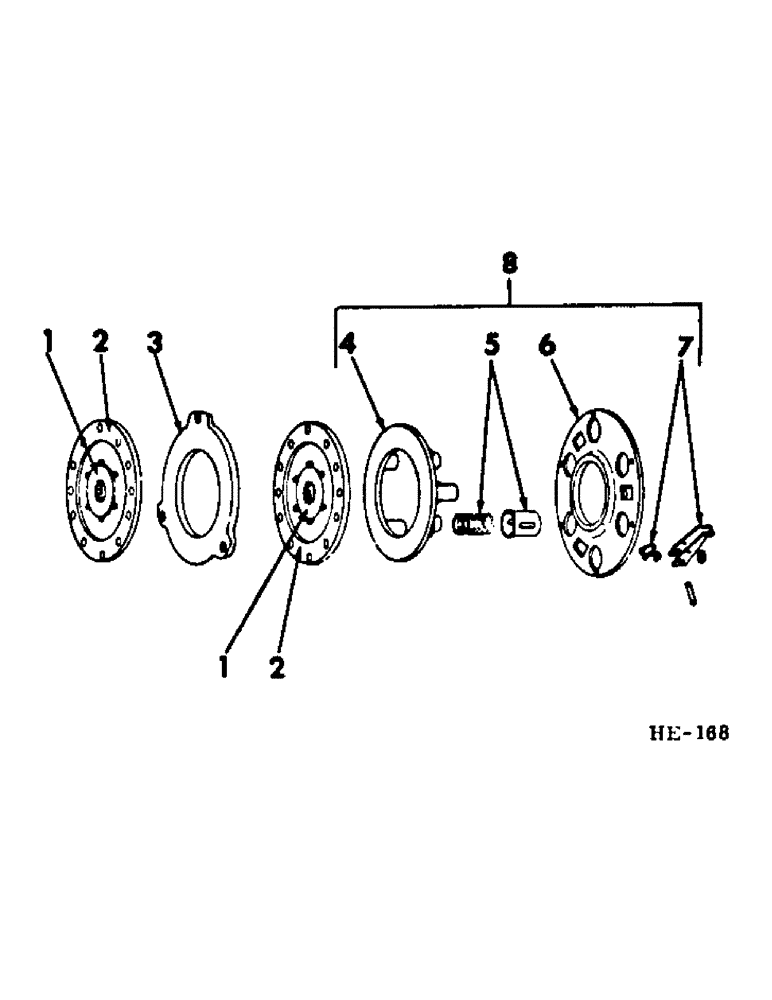

Запчасти Case IH 275 (B-05) - POWER TRAIN, PLANETARY TRANSMISSION CLUTCH (03) - POWER TRAIN

1

619961R91

DISC

HUB AND PLATE, clutch (includes 2 - 618244R91, FACINGS & 6 - 115323, RIVET)

1шт.

115323

RIVET, clutch hub

6шт.

2

618244R91

FACING, CLUTCH

PACKAGE, clutch facings (includes 12 - 61176V, RIVET)

2шт.

61176V

RIVET

clutch facing

24шт.

3

595172R1

PLATE

double clutch friction (for service on 275 Windrower built prior to machine serial No. 2563, order 1 - 823013C1, PLATE & 6 - 823005C1, BUSHING)

2шт.

3

823013C1

PLATE

friction clutch (for use on 275 Windrower built w/machine serial No. 2563 & since)

2шт.

4

PLATE, clutch pressure (NSS) (for service order 1 - 595173R91, PLATE)

2шт.

5

825168C1

KIT

pressure spg & pressure spg cup service (includes 6 - CUPS & 6 - SPRINGS)

1шт.

6

PLATE, clutch back (NSS) (for service order 1 - 595173R91, PLATE)

2шт.

7

825166C1

KIT

PACKAGE, clutch lever service (includes 3 - LEVERS; 3 - SPRINGS; 3 - 114494, NUT & 3 - 103372, PIN)

2шт.

8

595173R91

LARGE PLATE

PLATE, clutch pressure (includes 1 - 825166C1, PACKAGE; 1 - 825168C1, KIT; 3 - 114494, NUT & 3 - 103372, PIN)

2шт.
