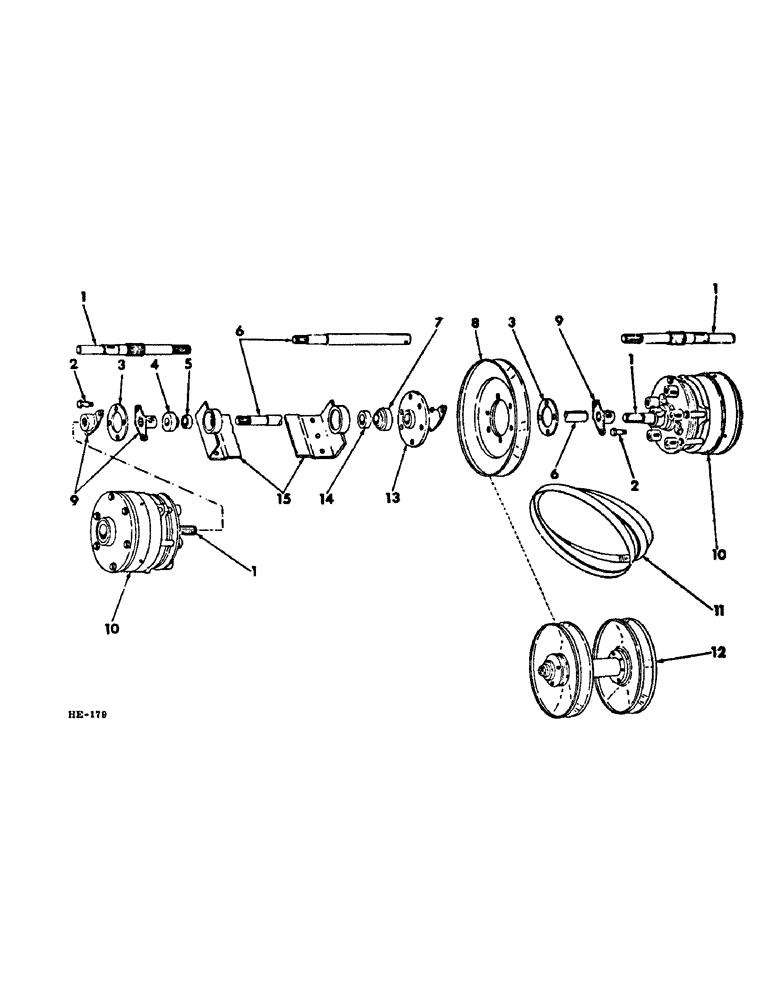

Запчасти Case IH 275 (B-04) - POWER TRAIN, PLANETARY TRANSMISSION DRIVE (03) - POWER TRAIN

1

SHAFT, planetary transmission input (for service on 275 Windrower built prior to machine serial No. 1501, order 2 - 596369R91, BEARING; 1 - 172570, PLUG & 1 - 596367R1, SHAFT)

2шт.

1

596367R1

SHAFT, planetary transmission input (for use on 275 Windrower built w/machine No. 1501 to machine serial No. 2554.

2шт.

2

596021R1

BOLT

BOLT, input shaft coupling hub

3шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

596020R2

RETAINER

input shaft coupling

2шт.

4

618210R91

BEARING

centre drive shaft LH

1шт.

5

557115R11

COLLAR

COLLAR, centre drive shaft brg lk LH (includes 1 - 115321, SCREW)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls-cup-pt-set

1шт.

6

595148R1

SHAFT, transmission centre

1шт.

7

628904R91

BEARING ASSY,1.3755" ID x 72 mm OD x 2.015625"

BEARING, centre drive shaft RH

1шт.

8

595138R11

PULLEY, transmission drive

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

6шт.

271501

SOCKET

NUT, 7/16"

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

9

596019R1

HUB, input shaft coupling

3шт.

595140R2

SCREW, 7/16 x 3/4" dld-sq-hd-cone-pt-set

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

PLANETARY, transmission (for component parts of this assembly refer to "PLANETARY TRANSMISSION" in section "B" of this parts catalog)

1шт.

11

595137R1

V-BELT,1.50" W x 84.00" L

Transmission drive 1.50" W x 84.00" L

1шт.

12

DRIVE, variable speed (for component parts of this assmembly refer to "VARIABLE SPEED DRIVE" in section "B" of this parts catalog)

1шт.

13

595139R1

HUB, transmission drive pulley

1шт.

620280R1

KEY, 5/16 x 5/16 x 3-1/2" straight

1шт.

567821R1

SCREW

7/16 x 3/4" dld-sq-hd-cup-pt-set

1шт.

595140R2

SCREW, 7/16 x 3/4" dld-sq-hd-cone-pt-set

1шт.

14

517645R11

COLLAR

centre shaft brg locking RH (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls-cup-pt-set

1шт.

15

595144R91

SUPPORT, centre drive shaft brg

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4" hardened dowel

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
