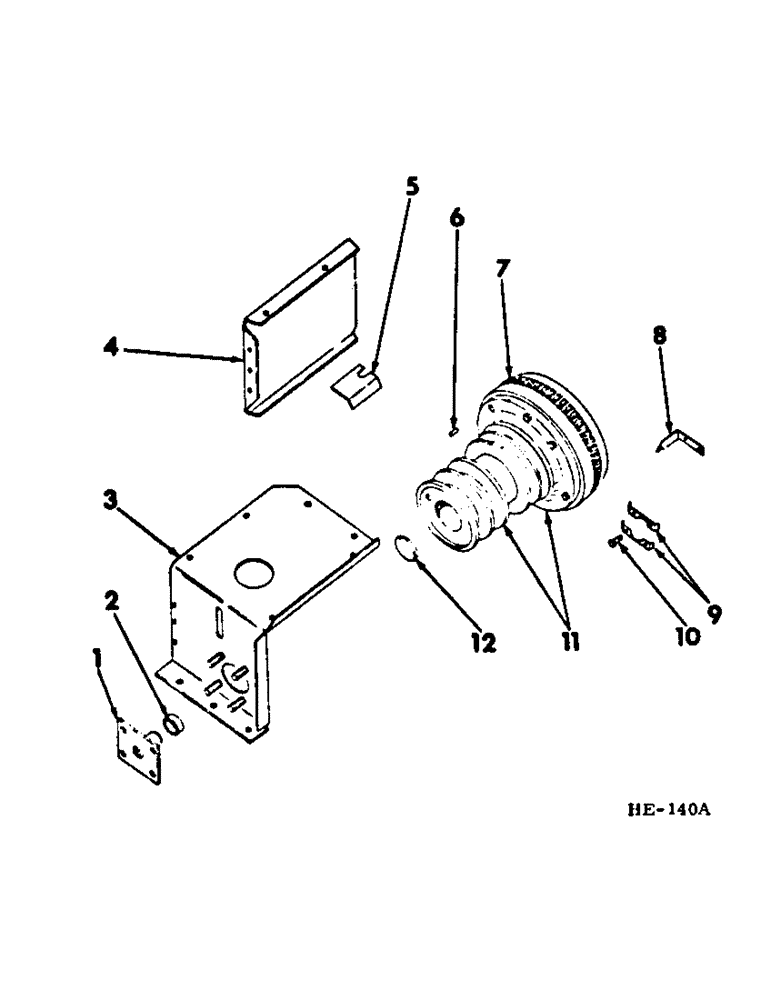

Запчасти Case IH 275 (B-02) - POWER TRAIN, FLYWHEEL AND PTO PULLEY (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
595455R92
PIVOT, PTO pulley brg
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
22191R1
WASHER
17/32 x 1-3/4 x 7 ga
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
2
595454R91
BALL BEARING,35 mm ID x 72 mm OD x 25 mm
BEARING, PTO pulley
1шт.
3
595458R11
SUPPORT, PTO housing outer (for use on 275 Windrower when equipped w/gasoline engine & built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine & built prior to machine serial No. 201)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
5шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
5шт.
120384
WASHER,1/2"
LOCK, 1/2"
5шт.
3
596471R3
SUPPORT, PTO housing outer (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000) (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
5шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
5шт.
120384
WASHER,1/2"
LOCK, 1/2"
5шт.
3
827025C1
SUPPORT, PTO housing outer (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
5шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
5шт.
120384
WASHER,1/2"
LOCK, 1/2"
5шт.
4
595459R11
SUPPORT, PTO housing rear (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
7шт.
181636
BOLT,Hex, 3/8" - 24 x 7/8", Gr 5
3/8 NF x 7/8"
2шт.
120376
NUT,5/16"-18, G5
3шт.
120369
NUT,3/8"-24, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
7шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
4
596473R2
SUPPORT, PTO housing rear (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
5шт.
180078
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
5/16 x 7/8"
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
4
596473R2
SUPPORT, PTO housing rear (for use on 275 Windrower when equipped w/diesel engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/diesel engine, built prior to machine serial No. 2000)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
5
596467R1
DEFLECTOR, flywheel dust (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 4000) (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)
1шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/4"
2шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8"
2шт.
6
20024R1
PIN
3/8 x 1" flywheel dowel
2шт.
7
13456VA
GEAR
111T flywheel ring (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
1шт.
7
433366C1
GEAR
flywheel ring (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)
1шт.
7
60883H
RING GEAR
GEAR, flywheel ring (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000) (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)
1шт.
8
595452R1
INDICATOR, engine timing (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
8
595452R1
INDICATOR, engine timing (for use on 375 Windrower when equipped w/gasoline engine, built to machine serial No. 201)
1шт.
180144
RETAINER
BOLT, 7/16 x 7/8"
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16"
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
9
614723R1
LOCK, flywheel bolt (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
2шт.
10
560172R1
BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8
3/8 - NF x 1-1/2" special type 8 flywheel (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
4шт.
10
22762R1
BOLT, flywheel lk (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)
6шт.
10
387159C1
BOLT
flywheel lk (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)
6шт.
10
3055156R2
BOLT,1/2" - 20 x 33.5mm
flywheel lk (for use on 275 Windrower and 375 Windrower when equipped w/diesel engine.
7шт.
11
595447R92
FLYWHEEL & PTO PULLEY, engine includes 8 - 180081, BOLT; 1 - 13456VA, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
826977C91
FLYWHEEL & PTO PULLEY, engine (includes 6 - 180124, BOLT; 1 - 433366C1, GEAR; 6 - 120382, LOCKWASHER & 2 - 20024R1, PIN) (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since)
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4"
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
11
595448R91
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 13456VA, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
598115R92
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 60883H, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 701)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
823734C91
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 60883H, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 701 to machine serial No. 2000)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
826978C91
FLYWHEEL & PTO PULLEY, engine (includes 6 - 180124, BOLT; 1 - 433366C1, GEAR; 6 - 120382, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 2000 & since)
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4"
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
11
596468R92
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 60883H, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 275 Windrower when equipped w/diesel engine)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
596470R92
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 60883H, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/diesel engine, built prior to machine serial No. 701)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
11
823733C91
FLYWHEEL & PTO PULLEY, engine (includes 8 - 180081, BOLT; 1 - 60883H, GEAR; 8 - 120214, LOCKWASHER & 2 - 20024R1, PIN) (for use on 375 Windrower when equipped w/diesel engine, built w/machine serial No. 701 & since)
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
12
172601
PLUG
2-5/8" dia PTO pulley expansion
1шт.
Выбрано товаров: 81
