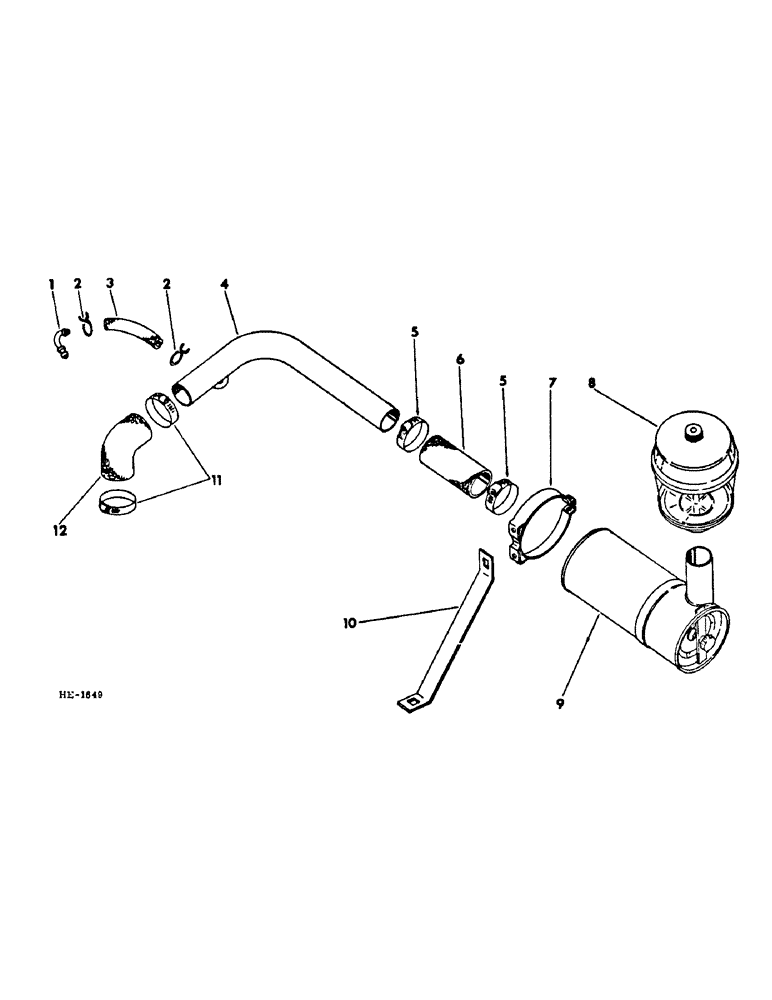

Запчасти Case IH 275 (E-20) - FUEL SYSTEM, AIR CLEANER CONNECTIONS (02) - FUEL SYSTEM

1

827278C1

ELBOW

valve cover vent hose (also refer to "VALVE COVER" in section "C" of this parts catalog)

1шт.

2

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, vent hose

2шт.

3

827099C1

HOSE, valve cover pan vent

1шт.

4

827040C1

TUBE, air cleaner

1шт.

5

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, air cleaner hose

2шт.

6

428651R1

HOSE, air cleaner

1шт.

7

675384R91

CLAMP

air cleaner

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

365261R91

PRECLEANER

PRE-CLEANER, air cleaner (for component parts of this assembly refer to "PRE-CLEANER" in section "E" of this parts catalog)

1шт.

9

597847R91

CLEANER, dry type air (for component parts of this assembly refer to "AIR CLEANER" in section "E" of this parts catalog)

1шт.

10

827191C1

SUPPORT, air cleaner (275 Windrower)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1" (gas)

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

(Diesel) Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

827152C1

SUPPORT, air cleaner (375 Windrower)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, air cleaner elbow hose

2шт.

12

826982C1

HOSE, air cleaner tube elbow

1шт.
