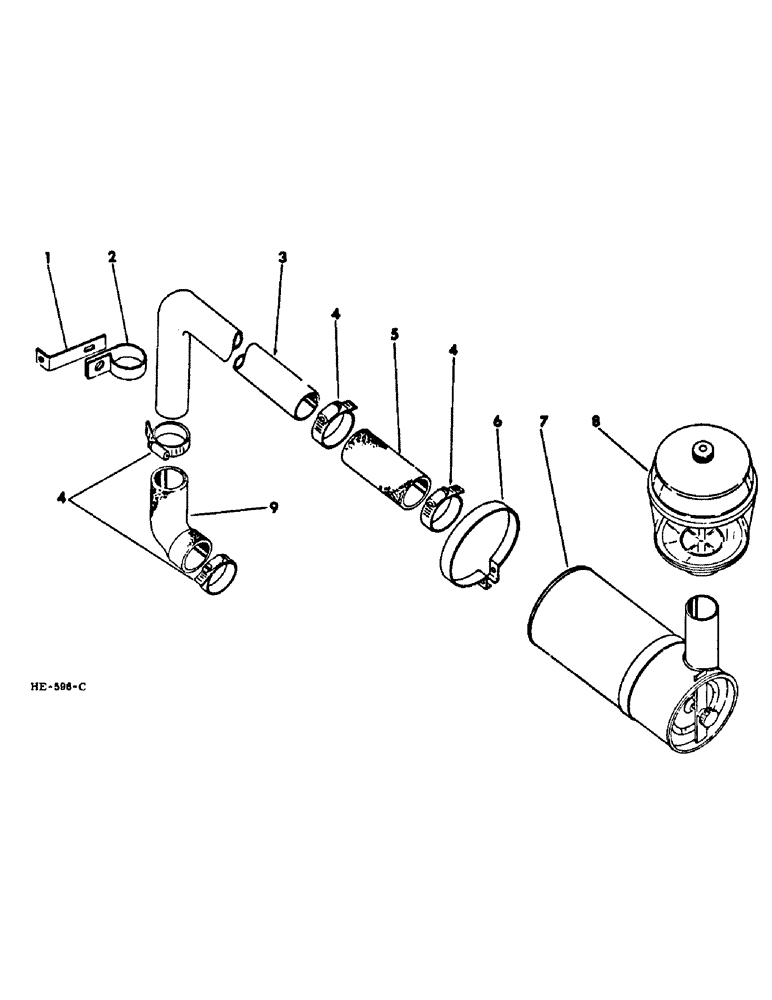

Запчасти Case IH 275 (E-18) - FUEL SYSTEM, AIR CLEANER CONNECTIONS (02) - FUEL SYSTEM

1

598145R1

SUPPORT, air cleaner tube clamp

1шт.

2

598144R1

CLAMP, air cleaner tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

598143R1

TUBE, air cleaner 2.25" OD, 18, 10.5" Length

1шт.

4

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, air cleaner tube

4шт.

5

428651R1

HOSE, cleaner end

1шт.

6

675384R91

CLAMP

air cleaner

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

597847R91

CLEANER, dry type air (for component parts of this assembly refer to "AIR CLEANER" in section "E" of this parts catalog)

1шт.

8

365261R91

PRECLEANER

PRE-CLEANER, air cleaner (for component parts of this assembly refer to "PRE-CLEANER" in section "E" of this parts catalog)

1шт.

9

598146R1

HOSE, manifold end air cleaner

1шт.
