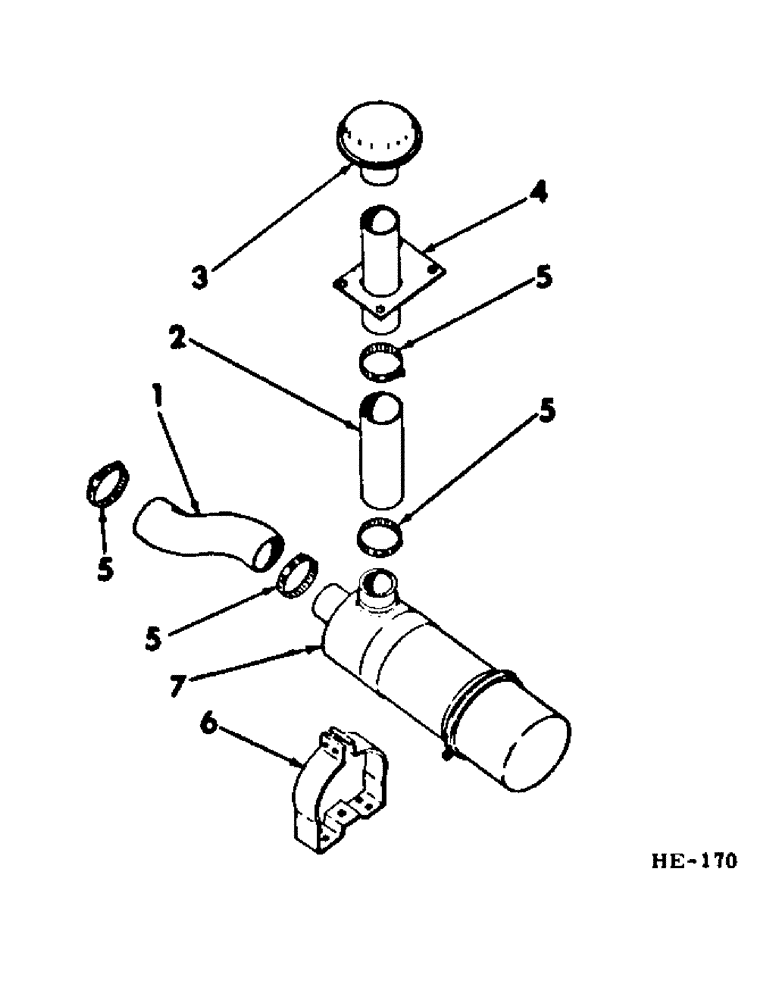

Запчасти Case IH 275 (E-17) - FUEL SYSTEM, AIR CLEANER CONNECTIONS (02) - FUEL SYSTEM

1

595549R1

HOSE, air cleaner to engine carburetor

1шт.

2

HOSE, intake cap to air cleaner 2" I.D. x 7" in length (dealer to cut & supply from bulk stock part number 407008R1)

1шт.

2

407008R1

HOSE,50.8mm ID x 914.4mm L

2" I.D. x 36" bulk stock

1шт.

3

353019R92

CYLINDER END CAP

CAP, air cleaner intake

1шт.

4

595544R91

SUPPORT, air intake cap

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose

4шт.

6

704536R1

BRACKET

air cleaner mounting

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

388126R92

CLEANER, dry-type (Donaldson) (opt to use 1 - 595548R91, CLEANER) (for component parts of this assembly refer to "AIR CLEANER" in section "E" of this parts catalog)

1шт.

7

595548R91

CLEANER, dry-type (UNITED) (opt to use 1 - 388126R92, CLEANER) (for component parts of this assembly refer to "AIR CLEANER" in section "E" of this parts catalog)

1шт.

181636

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

3/8 - NF x 7/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
