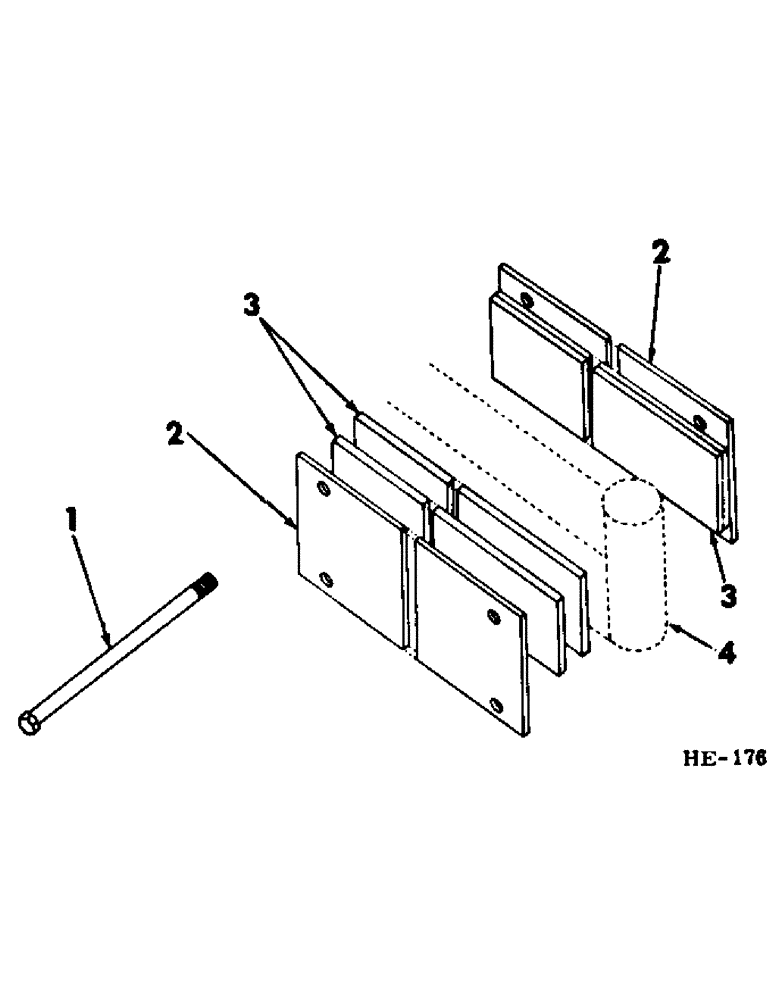

Запчасти Case IH 275 (N-13) - PARTS ACCESSORIES AND ATTACHMENTS, TAIL WHEEL BEAM COUNTER WEIGHT Accessories & Attachments

1

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

bars & plates to beam (3/4 x 9" BOLT)

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

592190R2

PLATE, beam weight

2шт.

3

592194R2

BAR, beam weight

4шт.

4

BEAM, tail wheel (for component parts of this assembly refer to "MAIN FRAME AND TAIL WHEEL BEAM" in section "A" of this parts catalog)

1шт.
