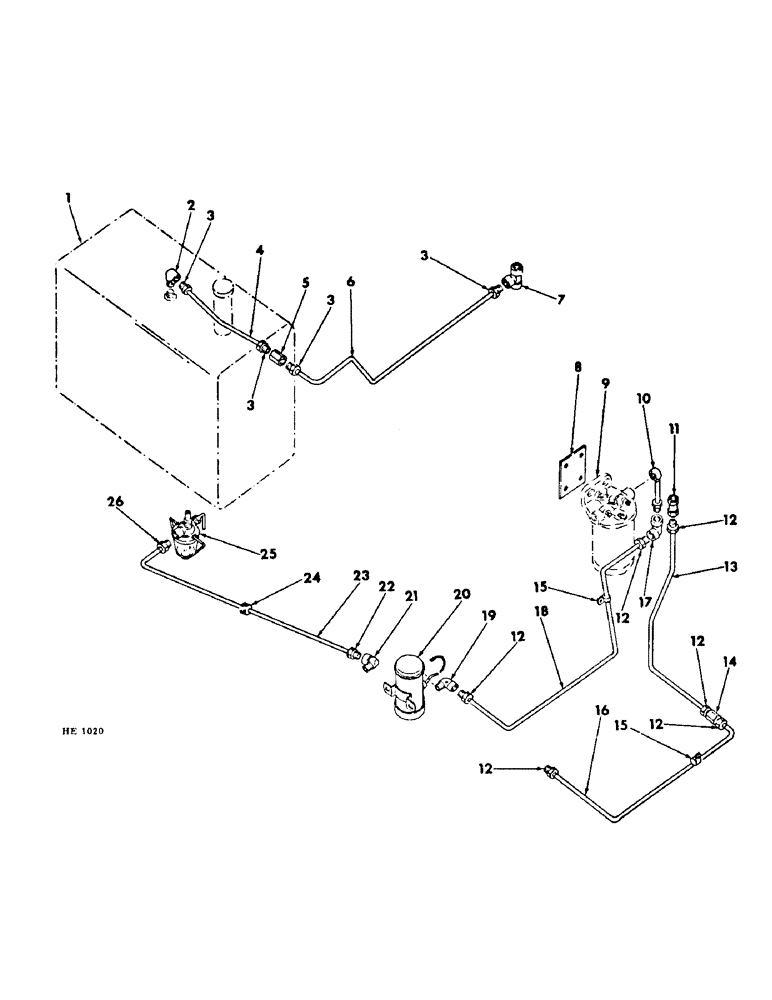

Запчасти Case IH 275 (E-14) - FUEL SYSTEM, FUEL LINES (02) - FUEL SYSTEM

1

596448R1

TANK, fuel (for component parts of this assembly refer to "FUEL TANK" in section "E" of this parts catalog)

1шт.

2

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

5/16" fuel tank spill return

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, 5/16" spill return tube

4шт.

TUBE, fuel spill & return 5/16" OD x 52" in length flexible nylon (dealer to cut & supply from bulk stock - 936761R1 is part number for 1 foot of tube) (for use on 275 Windrower built prior to machine serial No. 2101) (for use on 375 Windrower built prior to machine serial No. 451)

1шт.

4

823239C1

TUBE, engine return to union (for use on 275 Windrower built w/machine serial No. 2101 & since) (for use on 375 Windrower built w/machine serial No. 451 & since)

1шт.

5

50050D

UNION, fuel line to fuel line return (for use on 275 Windrower built w/machine serial No. 2101 & since) (for use on 375 Windrower built w/machine serial No. 451 & since)

1шт.

6

823238C1

TUBE, engine to union & return line (for use on 275 Windrower built w/machine serial No. 2101 & since) (for use on 375 Windrower built w/machine serial No. 451 & since)

1шт.

7

51542D

UNION, 5/16" tee for fuel injection pump glow plug & spill return tube 1/2"-20

1шт.

8

823769C1

BAR, fuel filter support (for use on 275 Windrower built w/machine serial No. 2275 & since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

FILTER, diesel fuel (for component parts of this assembly, refer to section "D" of this parts catalog)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" (275 W)

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" (375 Windrower)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" (375 Windrower)

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

10

TUBE, fuel filter to fuel injection pump line elbow (refer to section "D" of this parts catalog)

1шт.

11

50050D

UNION, 5/16" fuel pump to engine fuel filter tube (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 701)

1шт.

12

222-503

TUBE NUT,1/2"-20

NUT, 5/16" fuel pump elbow for pump elbow for pump to fuel filter tube

4шт.

TUBE, 5/16" OD x 50" in length flexible nylon fuel pump to engine fuel filter (dealer to cut & supply from bulk stock - 936761R1 is part number for 1 foot of tube) (for use on 275 Windrower built prior to machine serial No. 2101) (for use on 375 Windrower built prior to machine serial No. 451)

1шт.

13

823237C1

TUBE, fuel filter to fuel line union (for use on 275 Windrower built w/machine serial No. 2101 to machine serial No. 2275) (for use on 375 Windrower built w/machine serial No. 451 to machine serial No. 701) 0.313" OD, 10, 13.8" Length

1шт.

14

50050D

UNION, fuel pump line to fuel filter line (for use on 275 Windrower built prior to machine serial No. 2275) (for use on 375 Windrower built prior to machine serial No. 701)

1шт.

15

140579

CLAMP, fuel filter tube

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

599713R1

TUBE, fuel pump to fuel line union (for use on 275 Windrower built w/machine serial No. 2101 to machine serial No. 2275) (for use on 375 Windrower built w/machine serial No. 451 to machine serial No. 701) 0.313" OD, 18.1, 8.7" Length

1шт.

17

17152R1

ELBOW, fuel filter tube (for use on 275 Windrower built w/machine serial No. 2275 & since) (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

18

823717C1

TUBE, union to engine fuel filter (for use on 275 Windrower, built w/machine serial No. 2275 & since) (for use on 375 Windrower, built w/machine serial No. 701 & since)

1шт.

19

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" strainer to pump tube

1шт.

20

394327R92

PUMP

12 volt electric fuel

1шт.

180018

CONNECTING LINK

1/4 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" pump to fuel injection

1шт.

22

222-503

TUBE NUT,1/2"-20

NUT, 5/16" strainer to pump tube

1шт.

TUBE, 5/16" OD x 33-1/2" flexible nylon fuel strainer to fuel pump (dealer to cut & supply from bulk stock - 936761R1 is part number for 1 foot of tube) (for use on 275 Windrower built prior to machine serial No. 2101) (for use on 375 Windrower built prior to machine serial no. 451)

1шт.

23

599714R1

TUBE, fuel strainer to fuel pump (for use on 275 Windrower, built w/machine serial No. 2101 & since) (for use on 375 Windrower built w/machine serial no. 451 & since) 0.313" OD, 24.2, 6.7" Length

1шт.

24

117960

GROMMET,5/16" ID x .719" x .188"

strainer to pump tube rubber (for use on 275 Windrower built prior to machine serial No. 2101) (for use on 375 Windrower built prior to machine serial No. 451)

1шт.

25

369988R91

FILTER CARTRIDGE

STRAINER, fuel (for component parts of this assembly refer to "FUEL STRAINER" in section "E" of this parts catalog)

1шт.

26

19985R1

TUBE NUT,1/2"-20

NUT, w/nylon insert, fuel strainer

1шт.
