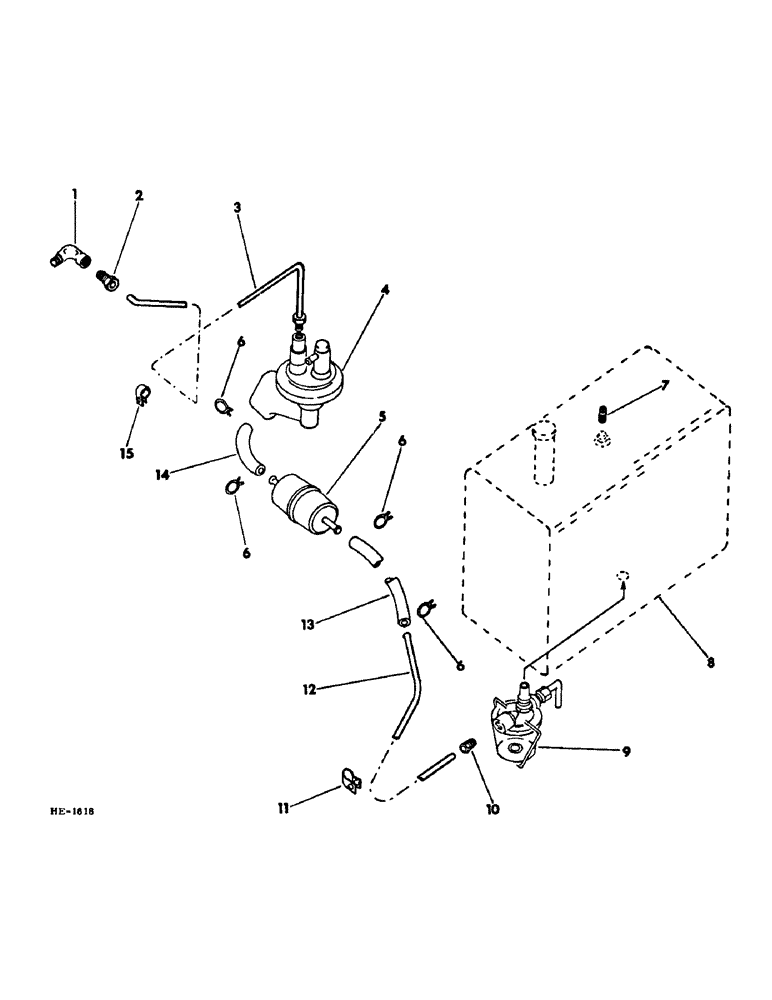

Запчасти Case IH 275 (E-12) - FUEL SYSTEM, FUEL LINES (02) - FUEL SYSTEM

1

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" - 90 degree engine carburetor

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 5/16" pump to carburetor tube

1шт.

3

827092C1

TUBE

engine fuel, Serial Range: pump-carburetor

1шт.

4

827274C1

PUMP

engine fuel (also refer to section "C" of this parts catalog)

1шт.

5

417917C91

FILTER

engine fuel

1шт.

6

215761R1

HOSE CLAMP,#9, 9/16", Spring

CLAMP, fuel hose

4шт.

7

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq-hd fuel tank pipe

1шт.

8

596448R1

TANK, engine fuel (for component parts of this assembly refer to "FUEL TANK" in section "E" of this parts catalog)

1шт.

9

369988R91

FILTER CARTRIDGE

STRAINER, engine fuel (for component parts of this assembly refer to "FULL STRAINER" in section "E" of this parts catalog)

1шт.

10

19985R1

TUBE NUT,1/2"-20

NUT, 5/16" coupling w/nylon sleeve

1шт.

11

179148

SET OF BELTS

CLAMP, fuel tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

827091C1

TUBE, fuel strainer to fuel filter hose 0.313" OD, 12.6, 11" Length

1шт.

13

827145C1

HOSE

fuel filter

1шт.

14

850437C1

HOSE, fuel filter to engine fuel pump

1шт.

15

192107

CLAMP

CLIP, pump to carburetor closed

1шт.
