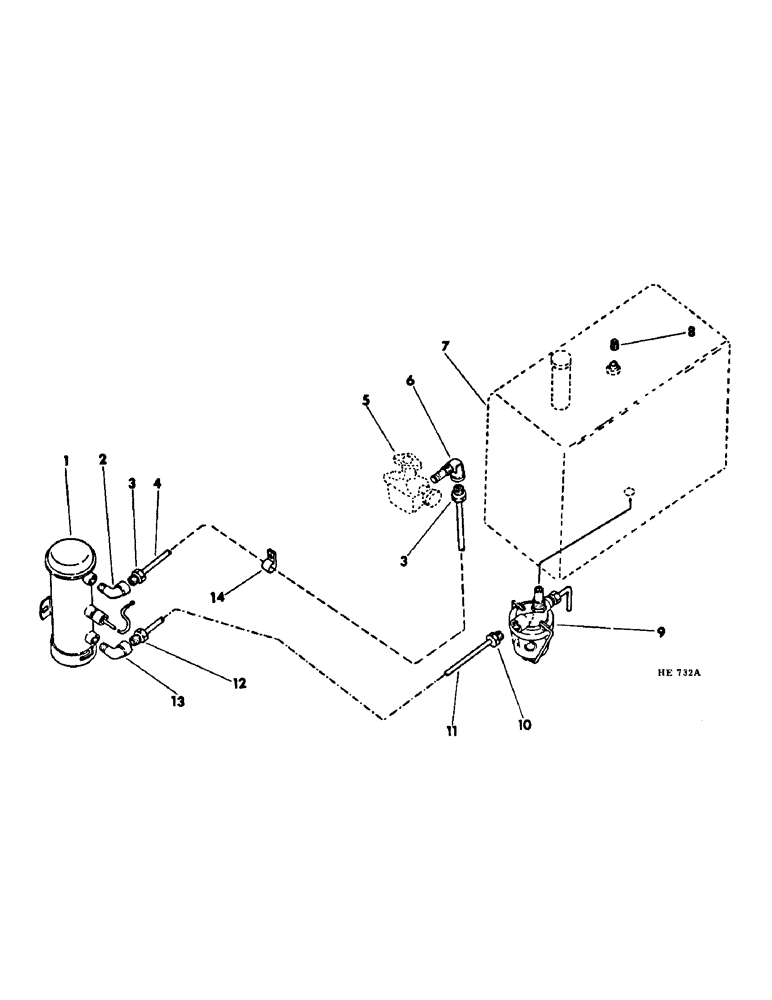

Запчасти Case IH 275 (E-10) - FUEL SYSTEM, FUEL LINES (02) - FUEL SYSTEM

1

394327R92

PUMP

12 volt electric fuel

1шт.

180018

CONNECTING LINK

1/4 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" pump to carburetor tube

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, 5/16" pump to carburetor tube

2шт.

4

599715R1

TUBE, electric fuel pump to engine carburetor (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 2101 to machine serial No. 4000)

1шт.

4

599712R1

TUBE, electric fuel pump to engine carburetor (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 451 to machine serial No. 2000)

1шт.

5

CARBURETOR, gasoline engine fuel (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000) (for component parts of this assembly refer to the applicable engine carburetor in SECTION E of parts catalog ENG-1)

1шт.

5

CARBURETOR, gasoline engine fuel (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 2000) (for component parts of this assembly refer to the applicable engine carburetor in SECTION F of parts catalog ENG-1)

1шт.

6

ELBOW & SCREEN, engine carburetor (for 275 Windrower refer to ENG-1 parts catalog, section E) (for 375 Windrower refer to ENG-1 parts catalog, section F)

1шт.

7

596448R1

TANK, engine fuel (for component parts of this assembly refer to "FUEL TANK" in section E of this parts catalog)

1шт.

8

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq-hd fuel tank pipe

1шт.

9

369988R91

FILTER CARTRIDGE

STRAINER, engine fuel (for component parts of this assembly refer to "FUEL STRAINER" in section E of this parts catalog)

1шт.

10

19985R1

TUBE NUT,1/2"-20

NUT, w/nylon insert, fuel strainer

1шт.

11

599714R1

TUBE, electric fuel pump to fuel strainer (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 2101 to machine serial No. 4000) 0.313" OD, 24.2, 6.7" Length

1шт.

11

599712R1

TUBE, electric fuel pump to fuel strainer (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 451 to machine serial No. 2000)

1шт.

12

222-503

TUBE NUT,1/2"-20

NUT, 5/16" pump to fuel strainer tube

1шт.

13

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" electric fuel pump to fuel strainer tube

1шт.

14

105246

COLLAR CLAMP

CLAMP, pump to carburetor tube (275 Windrower)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

140579

CLIP, pump to carburetor tube (2 used on 275 Windrower) (3 used on 375 Windrower)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (1 used per CLIP)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 used per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.
