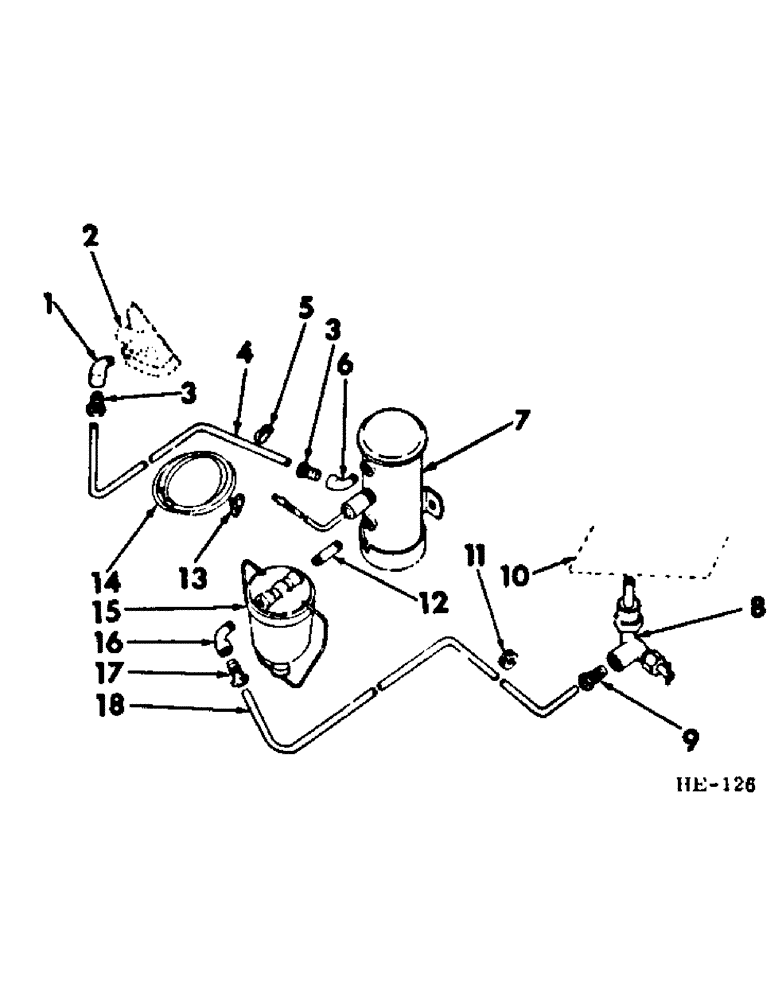

Запчасти Case IH 275 (E-06) - FUEL SYSTEM, FUEL LINES (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
5/16" carburetor inlet
1шт.
2
CARBURETOR, gasoline engine (for component parts of this assembly refer to applicable engine carburetor in section "E" of the ENG-1 parts catalog)
1шт.
3
222-503
TUBE NUT,1/2"-20
NUT, 5/16" fuel pump to engine carburetor tube
2шт.
4
TUBE, 5/16" OD x 33-1/2" flexible nylon fuel pump to engine carburetor (dealer to cut & supply from bulk stock - 936761R1 is part number for 1 foot of tube)
1шт.
5
105246
COLLAR CLAMP
CLAMP, fuel pump to engine carburetor tube closed
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1/4 x 5/8"
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
6
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
5/16" fuel pump
1шт.
7
394327R92
PUMP
12 volt electric fuel
1шт.
180018
CONNECTING LINK
1/4 x 5/8"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
8
61650D
VALVE
BODY, fuel tank drain valve
1шт.
9
19985R1
TUBE NUT,1/2"-20
NUT, nylon insert tube
1шт.
10
595516R91
TANK, fuel (for component parts of this assembly refer to "FUEL TANK" in section "E" of this parts catalog)
1шт.
11
117960
GROMMET,5/16" ID x .719" x .188"
fuel tube rubber
1шт.
12
192032
NIPPLE, 1/8 x 3/4" fuel pump to fuel strainer
1шт.
13
119702R1
CLIP
electric fuel pump to engine coil cable
2шт.
14
595518R11
CABLE, electric fuel pump to engine coil
1шт.
15
614692R91
FILTER
STRAINER, fuel (for component parts of this assembly refer to "FUEL STRAINER" in section "E" of this parts catalog)
1шт.
16
24847H
ELBOW,90 Degree x 1/8" NPT x 1/2"-20
5/16" fuel strainer
1шт.
17
222-503
TUBE NUT,1/2"-20
NUT, 5/16" fuel strainer to fuel pump tube
1шт.
18
TUBE, 5/16 O.D. x 28-1/2" flexible nylon fuel shut-off valve to electric fuel pump (dealer to cut & supply from bulk stock - 936761R1 is part number for 1, Serial Range: foot-tube
1шт.
