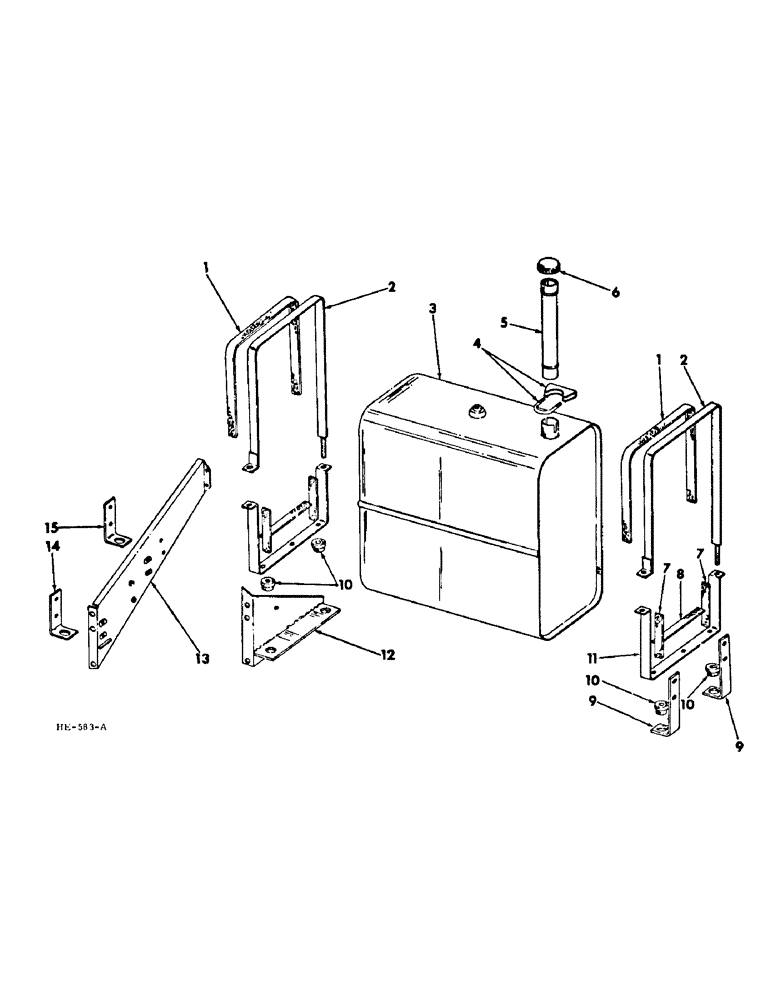

Запчасти Case IH 275 (E-04) - FUEL SYSTEM, FUEL TANK (02) - FUEL SYSTEM

1

PAD, 1/ x 43" in length 3 ply canvas webbing fuel tank hold down strap (dealer to cut & supply from 50 ft roll - 990538R1 is part number or 1 foot of pad)

2шт.

2

596447R11

STRAP, fuel tank hold down (includes 1 - 990538R1, PAD)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

3

596448R1

TANK, fuel

1шт.

4

170572R91

CLAMP

fuel tank filler neck (includes 2 - 120368, NUTS & 2 - 120214, LOCKWASHERS0

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

596449R1

NECK, fuel tank filler

1шт.

6

67097H

CAP

fuel tank

1шт.

7

PAD, 1 x 6" in length 3 ply canvas webbing fuel tank bracket (dealer to cut & supply from 50 ft roll - 990538R1 is part number for 1 foot of pad)

4шт.

8

PAD, 1 x 11" in length 3 ply canvas webbing fuel tank bracket (dealer to cut & supply from 50 ft roll - 990538R1 is part number for 1 foot of pad)

2шт.

9

596444R1

ANGLE, fuel tank rear support

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

271928R1

GROMMET

MOUNT, bracket rubber

4шт.

11

596445R11

BRACKET, fuel tank (includes 2 - 6" PAD & 1 - 11" PAD)

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" type 1 crg

4шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

12

596438R1

BRACKET, fuel tank front support (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2554

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

12

825415C1

SUPPORT, fuel tank front (for use on 275 Windrower built w/machine serial No. 2554 & since)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

13

596441R1

BRACKET, fuel tank front support (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

13

823721C1

SUPPORT, fuel tank front (for use on 375 Windrower, built w/machine serial No. 701 & since)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

14

596443R1

ANGLE, fuel tank front support (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

596443R1

ANGLE, fuel tank front support LH (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

823683C1

ANGLE, fuel tank front support RH (for use on 375 Windrower, built w/machine serial No. 701 & since)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
