(E-03[A]) - FUEL SYSTEM, FUEL STRAINER

Запчасти Case IH 275 (E-03[A]) - FUEL SYSTEM, FUEL STRAINER (02) - FUEL SYSTEM

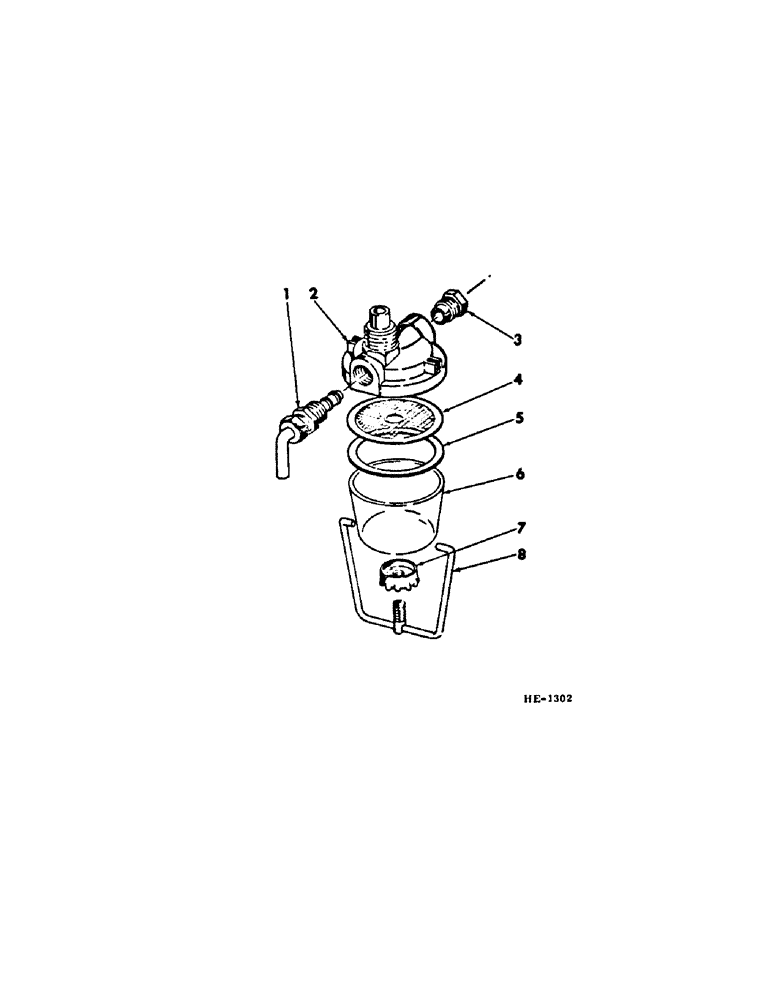

Схема запчастей Case IH 275 - (E-03[A]) - FUEL SYSTEM, FUEL STRAINER (02) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

259403R91

COCK

STEM, fuel strainer

1шт.

2

BODY, fuel strainer (NSS) (for service order 1 - 369988R91, STRAINER)

1шт.

3

19985R1

TUBE NUT,1/2"-20

NUT, 5/16" coupling w/nylon sleeve

1шт.

4

49923D

FILTER SCREEN

SCREEN, fuel strainer

1шт.

5

360679R1

GASKET

strainer

1шт.

6

357958R1

BOWL

fuel strainer

1шт.

7

50061D

NUT

strainer bowl bail

1шт.

8

49947D

COLLAR CLAMP

BAIL, strainer bowl

1шт.

Выбрано товаров: 8
