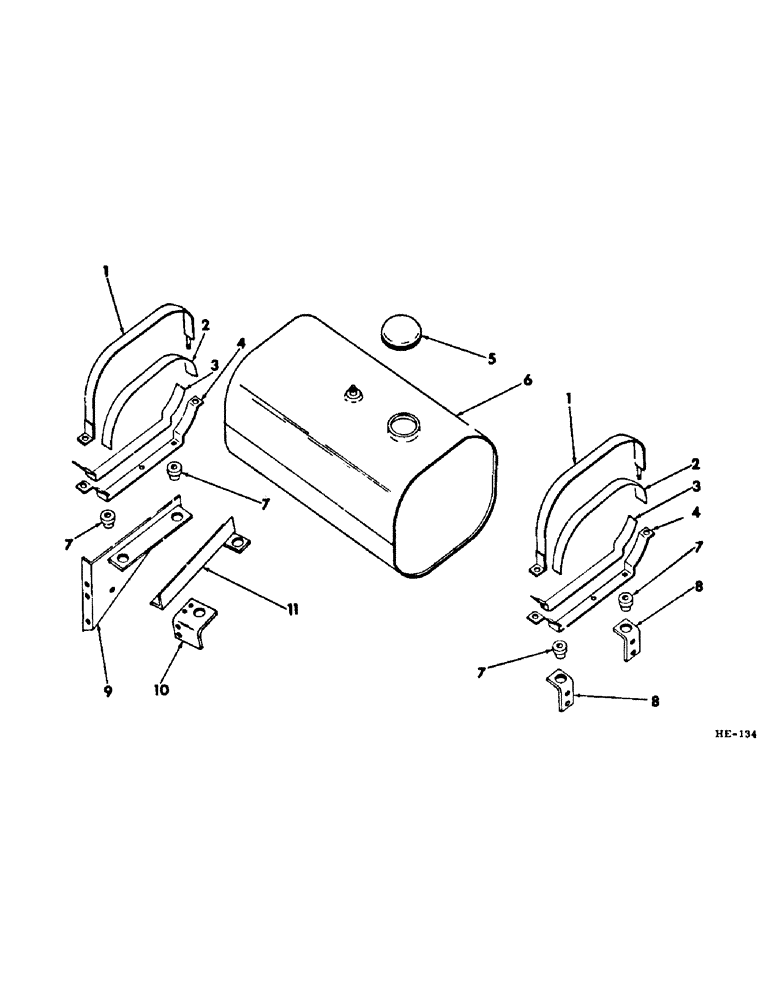

Запчасти Case IH 275 (E-02) - FUEL SYSTEM, FUEL TANK AND MOUNTING (02) - FUEL SYSTEM

1

595515R11

STRAP, fuel tank hold down (includes fuel tank PADS)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

PAD, fuel tank hold down strap 3 ply canvas webbing 1 x 34" (dealer to cut to length from bulk stock part number 990538R1)

2шт.

3

PAD, fuel tank bracket 3 ply canvas webbing 1 x 19" in length (dealer to cut to length from bulk stock part number 990538R1)

2шт.

4

595513R1

BRACKET, fuel tank

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" crg

4шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

5

612650R1

CAP

fuel tank filler

1шт.

6

595516R91

TANK, fuel (includes 1 - 612650R1, CAP)

1шт.

7

271928R1

GROMMET

MOUNT, fuel tank bracket rubber

4шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" crg

4шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

4шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

8

595512R1

ANGLE, fuel tank rear support

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

595507R11

BRACKET, fuel tank front support (for use on 275 Windrower)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

595509R1

ANGLE, fuel tank front support mounting (for use on 375 Windrower)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

595510R11

BRACKET, fuel tank front support (for use on 375 Windrower)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
