Запчасти Case IH 275 (D-33[A]) - D206 DIESEL ENGINE, EXHAUST MANIFOLD (01) - ENGINE

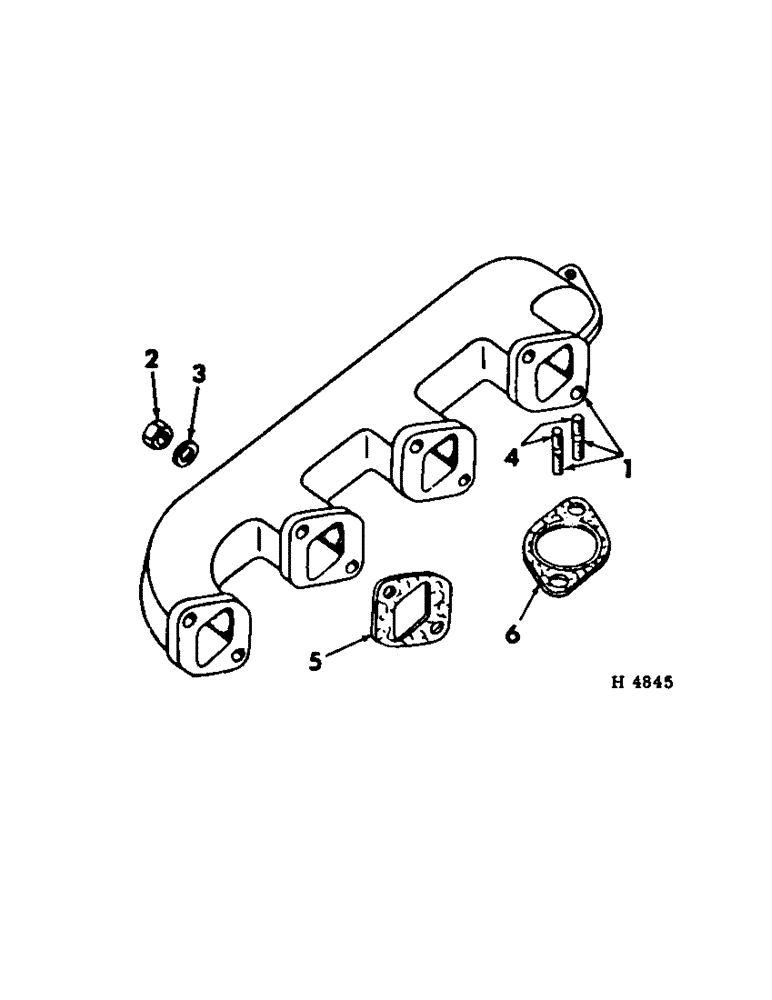

Схема запчастей Case IH 275 - (D-33[A]) - D206 DIESEL ENGINE, EXHAUST MANIFOLD (01) - ENGINE

Артикул

Название

Примечание

Количество

1

3055276R12

MANIFOLD ASSY

MANIFOLD w/STUDS, exhaust

1шт.

2

103026

NUT,3/8"-24, G5

8шт.

3

20285H

WASHER

13/32 x 3/4 x 11 ga

8шт.

4

3055663R1

STUD

2шт.

5

3132434R1

MANIFOLD GASKET,0.5mm Thk

4шт.

6

3057485R1

SEAL

1шт.

3144169R91

SKELETON ENGINE

ENGINE, 206 skeleton

1шт.

For service on 275 Windrower, order 1 - 827143C91 PULLEY, for service on 375 Windrower, order 1 - 827142C91 PULLEY

1шт.

3132139R94

ENGINE, complete service composed of all engine parts except the following, alternator, fan belt, fan blade

1шт.

3136674R2

BLADE

PRODUCT GRAPHIC, "WARNING" (for use w/dual injection pump)

1шт.

3136147R1

NAME PLATE (blank) (for use w/fuel injection pump)

1шт.

Выбрано товаров: 11
