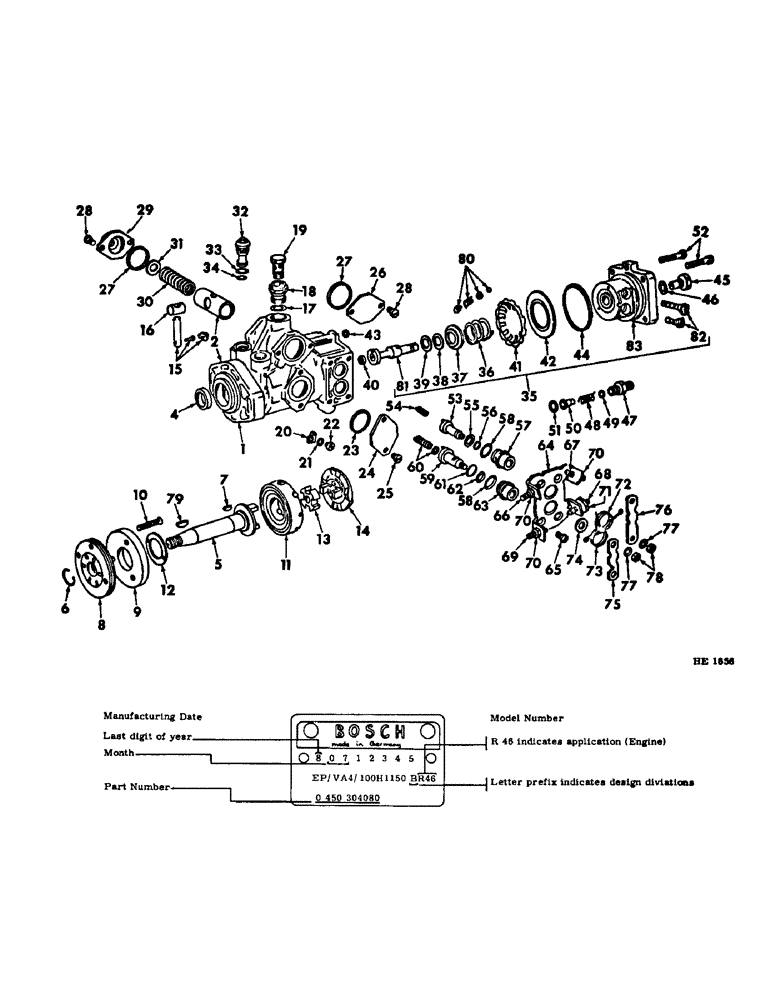

Запчасти Case IH 275 (D-30) - D206 DIESEL ENGINE, FUEL INJECTION PUMP, BOSCH, ENGINE SERIAL NUMBER DF2D020070 AND SINCE (01) - ENGINE

3144383R91

PUMP, FUEL INJECTION

(Bosch model CR 46) (includes all parts listed unless otherwise noted)

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x .748 x.098

2шт.

1

HOUSING, (NSS) (for service order 1 - 3078598R91 HOUSING w/ADV. PISTON)

1шт.

2

3078598R91

HOUSING

w/ADV. PISTON, pump

1шт.

3

PISTON, (NSS) (for service order 1 - 3078598R91 HOUSING w/ADV. PISTON)

1шт.

4

3078355R1

SEAL

OIL SEAL, drive shaft

1шт.

5

3078473R1

SHAFT

drive

1шт.

6

3078474R1

RING

retaining

1шт.

7

3132395R1

KEY

WOODRUFF drive shaft rear

1шт.

8

3078475R91

PUMP

charge

1шт.

9

3078476R1

RING

support

1шт.

10

3078477R1

BOLT,CSK

support ring

2шт.

11

3078478R91

RETAINER

roller assembly

1шт.

12

3078479R91

WASHER, thrust roller retainer

1шт.

13

3059007R1

DISC

cam face cross type

1шт.

14

3078480R1

CAM

face

1шт.

15

3078481R1

PIN

automatic advance connecting

1шт.

16

3078482R1

SLIDE

R, advance piston

1шт.

17

3078483R1

O-RING,2.5mm Thk x 15mm ID

union

1шт.

18

3078484R1

VALVE

overflow

1шт.

19

3059086R1

BANJO BOLT

SCREW, pump housing inlet union

1шт.

20

3132598R1

INDICATOR

POINTER, timing

1шт.

21

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, timing pointer lock

1шт.

22

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

timing pointer

1шт.

23

3078485R1

RING

timing window packing

1шт.

24

3078486R1

COVER

timing window

1шт.

25

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

timing window cover

2шт.

26

3078486R1

COVER

PLATE, advance housing

1шт.

27

3078488R1

RING

plate packing

2шт.

28

931392R1

SCREW

advance housing plate and cover

4шт.

29

3078489R1

COVER

advance housing

1шт.

30

3078608R1

SPRING

advance piston

1шт.

31

3078528R1

THRUST WASHER

advance thrust 0.6 mm

1шт.

31

3078529R1

THRUST WASHER

advance thrust 0.8 mm

1шт.

31

3078530R1

THRUST WASHER

advance thrust 1.0 mm

1шт.

31

3078531R1

THRUST WASHER

advance thrust 1.2 mm

1шт.

31

3078532R1

THRUST WASHER

advance thrust 1.4 mm

1шт.

31

3078533R1

THRUST WASHER

advance thrust 3.0 mm

1шт.

32

3078847R1

VALVE

REGULATOR VALVE

1шт.

33

3078358R1

O-RING

regulator valve

1шт.

34

3078535R1

O-RING

regulator valve

1шт.

35

3078848R91

DISTRIBUTOR HEAD

HEAD ASSY, pump, composed of, (NSS) (1) plunger, (NSS) (1) plunger, (NSS) (1) throttle, (1) washer 3077540R1, (1) washer 3077537R1, (1) seat# 3078516R1, (1) spring 3078515R1, (1) washer 3078576R1, (1) filter 3078578R1, (1) O-ring 3078366R1, (NSS) (1) head

1шт.

36

3078515R1

SPRING

plunger

1шт.

37

3078516R1

SEAT

plunger spring

1шт.

38

3078537R1

WASHER

plunger 1.65 mm

1шт.

38

3078571R1

WASHER

plunger 2.35 mm

1шт.

39

3078540R1

WASHER

plunger 1.35 mm

1шт.

39

3078541R1

WASHER

plunger 1.6 mm

1шт.

39

3078542R1

WASHER

plunger 1.85 mm

1шт.

40

3078761R1

WASHER

plunger 1.80 mm

1шт.

40

3078763R1

WASHER

plunger 1.84 mm

1шт.

40

3078765R1

WASHER

plunger 1.88 mm

1шт.

40

3078767R1

WASHER

plunger 1.92 mm

1шт.

40

3078769R1

WASHER

plunger 1.96 mm

1шт.

40

3078771R1

WASHER

plunger 2.00 mm

1шт.

40

3078773R1

WASHER

plunger 2.04 mm

1шт.

40

3078775R1

WASHER

plunger 2.08 mm

1шт.

40

3078777R1

WASHER

plunger 2.12 mm

1шт.

40

3078779R1

WASHER

plunger 2.16 mm

1шт.

40

3078781R1

WASHER

plunger 2.20 mm

1шт.

40

3078783R1

WASHER

plunger 2.24 mm

1шт.

40

3078785R1

WASHER

plunger 2.28 mm

1шт.

40

3078787R1

WASHER

plunger 2.32 mm

1шт.

40

3078789R1

WASHER

plunger 2.36 mm

1шт.

40

3078791R1

WASHER

plunger 2.40 mm

1шт.

40

3078793R1

WASHER

plunger 2.44 mm

1шт.

40

3078795R1

WASHER

plunger 2.48 mm

1шт.

40

3078797R1

WASHER

plunger 2.52 mm

1шт.

40

3078799R1

WASHER

plunger 2.56 mm

1шт.

40

3078801R1

WASHER

plunger 2.60 mm

1шт.

40

3078803R1

WASHER

plunger 2.64 mm

1шт.

40

3078805R1

WASHER

plunger 2.68 mm

1шт.

40

3078807R1

WASHER

plunger 2.72 mm

1шт.

40

3078809R1

WASHER

plunger 2.76 mm

1шт.

40

3078811R1

WASHER

plunger 2.80 mm

1шт.

40

3078813R1

WASHER

plunger 2.84 mm

1шт.

40

3078815R1

WASHER

plunger 2.88 mm

1шт.

41

3078576R1

SPRING WASHER

spring

1шт.

42

3078578R1

FILTER, FUEL

FILTER

1шт.

43

3078487R1

O-RING

packing

1шт.

44

3078366R1

O-RING

distributor head

1шт.

45

3078514R1

PLUG

distributor head

1шт.

46

3132407R1

O-RING

distributor head packing

1шт.

47

3059067R1

HOLDER

delivery valve

4шт.

48

3132408R1

SPRING

delivery valve

4шт.

49

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

50

3078370R1

VALVE

delivery

4шт.

51

3078362R1

SEALING WASHER

delivery valve

4шт.

52

3078600R1

SCREW

pump to distributor head

4шт.

53

3078517R1

SHAFT

throttle

1шт.

54

3078555R1

SPRING

throttle

1шт.

55

3078519R1

WASHER

throttle shaft

1шт.

56

3078354R1

O-RING,2mm Thk x 6.5mm ID

1шт.

57

3078556R1

BUSHING

throttle shaft

1шт.

58

785602R1

O-RING

control plunger and throttle shaft bushing

2шт.

59

3078521R1

SHAFT

control plunger

1шт.

60

3078563R91

KIT

PACKAGE, control plunger spring

1шт.

61

3078523R1

WASHER

control plunger shaft

1шт.

62

3078363R1

O-RING

control plunger shaft

1шт.

63

3078524R1

BUSHING

control plunger shaft

1шт.

64

3078557R1

PLATE

stop

1шт.

65

931320R1

SCREW,M6 x 12mm, Cl 8.8

stop plate

4шт.

66

3136136R1

SCREW

stop

1шт.

67

3132885R1

BOLT

stop

1шт.

68

3132251R1

STOP LOCK

SCREW, stop

1шт.

69

3059074R1

SCREW

stop

1шт.

70

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

stop screw M6, Cl 8

3шт.

71

3059096R1

NUT

hex

1шт.

72

3132588R1

SPRING

throttle shaft

1шт.

73

3132589R1

SPRING

control plunger shaft

1шт.

74

3059076R1

WASHER

control plunger shaft

1шт.

75

3059077R1

LEVER

control plunger (opt w/3059078R1 LEVER)

1шт.

75

3059078R1

LEVER

control plunger (opt w/3132590R1 LEVER)

1шт.

76

3132590R1

LEVER

throttle (opt w/3132591R1 LEVER)

1шт.

76

3132591R1

LEVER

throttle (opt w/3132590R1 LEVER)

1шт.

77

933987R1

LOCK WASHER,M6

WASHER, throttle and control plunger lever lock

2шт.

78

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

throttle and control plunger lever M6, Cl 8

2шт.

79

3078371R1

WOODRUFF KEY

KEY, WOODRUFF drive shaft

1шт.

80

3078365R91

SET, relief valve

1шт.

81

PLUNGER, (NSS) (for service order 1 - 3078848R91, HEAD ASSY)

1шт.

82

THROTTLE, control (NSS) (for service order 1 - 3078848 HEAD ASSY)

1шт.

83

HEAD, (NSS) (for service order 1 - 3078848R91 HEAD ASSY)

1шт.

3078526R91

GASKET KIT

PACKAGE, injection pump gasket (composed of items 17, 23, 27, 33, 34, 43, 44, 56, 58 and 62)

1шт.
