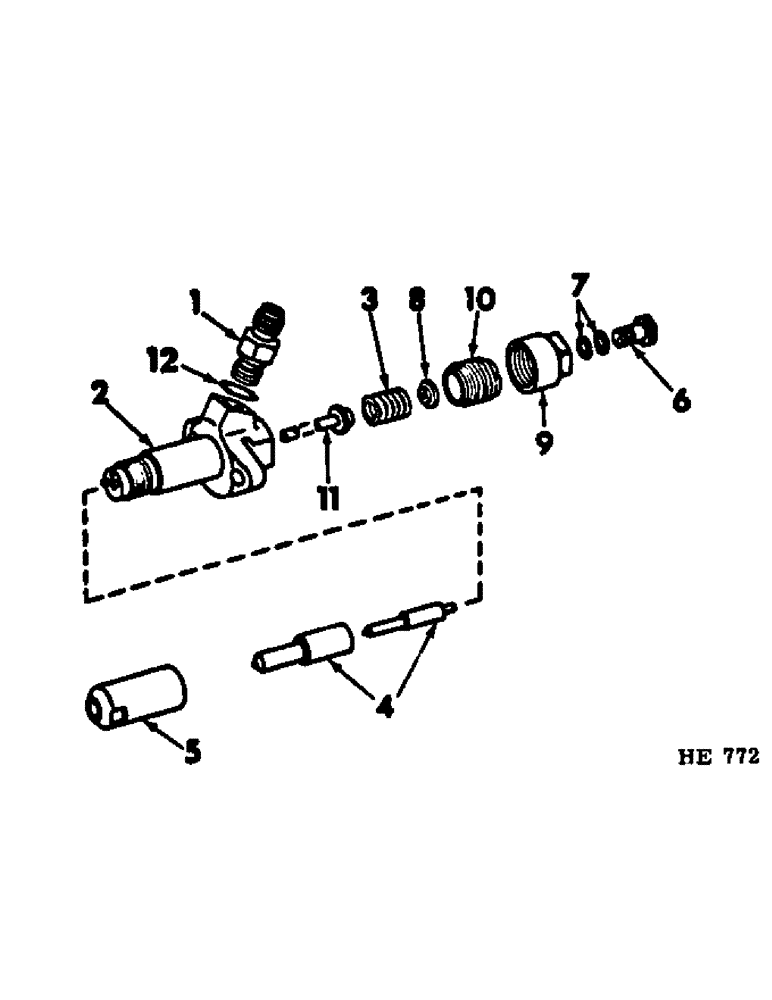

Запчасти Case IH 275 (D-29) - D206 DIESEL ENGINE, FUEL INJECTION NOZZLE (01) - ENGINE

*

HOLDER w/NOZZLE ASSY, injection (KBL 90-S 81/4 (includes all parts listed unless otherwise noted) (for service order 1 - 3055422R92, HOLDER w/NOZZLE ASSY)

3шт.

120368

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

6шт.

3055422R92

HOLDER

HOLDER w/NOZZLE ASSY, injection (KBL 90-S 104/4) (includes all parts listed unless otherwise noted)

3шт.

735252C91

REMAN-FUEL INJECTOR

Remanufactured Nozzle

3шт.

1934193C1

CORE-FUEL INJECTOR

Return Number, Injection Nozzle

3шт.

120368

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

6шт.

*

HOLDER w/o NOZZLE ASSY (KBL 90-S 81/4) (includes all parts listed unless otherwise noted) (for service order 1 - 3055298R92 HOLDER w/o NOZZLE ASSY)

3шт.

3055298R92

NOZZLE HOLDER

HOLDER w/o NOZZLE ASSY, injection (KBL 90-S 104/4) (includes all parts listed unless otherwise noted)

3шт.

1

3056940R1

CONNECTOR, ELEC

SPARE PART UNION, injection pipe connection

1шт.

2

BODY, injection nozzle holder (for service order 1 - 3055298R92, HOLDER w/o NOZZLE ASSY)

1шт.

3

759844R1

SPRING

SPRING

1шт.

4

3055426R91

NOZZLE CAP

NOZZLE, injection (not part of 3055298R92)

1шт.

5

3056945R1

NUT

NUT, nozzle cup (for use w/KBL 90-S 81/4 HOLDER)

1шт.

5

3133042R1

NOZZLE HOLDER

NUT, nozzle cap (for use w/KBL 90-S 104/4 HOLDER)

1шт.

6

3056944R1

SCREW

SCREW, hollow (for use w/KBL 90-S 81/4 HOLDER)

1шт.

6

3132999R1

HOLLOW SCREW

SCREW, hollow (for use w/KBL 90-S 104/4 HOLDER)

1шт.

7

3053133R1

SEALING RING,M8 x 11.5 x 1

RING, packing

2шт.

8

787049R1

CUP

CUP, guide

1шт.

9

3056943R1

CROWN NUT

NUT, nozzle holder cap

1шт.

10

3132998R1

SCREW

SCREW, spring cap adjusting

1шт.

11

3056939R91

SPINDLE

PIN, thrust

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

WASHER, packing

1шт.
