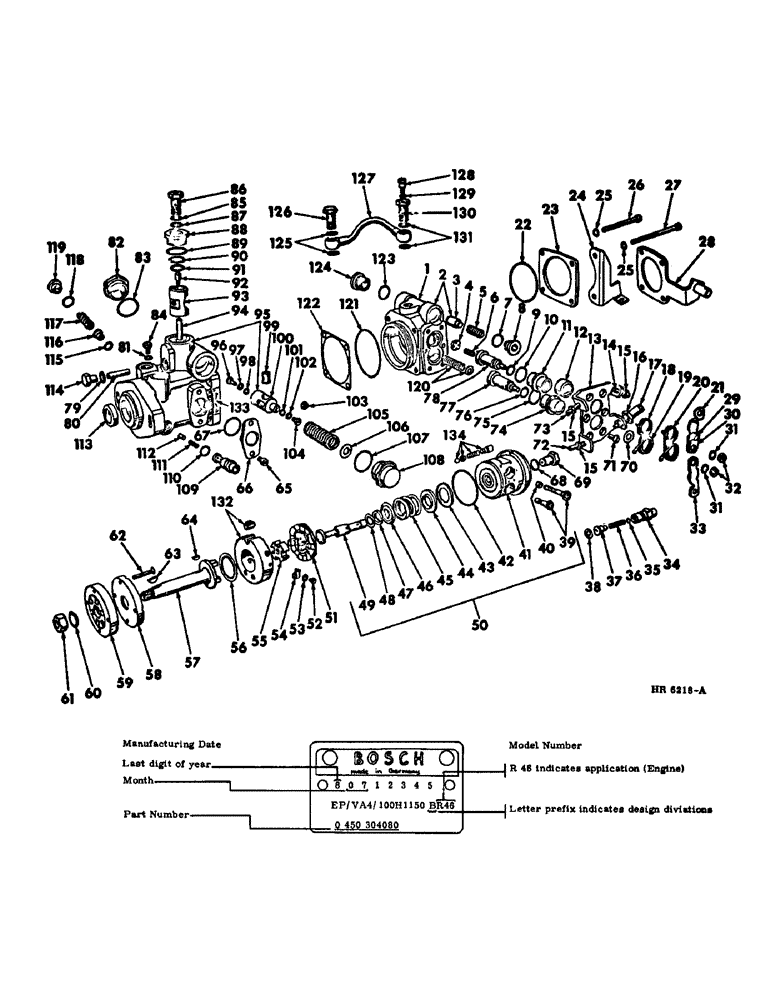

Запчасти Case IH 275 (D-24) - D206 DIESEL ENGINE, FUEL INJECTION PUMP, BOSCH (01) - ENGINE

PUMP, fuel injection Bosch model R, AR or BR (includes all parts listed below unless otherwise noted) (for service prior to engine serial No. DF2D020070 order 1 - 3144383R91 PUMP ASSY, 1 - 3144223R91 TUBE ASSY, 1 - 3144657R91 PACKAGE)

1шт.

120376

NUT,5/16"-18, G5

2шт.

Not part of pump assembly.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not part of pump assembly.

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 x 748 x .098

2шт.

Not part of pump assembly.

1шт.

1

HOUSING, pump (NSS) (for service order 1 - 3132402R1 HOUSING w/PISTON ASSY)

1шт.

2

3132402R1

HOUSING

w/ PISTON ASSY, pump

1шт.

3

PISTON (NSS) (for service order 1 - 3132402R1 HOUSING w/PISTON ASSY)

1шт.

4

3132584R1

DISC

throttle shaft cross type

1шт.

5

3132277R1

SPRING

accumulator piston

1шт.

6

3132256R1

VALVE SPRING

SPRING, throttle

1шт.

7

785602R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

8

3136107R1

PLUG

w/STUD, accumulator piston

1шт.

9

3078354R1

O-RING,2mm Thk x 6.5mm ID

(part of 3059094R93 PACKAGE)

1шт.

10

785602R1

O-RING

(part of 3059094R93 PACKAGE)

1шт.

11

3132587R1

BUSHING

control shaft

1шт.

12

Not use in this application

1шт.

13

3136110R1

PLATE

stop

1шт.

14

3132885R1

BOLT

stop

1шт.

15

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

stop screw M6, Cl 8

3шт.

16

3059096R1

NUT

stop screw

1шт.

17

3132251R1

STOP LOCK

SCREW, stop

1шт.

18

3132588R1

SPRING

throttle shaft torsion

1шт.

19

3132589R1

SPRING

control plunger shaft torsion

1шт.

20

Not used in this application

1шт.

21

3132590R1

LEVER

throttle (opt w/3132591R1 LEVER)

1шт.

21

3132591R1

LEVER

throttle (opt w/3132590R1 LEVER)

1шт.

22

3078364R1

O-RING

O-RING, (part of 3059094R93 PACKAGE)

1шт.

23

3059083R1

PLATE, intermediate housing

1шт.

24

Not used in this application

1шт.

25

933987R1

LOCK WASHER,M6

WASHER, lock

4шт.

26

931324R1

HEX SOC SCREW,M6 x 70mm, Cl 10.9

pump to intermediate housing

2шт.

27

931324R1

HEX SOC SCREW,M6 x 70mm, Cl 10.9

pump to intermediate housing

2шт.

28

Not used in this application

1шт.

29

Not used in this application

1шт.

30

Not used in this application

1шт.

31

933987R1

LOCK WASHER,M6

WASHER, lever lock

2шт.

32

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

lever M6, Cl 8

2шт.

33

3059077R1

LEVER

control plunger (opt w/3059078R1 LEVER)

1шт.

33

3059078R1

LEVER

control plunger (opt w/3059077R1 LEVER)

1шт.

34

3059067R1

HOLDER

delivery valve

4шт.

35

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

delivery valve

4шт.

36

3132408R1

SPRING

delivery valve

4шт.

37

3132879R1

VALVE

delivery (less flat)

4шт.

37

3132931R1

VALVE, delivery (w/flat) (for use for improvement of delivery valve)

4шт.

38

3078362R1

SEALING WASHER

delivery valve (part of 3059093R91 PACKAGE)

4шт.

39

THROTTLE, (NSS) (for service order 1 - 3078544R91 ASSY)

1шт.

40

BUSHING, (NSS) (for service order 1 - 3078544R91 ASSY)

1шт.

41

HEAD, (NSS) (for service order 1 - 3078544R91 ASSY)

1шт.

42

3078361R1

O-RING

head (part of 3059094R93 PACKAGE)

1шт.

43

Not used in this application

1шт.

44

3132379R1

NUT

SEAT, spring plunger (pump AR 46)

1шт.

44

3136098R1

SEAT

spring plunger (pump BR 46)

1шт.

45

3132257R1

SPRING

plunger

1шт.

46

3132262R1

CUP

SEAT, spring plunger 5.0 mm (pump AR 46)

1шт.

46

3136092R1

SEAT

5.0 mm (pump BR 46)

1шт.

46

3132263R1

CUP

SEAT, 5.2 mm (pump AR 46)

1шт.

46

3136093R1

SEAT

5.2 mm (pump BR 46)

1шт.

46

3132264R1

WASHER

SEAT, 5.4 mm (pump AR 46)

1шт.

46

3136094R1

CUP

SEAT, 5.4 mm (pump BR 46)

1шт.

46

3132265R1

WASHER

SEAT, 5.6 mm (pump AR 46)

1шт.

46

3136095R1

SEAT

5.6 mm (pump BR 46)

1шт.

46

3132266R1

CUP

SEAT, 5.8 mm (pump AR 46)

1шт.

46

3136096R1

SEAT

5.8 mm (pump BR 46)

1шт.

46

3132267R1

SEAT, 6.0 mm (pump AR 46)

1шт.

46

3136097R1

SEAT

6.0 mm (pump BR 46)

1шт.

46

3132236R1

SEAT, 6.2 mm (pump AR 46)

1шт.

46

3136394R1

SEAT

6.2 mm (pump BR 46)

1шт.

47

3136091R2

WASHER

pump plunger

1шт.

48

3132387R1

SHIM

WASHER, pump lunger (AR 46)

1шт.

48

3136090R1

SPACER

WASHER, pump plunger (BR 46)

1шт.

49

PLUNGER, (NSS) (for service order 1 - 3078544R91 ASSY)

1шт.

50

3078544R91

DISTRIBUTOR HEAD

HEAD DISTRIBUTOR w/PLUNGER THROTTLE AND CONTROL PLUNGER

1шт.

51

3059008R2

CAM

face

1шт.

52

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

timing pointer

1шт.

53

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER, timing pointer

1шт.

54

3132598R1

INDICATOR

POINTER, timing

1шт.

55

3059007R1

DISC

cam face cross-type

1шт.

56

3059006R1

WASHER

roller retainer thrust

1шт.

57

3059001R1

SHAFT

drive

1шт.

58

3059004R1

SUPPORT

RING, charge pump support

1шт.

59

3059003R91

PUMP

charge

1шт.

60

933996R1

LOCK WASHER,M12

WASHER, drive shaft lock

1шт.

61

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft M12 x 1.75, Cl 5

1шт.

62

3132364R1

SCREW

BOLT, support ring

4шт.

63

3078371R1

WOODRUFF KEY

KEY, WOODRUFF drive shaft

1шт.

64

3132395R1

KEY

WOODRUFF drive shaft rear

1шт.

65

931327R1

BOLT,M6 x 10mm, Cl 8.8

SCREW, timing window cover

2шт.

66

3059091R1

PLATE

COVER, timing window

1шт.

67

3054854R1

O-RING,2mm Thk x 20mm ID, 70 Duro

(part of 3059093R91 PACKAGE)

1шт.

68

3132407R1

O-RING

packing (part of 3059093R91 PACKAGE)

1шт.

69

3059063R2

PLUG

distributor head

1шт.

70

3059076R1

WASHER

plunger shaft control

1шт.

71

931320R1

SCREW,M6 x 12mm, Cl 8.8

stop plate

1шт.

72

3059074R1

SCREW

stop

1шт.

73

3132885R1

BOLT

stop (pump AR 46)

1шт.

73

3136136R1

SCREW

stop (pump BR 46)

1шт.

74

3059072R1

BUSHING

throttle shaft

1шт.

75

785602R1

O-RING

(part of 3059094R93 PACKAGE)

1шт.

76

3078363R1

O-RING

(part of 3059094R93 PACKAGE)

1шт.

77

3132260R2

SHAFT

control plunger

1шт.

78

3132583R1

SHAFT

throttle

1шт.

79

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing (Part of 3059093R91 PACKAGE) M10 x 13.5 x 1

1шт.

80

3132925R1

PIN

connecting (pump AR 46 to manufacturing date 800)

1шт.

80

3132576R1

PIN

connecting (pump AR 46 manufacturing date 801 and since)

1шт.

80

3132576R1

PIN

connecting (pump BR 46)

1шт.

81

Not used in this application

1шт.

82

3059020R1

PLUG

advance housing

1шт.

83

3078357R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

84

Not used in this application

1шт.

85

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

(Part of 3059093R91 Package) M12 x 18 x 1.5

1шт.

86

3132412R1

VALVE

overflow

1шт.

87

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

(Part of 3059093R91 Package) M12 x 18 x 1.5

1шт.

88

3059014R1

UNION

advance housing adapter

1шт.

89

3078356R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

90

933845R1

RING,M20, Int

RING, retaining (pump AR 46 manufacturing date 801 and since)

1шт.

90

933845R1

RING,M20, Int

RING, retaining (pump BR 46)

1шт.

91

3132884R1

WASHER

advance piston (pump AR 46 manufacturing date 801 and since)

1шт.

91

3132884R1

WASHER

advance piston (pump BR 46)

1шт.

92

3132883R1

PLUG

PIN, advance piston (pump AR 46 manufacturing date 801 and since)

1шт.

92

3132883R1

PLUG

PIN, advance piston (pump BR 46)

1шт.

93

3132924R1

PIN, automatic advance adjusting (for use w/pump AR 46 to manufacturing date 712 (for service order 1 - 3132400R1 PIN, 1 - 3132576 PIN, 1 - 3132578R1 PLUG, 1 - 3132883R1 PIN, 1 - 3132884R1 WASHER and 1 - 933845R1 RING)

1шт.

93

3132400R1

BOLT

PIN, automatic advance adjusting (for use w/pump AR 46 manufacturing date 801 and since)

1шт.

93

3132400R1

BOLT

PIN, automatic advance adjusting (pump BR 46)

1шт.

94

3059010R1

PIN

automatic advance connecting

1шт.

95

3059000R91

HOUSING

w/TIMING ADV. PISTON, pump (for use w/pump AR 46) (for service order 1 - 3136259R91 HOUSING ASSY 1 - 3136147R1 NAME PLATE 1 - 3136085R1 SPRING 1 - 3136087R1 PLUG, 1 - 3136111R1 WASHER and 2 - 790783R1 WASHER)

1шт.

95

3136259R91

HOUSING

w/TIMING ADV. PISTON, pump (for use w/pump BR 46) and (for use w/pump AR 46 w/X suffix)

1шт.

96

931322R1

SCREW,M5 x 8mm, Cl 8.8

advance piston (pump AR 46)

1шт.

97

933986R1

LOCK WASHER,M5

Advance piston (Pump AR 46) M5

1шт.

98

3132290R91

PACKAGE

advance piston shim (pump AR 46) composed of, (2) shim 3059016R1, (2) shim 3059017R1, (2) shim 3059018R1, (1) shim 3059019R1

1шт.

98

3059016R1

SHIM

advance piston 0.2 mm (pump AR 46)

1шт.

98

3059017R1

SHIM, advance piston 0.3 mm (pump AR 46)

1шт.

98

3059018R1

SHIM

advance piston 0.5 mm (pump AR 46)

1шт.

98

3059019R1

SHIM

advance piston 1.0 mm (pump AR 46)

1шт.

99

3132259R1

SLIDE

R, advance piston

1шт.

100

PISTON, (NSS) (for service order 3059000R91 HOUSING less X suffix) or (new service parts listed for to change pump AR 46 to AR 46 w/X suffix) or (3136259R91 HOUSING, for pump BR 46 and pump AR 46 w/X suffix)

1шт.

101

3132290R91

PACKAGE

advance piston shim, composed of, (2) shim 3059016R1, (2) shim 3059917R1, (2) shim 3059018R1, (1) shim 3059019R1

1шт.

101

3059016R1

SHIM

advance piston 0.2 mm (pump AR 46)

1шт.

101

3059017R1

SHIM, advance piston 0.3 mm (pump AR 46)

1шт.

101

3059018R1

SHIM

advance piston 0.5 mm (pump AR 46)

1шт.

101

3059019R1

SHIM

advance piston 1.0 mm (pump AR 46)

1шт.

102

933986R1

LOCK WASHER,M5

Advance piston (Pump AR 46) M5

1шт.

103

Not used in this application

1шт.

104

931322R1

SCREW,M5 x 8mm, Cl 8.8

advance piston (pump AR 46)

1шт.

105

3059022R1

SPRING, advance piston (pump AR 46)

1шт.

105

3136085R1

SPRING

advance piston (pump AR 46 w/X suffix and pump BR 46)

1шт.

106

3059023R1

SHIM

WASHER, advance piston 0.4 mm (pump AR 46 less X suffix)

1шт.

106

3059024R1

SHIM

WASHER, advance piston 0.8 mm (pump AR 46 less X suffix)

1шт.

106

3136111R1

WASHER

advance piston 1. mm (pump BR 46 and pump AR 46 w/X suffix)

1шт.

106

790783R1

WASHER

advance piston 0.5 mm (pump BR 46 and pump AR 46 w/suffix)

1шт.

106

3078460R1

SHIM

WASHER, advance piston 3.0 mm (pump BR 46 and pump AR 46 w/X suffix)

1шт.

107

3078357R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

108

3059021R1

PLUG

advance housing (pump AR 46)

1шт.

108

3136087R1

PLUG

advance housing (pump BR 46 and pump AR 46 w/X suffix)

1шт.

109

3059025R91

CARRIER

regulator valve

1шт.

110

3078358R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

111

3132255R1

SPRING

regulator valve piston

1шт.

112

3132366R1

PISTON

regulator valve 8.70 mm

1шт.

112

3132367R1

PISTON

8.75 mm

1шт.

112

3132368R1

PISTON

8.80 mm

1шт.

112

3059026R1

PISTON, 8.85 mm

1шт.

112

3059027R1

PISTON, 8.90 mm

1шт.

112

3059028R1

PISTON, 8.95 mm

1шт.

112

3059029R1

PISTON, 9.00 mm

1шт.

112

3059030R1

PISTON, 9.05 mm

1шт.

112

3059031R1

PISTON, 9.10 mm

1шт.

112

3059032R1

PISTON, 9.l5 mm

1шт.

112

3059033R1

PISTON, 9.20 mm

1шт.

112

3059034R1

PISTON

9.25 mm

1шт.

112

3132369R1

PISTON

9.30 mm

1шт.

112

3132370R1

PISTON, 9.35 mm

1шт.

112

3132371R1

PISTON

9.40 mm

1шт.

112

3132372R1

PISTON

9.45 mm

1шт.

112

3132373R1

PISTON

9.50 mm

1шт.

112

3132374R1

PISTON

9.55 mm

1шт.

112

3132375R1

PISTON

9.60 mm

1шт.

113

3078355R1

SEAL

pump

1шт.

114

3059015R1

PLUG

housing advance (for use w/pump AR 46 to manufacturing date 800)

1шт.

114

3132578R1

PLUG

housing advance (for use w/pump AR 46 manufacturing date 801 and since)

1шт.

114

3132578R1

PLUG

housing advance (pump BR 46)

1шт.

115

3078359R1

O-RING

(part of 3059094R93 PACKAGE)

1шт.

116

3132246R1

STOP

BUSHING, regulator valve

1шт.

117

3132280R1

SPRING

regulator valve outer

1шт.

118

3078358R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

119

3059038R1

PLUG

regulator valve

1шт.

120

3059071R1

PACKAGE, control plunger spring

1шт.

121

3078360R1

RING

packing (part of 3059094R93 PACKAGE)

1шт.

122

3059040R1

SHIM

intermediate housing 2.0 mm

1шт.

122

3132377R1

SHIM

0.24 mm

1шт.

122

3059041R1

SHIM

0.25 mm

1шт.

122

3132378R1

SHIM

0.29 mm

1шт.

122

3059042R1

DISC

SHIM, 0.3 mm

1шт.

122

3059043R1

SHIM

0.5 mm

1шт.

122

3059044R1

SHIM

0.6 mm

1шт.

122

3059045R1

SHIM

1.0 mm

1шт.

123

785602R1

O-RING

(part of 3059093R91 PACKAGE)

1шт.

124

3059052R1

PLUG

accumulator piston

1шт.

125

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

(Part of 3059093R91 Package) M12 x 18 x 1.5

2шт.

126

3132880R1

SCREW

pump housing inlet (for use w/pump AR 46 to manufacturing date 709)

1шт.

126

3059086R1

BANJO BOLT

SCREW, pump housing inlet (for use w/pump AR 46 manufacturing date 710 and since)

1шт.

126

3059086R1

BANJO BOLT

SCREW, pump housing inlet (pump BR 46)

1шт.

127

3059085R91

TUBE

connecting

1шт.

128

3132383R1

SCREW

intermediate housing vent

1шт.

129

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm (part of 3059093R91 PACKAGE)

1шт.

130

3136149R1

SCREW

intermediate housing inlet union

1шт.

131

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

(Part of 3059093R91 Package) M12 x 18 x 1.5

2шт.

132

3078346R91

RETAINER

roller

1шт.

133

3136147R1

PLATE, injection pump name

1шт.

134

3078365R91

SET, relief valve

1шт.

3059093R91

SEAL

1шт.

PACKAGE, injection pump external service, composed of, (1) O-ring 3078356R1, (1) ring 933087R2, (2) O-ring 3078357R1, (2) O-ring 3078358R1, (1) ring 3132407R1, (6) washer 3078362R1, (5) ring 934005R1, (3) ring 933696R1, (1) O-ring 3054854R1, (2) O-ring 785602R1

1шт.

3059094R93

GASKET KIT

PACKAGE, injection pump internal service, composed of, (1) O-ring 3078359R1, (1) O-ring 3078363R1, (1) O-ring 785602R1, (1) O-ring 3078361R1, (1) O-ring 3078364R1, (1) ring 3078360R1, (1) O-ring 3078354R1

1шт.
