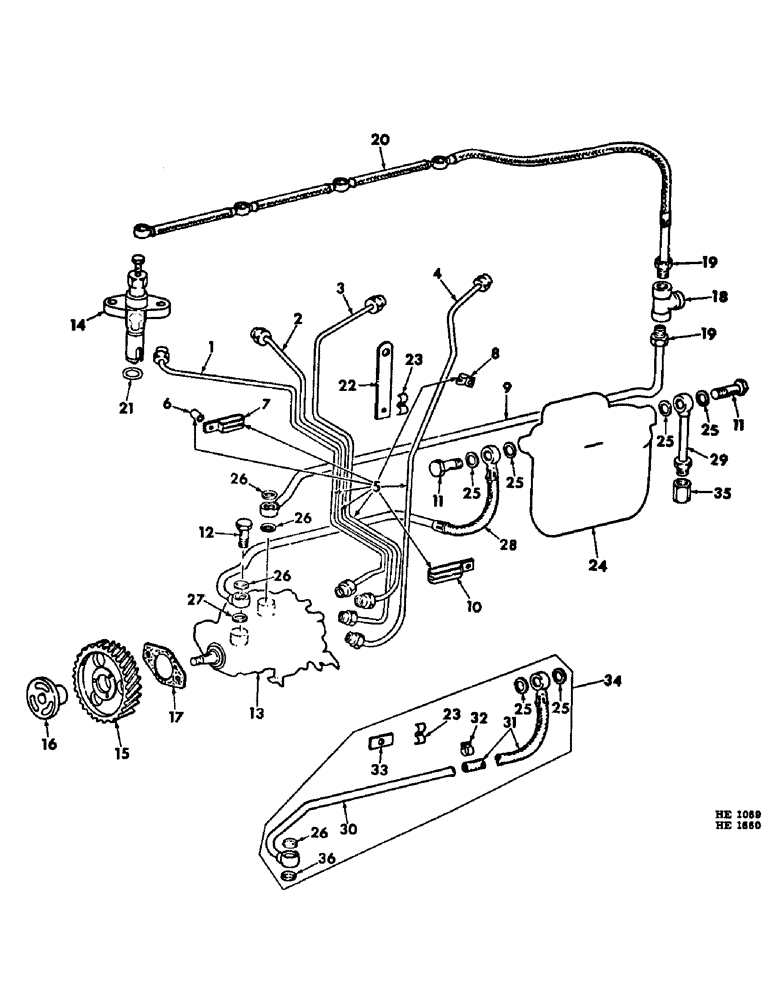

Запчасти Case IH 275 (D-20) - D206 DIESEL ENGINE, FUEL INJECTION SYSTEM, FOR SINGLE/DUAL FILTER, PRIOR TO ENG. S.N. DF2D020070 (01) - ENGINE

1

3055472R11

INJECTION PIPE

SPARE PART TUBE, injection cyl No. 1

1шт.

2

3055473R11

PIPE

TUBE, injection cyl No. 2

1шт.

3

3055474R11

PIPE

TUBE, injection cyl No. 3

1шт.

4

3055474R11

PIPE

TUBE, injection cyl No. 4

1шт.

5

3055465R91

SPARE PART

1шт.

TUBE ASSY, injection, composed of, (1) tube 3055472R11, (1) tube 3055473R11, (1) tube 3055474R11, (1) tube 3055475R11, (1) clamp 3132766R1, (1) clamp 3132767R1, (1) clamp 3132768R1, (1) spacer 3055480R1, (1) bolt 180033, (1) bolt 180018, (1) bolt 180016, (1) nut 120375, (3) washer 120380

1шт.

6

3055480R1

SPACER

SPACER, distance

1шт.

7

3132766R1

CLAMP

CLAMP, pipe

1шт.

180033

SPRING

1/4 x 1-3/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

3132767R1

CLAMP

CLAMP, tube

1шт.

180018

CONNECTING LINK

1/4 x 5/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

3055609R91

PIPE

LINE, overflow

1шт.

10

3132768R1

CLAMP

CLAMP, tube

1шт.

180016

SPRING

1/4 x 1/2"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

2шт.

12

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

13

PUMP, fuel injection (for service prior to engine serial No. DF2D202070 order 1 - 3144383R91 PUMP, 1 - 3144223R91 TUBE ASSY and 1 - 3144657R91 PACKAGE) (for service parts refer to "FUEL INJECTION PUMP")

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, 8.5 x 19 x 2.5 mm

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

3055422R92

HOLDER

HOLDER w/NOZZLE ASSY, injection (for service parts refer to "FUEL INJECTION NOZZLE")

4шт.

14

735252C91

REMAN-FUEL INJECTOR

Remanufactured, Nozzle

4шт.

14

1934193C1

CORE-FUEL INJECTOR

Return Number, Injection Nozzle

4шт.

15

3055066R3

GEAR

GEAR, 66T injection pump

1шт.

16

3055067R1

HUB

HUB, injection pump gear

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, 5/16 x 3/4"

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER, 8.5 x 19 x 2.5 mm

3шт.

17

3055384R1

GASKET

GASKET, fuel injection pump

1шт.

18

51542D

SPARE PART TEE, 5/16" tube 1/2"-20

1шт.

19

222-503

TUBE NUT,1/2"-20

NUT, 5/16" tube nut

1шт.

20

3055606R91

LINE

LINE, nozzle holder leak

1шт.

21

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

O-RING, injection nozzle sealing

4шт.

22

3055458R1

LARGE PLATE

PLATE, LARGE LINK, fuel lines fixing

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

BOLT, 3/8 x 5/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

3055386R1

CLAMP

CLIP, fuel line

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

FILTER ASSY, fuel (for service refer to (single filter) or (dual filter prior to engine serial No. DF2D020070)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1"

2шт.

Not part of assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of assembly.

1шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

SEALING WASHER, , Packing M14 x 18 x 1.8

4шт.

26

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Packing M12 x 15.5 x 1.5

3шт.

27

3055390R1

RING

RING, packing

1шт.

28

3055607R93

LINE, fuel filter to injection pump (single filter)

1шт.

28

3144384R1

LINE

LINE, fuel filter to injection pump (dual filter)

1шт.

29

3132208R1

LINE

LINE, fuel, Serial Range: line-filter

1шт.

30

3144654R1

LINE,200, 60.5 mm Length

TUBE, fuel

1шт.

31

3144655R1

HOSE

HOSE, fuel

1шт.

32

3144656R1

HOSE CLAMP

CLAMP, fuel

1шт.

33

3132318R1

PLATE

PLATE, fuel line

1шт.

180018

CONNECTING LINK

1/4 x 5/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

3144657R91

PACKAGE

PACKAGE, fuel filter to injection pump

1шт.

35

FITTING, (for service part refer to "FUEL LINES" - diesel - section E)

1шт.

36

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

SEALING WASHER, , Packing M12 x 18 x 1.5

1шт.
