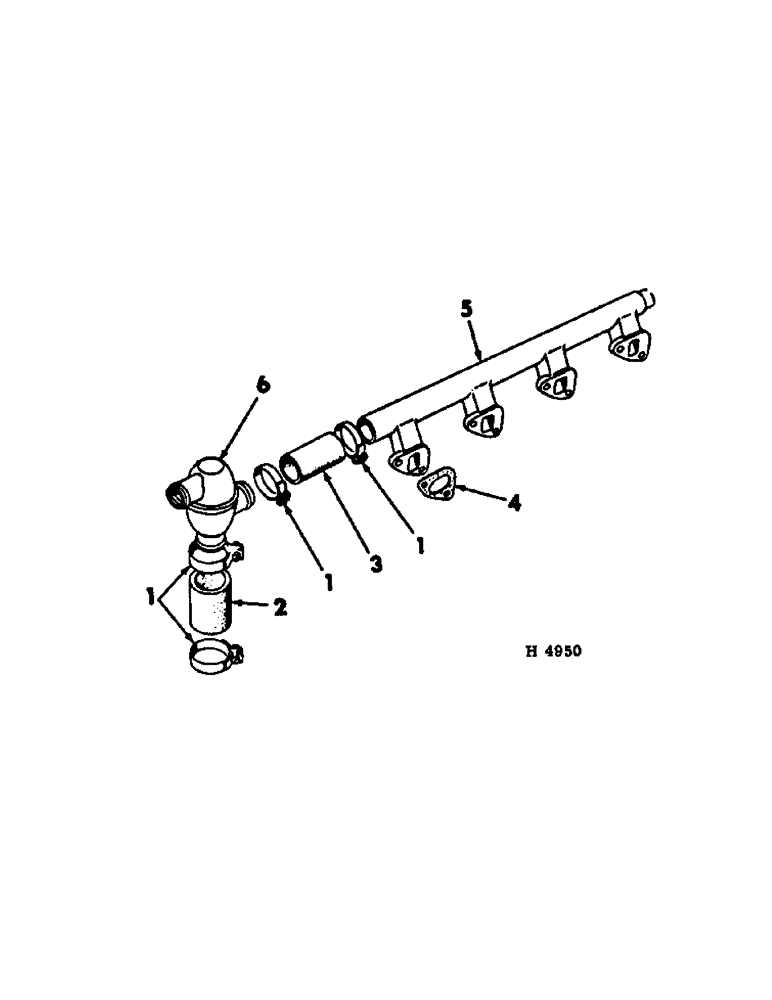

Запчасти Case IH 275 (D-19) - D206 DIESEL ENGINE, WATER COLLECTING PIPE, PRIOR TO ENGINE SERIAL NUMBER 33R1 (01) - ENGINE

1

3055258R91

CLAMP

hose (opt w/755023R91 CLAMP)

4шт.

1

755023R91

STRAP

CLAMP, hose (opt w/3055258R91 CLAMP)

4шт.

2

3055269R1

HOSE

connecting

1шт.

3

3055268R1

HOSE

connecting

1шт.

4

3055306R1

GASKET

collecting pipe

4шт.

5

3055255R1

MANIFOLD

PIPE, water collecting

1шт.

120368

NUT,5/16"-24, G5

8шт.

933570R1

WASHER

DISK, spring

7шт.

933570R1

WASHER

RING, packing copper

1шт.

712616R1

PLUG,Hex, M14 x 1.5

Pipe Hex, M14 x 1.5

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

6

3055303R92

THERMOSTAT

1шт.
