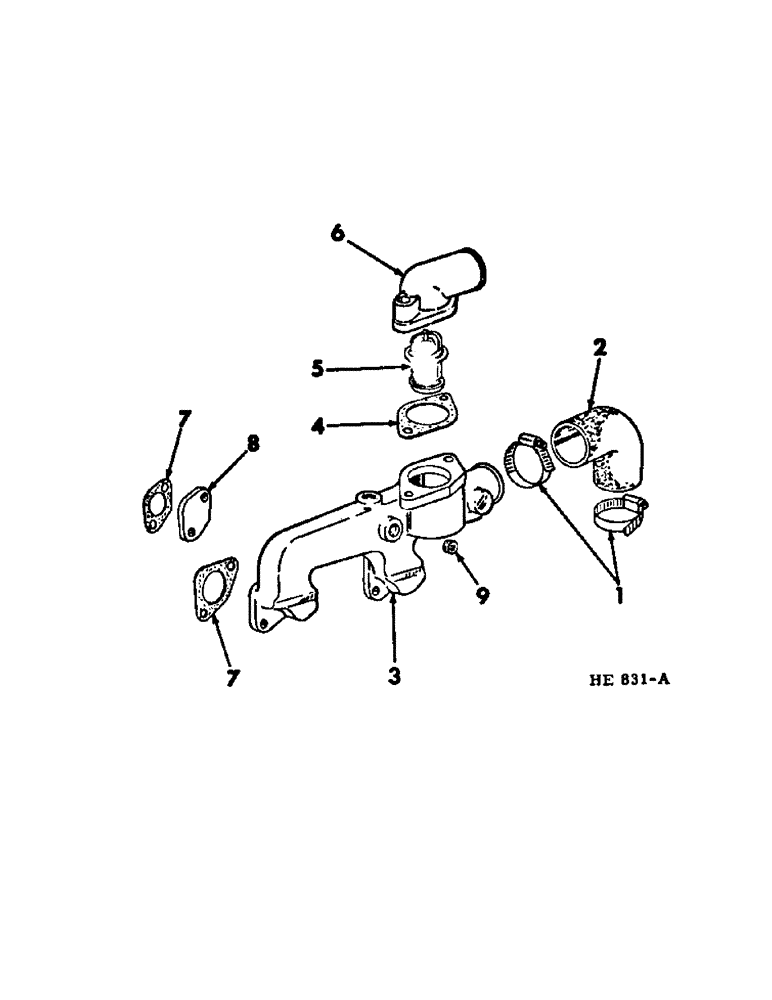

Запчасти Case IH 275 (D-19[A]) - D206 DIESEL ENGINE, COOLANT MANIFOLD AND THERMOSTAT, ENGINE SERIAL NUMBER 33R1 AND SINCE (01) - ENGINE

1

3055258R91

CLAMP

hose clamping (opt w/755023R91, CLAMP)

2шт.

1

755023R91

STRAP

CLAMP, hose clamping (opt w/3055258R91, CLAMP)

2шт.

2

3132719R1

HOSE,40.00 mm ID x 65.00 mm

- Elbow to manifold 40.00 mm ID x 65.00 mm

1шт.

3

3132717R1

MANIFOLD

water collecting

1шт.

120368

NUT,5/16"-24, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3136506R1

RING

packing

1шт.

4

3132143R1

GASKET

water outlet

1шт.

5

3059676R91

THERMOSTAT

1шт.

6

3132718R1

HOUSING

ELBOW, water outlet

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

3055306R1

GASKET

water collecting pipe

4шт.

8

3132721R1

COVER

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.
