Запчасти Case IH 275 (D-17) - D206 DIESEL ENGINE, FUEL FILTER, DUAL, ENGINE SERIAL NUMBER DF2D202070 AND SINCE (01) - ENGINE

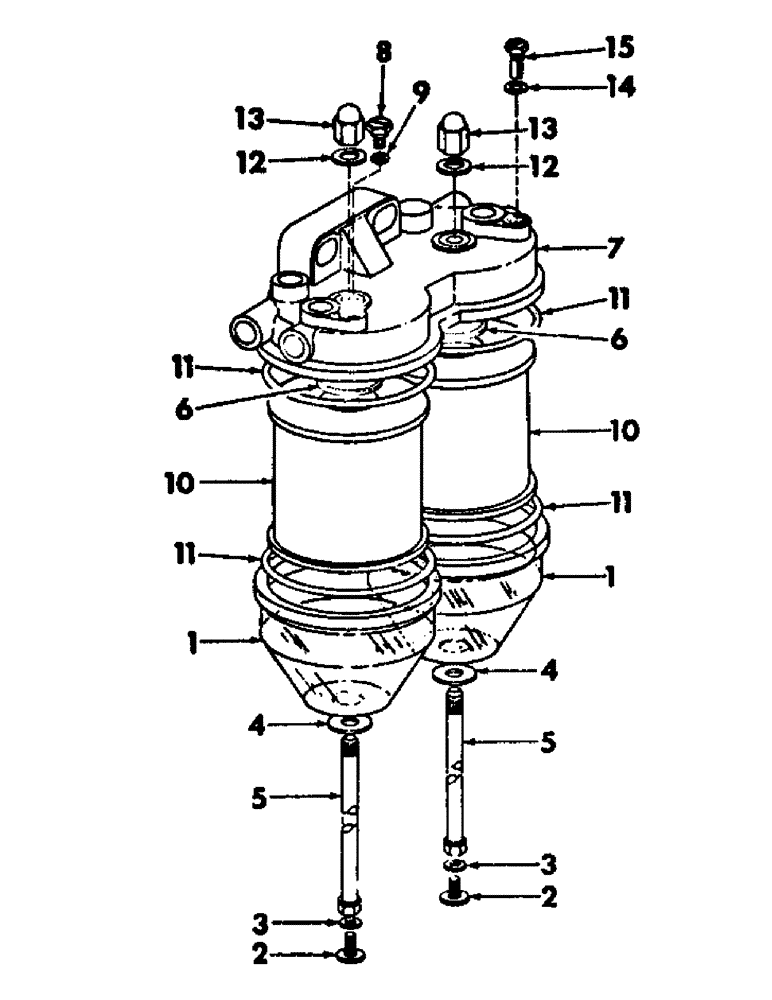

Схема запчастей Case IH 275 - (D-17) - D206 DIESEL ENGINE, FUEL FILTER, DUAL, ENGINE SERIAL NUMBER DF2D202070 AND SINCE (01) - ENGINE

Артикул

Название

Примечание

Количество

3144227R91

FILTER

ASSY, dual (includes all parts listed)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

3144478R1

FILTER BOWL

glass

2шт.

2

3144475R1

SCREW

drain

2шт.

3

3144476R1

RING

packing

2шт.

4

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

2шт.

5

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow

2шт.

6

3078483R1

O-RING,2.5mm Thk x 15mm ID

RING, packing

2шт.

7

3144484R1

HEAD

filter

1шт.

8

712616R1

PLUG,Hex, M14 x 1.5

Screw, locking Hex, M14 x 1.5

1шт.

9

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

10

ELEMENT, filter (NSS) (for service order 3144477R91 PACKAGE)

2шт.

11

3144472R1

RING

packing

4шт.

12

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

2шт.

13

3144473R1

CROWN NUT

crown

2шт.

14

757760R1

RING

packing

1шт.

15

3055881R1

SCREW

BOLT

1шт.

3144477R91

FILTER

PACKAGE, filter element, composed of, (NSS) (1) element, (2) ring 3144472R1

1шт.

Выбрано товаров: 19
