Запчасти Case IH 275 (D-16) - D206 DIESEL ENGINE, FUEL FILTER, DUAL, PRIOR TO ENGINE SERIAL NUMBER DE2D020070 (01) - ENGINE

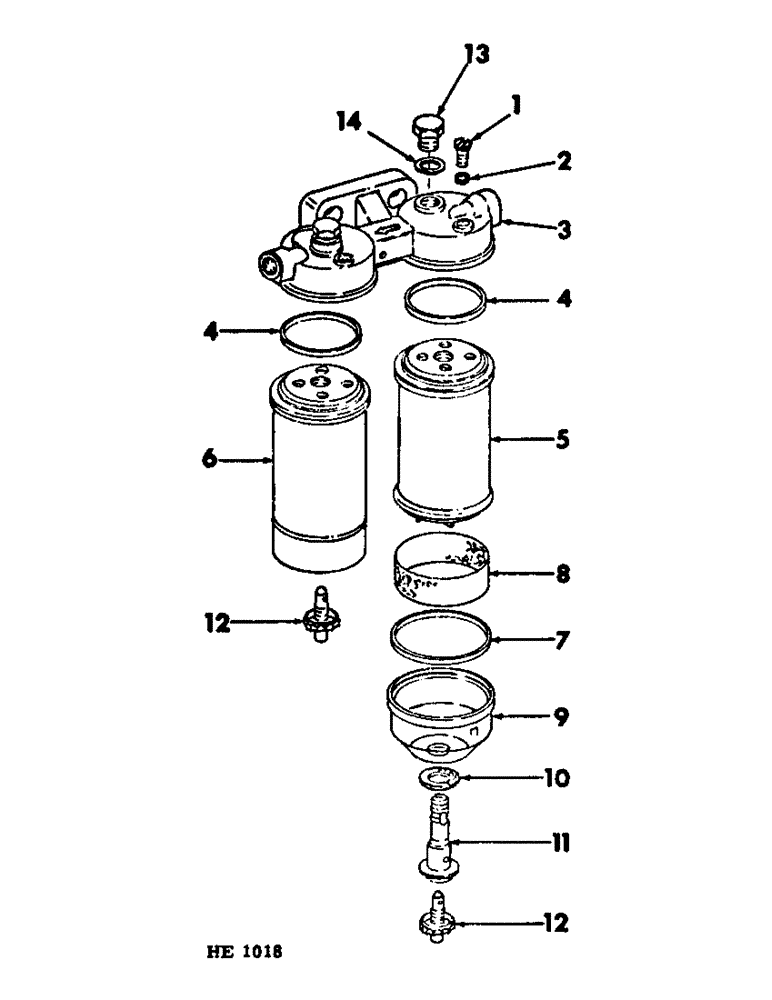

Схема запчастей Case IH 275 - (D-16) - D206 DIESEL ENGINE, FUEL FILTER, DUAL, PRIOR TO ENGINE SERIAL NUMBER DE2D020070 (01) - ENGINE

Артикул

Название

Примечание

Количество

3132461R91

FILTER

ASSY, dual (includes all parts listed unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

Not part of filter assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of filter assembly.

1шт.

1

3055881R1

SCREW

air vent

2шт.

2

757760R1

RING

packing

2шт.

3

3132491R1

FILTER HEAD

HEAD, filter

1шт.

4

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING, packing

2шт.

5

3132275R1

FILTER, ELEMENT

ELEMENT, filter (primary)

1шт.

6

3132428R1

FILTER, FUEL

ELEMENT, filter (final)

1шт.

7

3132191R1

RING

packing

1шт.

8

3132493R1

RING

rubber

1шт.

9

3132197R1

BOWL

transparent

1шт.

10

3132192R1

RING

packing

1шт.

11

3132194R1

SCREW,M12 x 1.5 x 68mm

hollow

1шт.

12

3132196R1

SCREW

PLUG, drain

2шт.

13

712616R1

PLUG,Hex, M14 x 1.5

Closing Hex, M14 x 1.5

1шт.

14

933610R1

SEALING RING,M14 x 18 x 1.8

Closing M14 x 18 x 1.8

1шт.

3136187R91

FILTER

PACKAGE, fuel filter primary box and seal ring service, composed of, (1) ring 3132191R1, (1) element 3132275R1

1шт.

Выбрано товаров: 20
