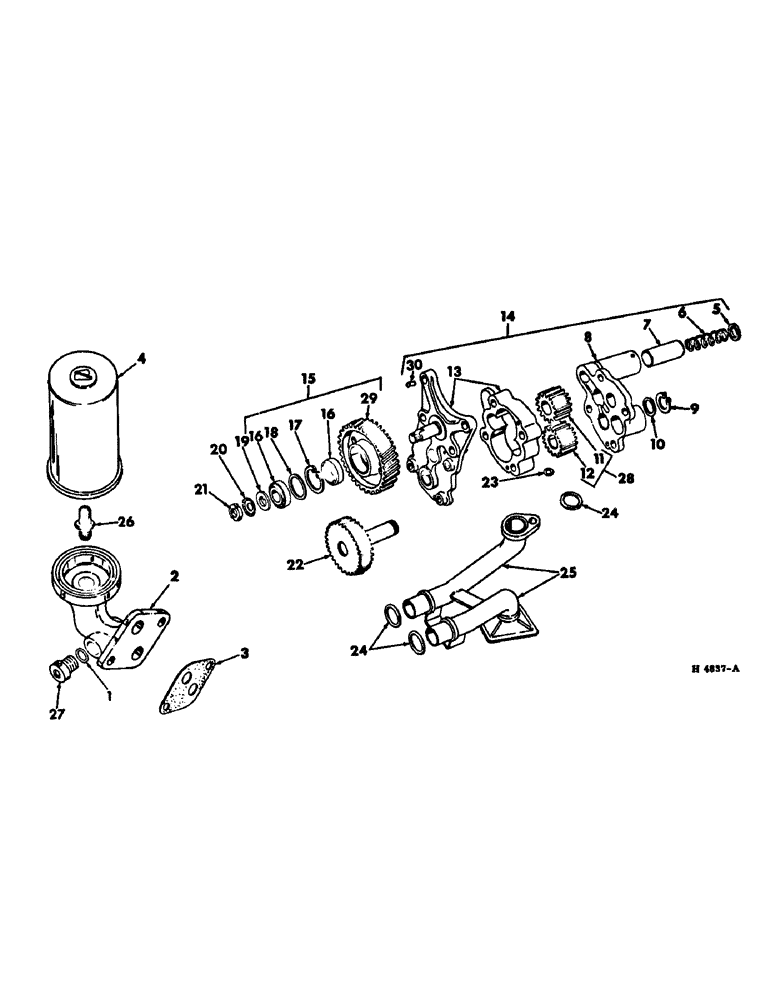

Запчасти Case IH 275 (D-14) - D206 DIESEL ENGINE, LUBRICATING OIL PUMP AND FILTER (01) - ENGINE

PUMP ASSY, oil (prior to engine serial No. DF2D020005 (for service order 1 - 3136431R91 PUMP ASSY) (includes all parts listed unless otherwise noted)

1шт.

3136431R91

PUMP

ASSY, oil (engine serial No. DF2D020005 and since) (includes all parts listed unless otherwise noted)

1шт.

138222

BOLT,Skt Hd, 5/16" - 18 x 1"

5/16 x 1" soc-hd

4шт.

Not part of oil pump assembly.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of oil pump assembly.

1шт.

1

933155R1

SEALING RING,M16 x 20 x 1.5

Packing M16 x 20 x 1.5

1шт.

Not part of oil pump assembly.

1шт.

2

3132209R1

PEDESTAL

SOCKET, oil filter

1шт.

Not part of oil pump assembly.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

Not part of oil pump assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of oil pump assembly.

1шт.

3

3055237R1

GASKET

oil filter socket

1шт.

Not part of oil pump assembly.

1шт.

4

FILTER, oil (prior to engine serial No. 33R200) (for service order 1 - 398080R2 FILTER and 1 - 3136308R1 CONNECTOR)

1шт.

4

398080R2

ENGINE OIL FILTER

FILTER, oil (engine serial No. 33R200 and since)

1шт.

Not part of oil pump assembly.

1шт.

5

3139620R1

SPRING WASHER

1шт.

6

3136264R1

SPRING

pressure relief valve

1шт.

7

3055202R2

VALVE

piston relief

1шт.

8

COVER, oil pump (NSS) (for service order 1 - 3136441R91 CARRIER ASSY)

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

9

933081R1

SNAP RING,M19, Ext

CIRCLIP, (prior to engine serial No. DF2D020005)

1шт.

10

3055205R1

RING

distance (prior to engine serial No. DF2D020005)

1шт.

11

3132328R1

GEAR

idler

1шт.

12

3132502R1

GEAR

oil pump

1шт.

13

CARRIER AND CASE, oil pump (NSS) (for service order 1 - 3136441R91 CARRIER ASSY)

1шт.

14

3136441R91

ENGINE OIL PUMP

CARRIER ASSY, oil, composed of, (3) pin 932597R1, (NSS) (1) case, (NSS) (1) carrier, (NSS) (1) cover, (1) pin 103387, (1) washer 3139620R1, (1) spring 3136264R1, (1) valve 3055202R2, (NSS) (2) bushing

1шт.

15

3056852R11

IDLER GEAR

GEAR ASSY, idler oil pump, composed of, (1) ring 933579R1, (NSS) (1) gear, (1) washer 3055292R1, (2) bearing 3055293R91

1шт.

16

3055293R91

TAPERED BEARING

BEARING, taper roller (opt w/3055294R91 BEARING)

2шт.

16

3055294R91

TAPERED BEARING

BEARING, taper roller (opt w/3055293R91 BEARING)

2шт.

17

933579R1

SNAP RING,M35, Int

1шт.

18

3055292R1

WASHER

WASHER

1шт.

19

3055371R1

WASHER

keyed

1шт.

20

3055296R1

WASHER

PLATE, locking

1шт.

21

3055295R1

NUT

shaft

1шт.

22

3136444R91

GEAR

drive

1шт.

23

717222R1

O-RING

1шт.

Not part of oil pump assembly.

1шт.

24

3055199R1

O-RING

3шт.

Not part of oil pump assembly.

1шт.

25

3132781R92

PIPE

oil pressure and suction

1шт.

Not part of oil pump assembly.

1шт.

24933R1

HEX SOC SCREW,7/16"-14 x 3 3/4"

1шт.

Not part of oil pump assembly.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

Not part of oil pump assembly.

1шт.

26

3132210R1

CONNECTOR, 3/4" filter (prior to engine serial No. 33R200)

1шт.

Not part of oil pump assembly.

1шт.

26

3136308R1

CONNECTOR, ELEC

CONNECTOR, 1" filter (engine serial No. 33R200 and since)

1шт.

Not part of oil pump assembly.

1шт.

27

3051784R1

PLUG

closing

1шт.

Not part of oil pump assembly.

1шт.

28

3132503R91

GEAR-SET

SET, oil pump gears, composed of, (1) gear 3132328R1, (1) gear 3132502R1

1шт.

KNIFE, 14 ft single & dual platform cr-pltd smooth section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (102) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823712R1, (51) SECTION 457605R1

1шт.

Not part of oil pump assembly.

1шт.

29

GEAR, oil pump idler (NSS) (for service order 1 - 3056852R11 GEAR ASSY)

1шт.

30

932597R1

LOCK PIN,M10 x 14, Slotted

Carrier M10 x 14, Slotted

3шт.
