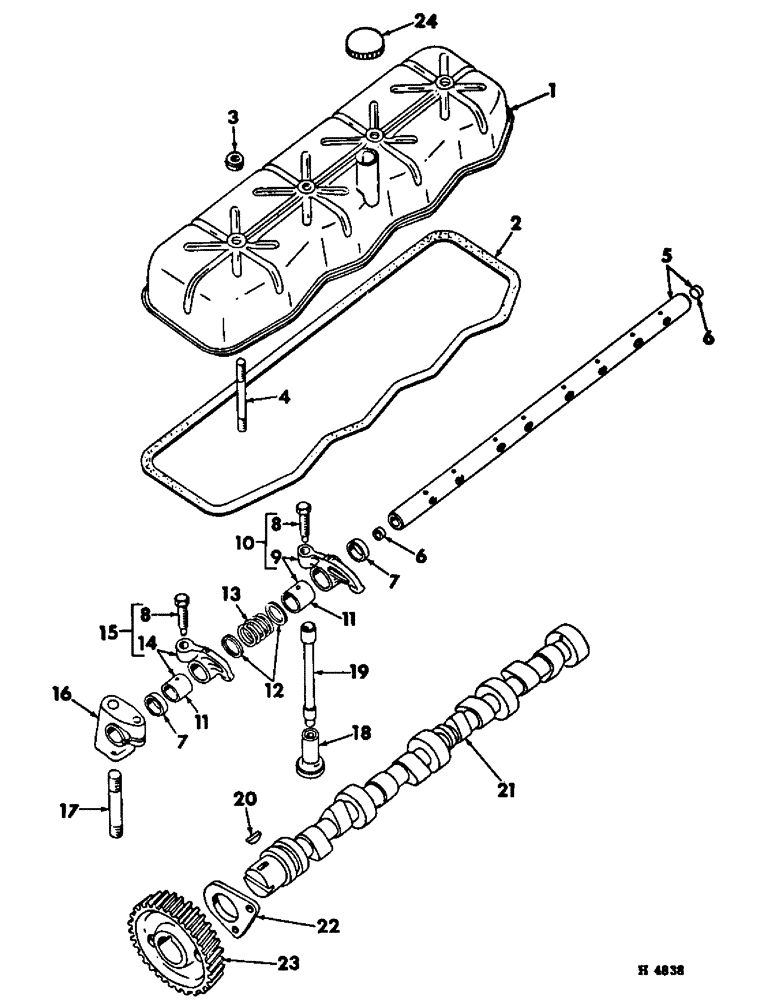

Запчасти Case IH 275 (D-12) - D206 DIESEL ENGINE, CAMSHAFT AND VALVE LEVER SHAFT (01) - ENGINE

1

3132161R92

COVER

valve housing

1шт.

425-115

NUT,5/16"-24, G5

5/16"

4шт.

2

3138642R1

GASKET

housing cover

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

4шт.

3138637R1

CUP WASHER

WASHER, cover

4шт.

4

3055223R1

STUD

4шт.

5

3055070R21

SHAFT HOUSING

SHAFT ASSY, lever (includes 2 - 933565R1 PLUGS)

1шт.

6

933565R1

PLUG,M14, Conical

expansion

2шт.

7

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

spacer

7шт.

8

3132137R1

ADJUSTMENT SCREW

8шт.

3132138R1

NUT

adjusting screw

8шт.

9

3055072R21

ROCKER ARM

LEVER ASSY, valve intake (includes 1 - 3132019R1 BUSHING)

4шт.

10

3132292R91

ROCKER

PACKAGE, intake valve lever arm service, composed of, (1) lever 3055072R21, (1) screw 3132137R1, (1) nut 3132138R1

1шт.

11

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

valve lever

8шт.

12

3055669R1

THRUST WASHER

valve lever thrust

8шт.

13

3055075R2

SPRING

4шт.

14

3055073R21

ROCKER ARM

LEVER ASSY, valve exhaust (includes 1 - 3132019R1 BUSHING)

4шт.

15

3132293R91

ARM ASSY.

PACKAGE, exhaust valve lever service, composed of, (1) lever 3055073R21, (1) screw 3132137R1, (1) nut 3132138R1

4шт.

16

3144177R91

BRACKET

PACKAGE, rocket shaft bracket (matched set) composed of, (NSS) (5) brackets

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

5шт.

25-118

NUT,1/2"-20, G5

1/2"

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

3055220R1

STUD,1/2" - 20 x 3.18"

5шт.

18

3055052R1

TAPPET

valve

8шт.

19

3055053R91

ROD

valve push (opt w/3144342R1 and 3132394R91 VALVE)

8шт.

19

3144342R1

PUSH ROD

ROD, valve push (opt w/3055053R91 and 3132394R91 VALVE)

8шт.

19

3132394R91

SEAT, VALVE

ROD, valve push (opt w/3055053R91 and 3132342R1 VALVE)

8шт.

20

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8" WOODRUFF

1шт.

21

3055046R1

CAM

SHAFT

1шт.

22

3055051R1

THRUST PLATE

PLATE, camshaft thrust

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

3055176R1

PINION

GEAR, camshaft

1шт.

24

3132205R1

COVER

CAP, oil filter

1шт.
