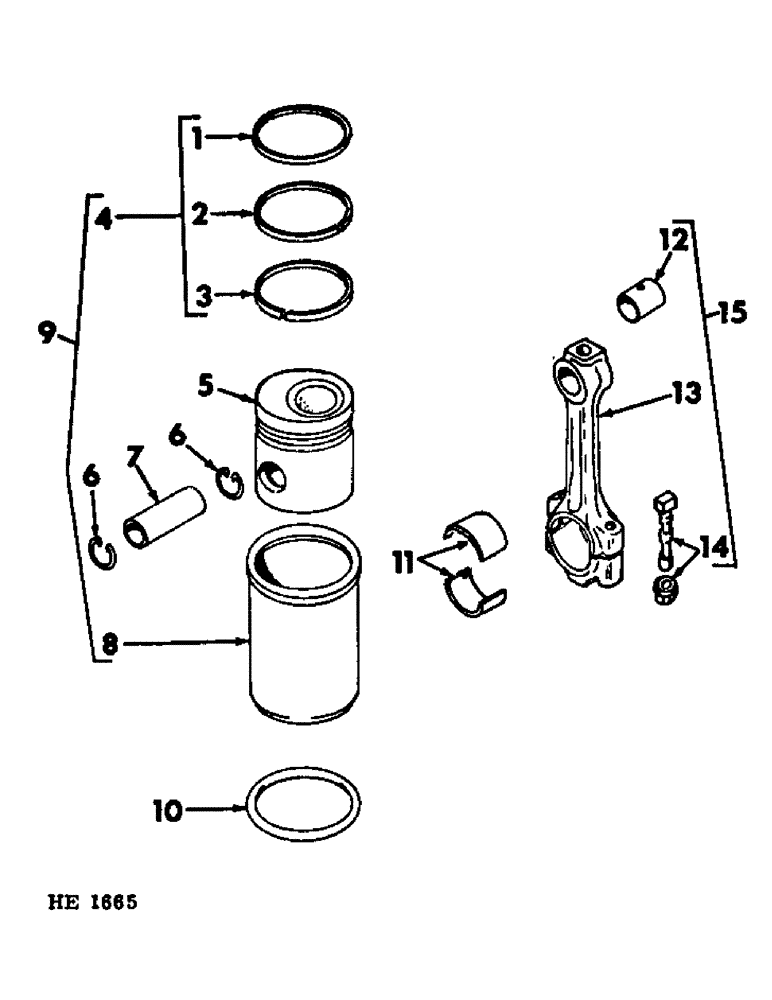

Запчасти Case IH 275 (D-09) - D206 DIESEL ENGINE, CONNECTING RODS AND PISTONS, ENGINE SERIAL NUMBER DF2D020070 AND SINCE (01) - ENGINE

1

3139589R1

RING, PISTON

RING, compression (1st ring) (opt w/677011C1 RING)

4шт.

1

677011C1

RING, compression (1st ring) (opt w/3139589R1 RING)

4шт.

2

3139590R1

RING, PISTON

RING, compression (2nd ring) (opt w/676966C1 RING)

4шт.

2

676966C1

RING, compression (2nd ring) (opt w/3139590R1 RING)

4шт.

3

3138668R2

SCRAPER RING

RING, oil control (3rd ring) (opt w/676931C1 RING)

1шт.

3

676931C1

RING, oil control (3rd ring) (opt w/3138668R2 RING)

4шт.

4

3139594R91

PISTON RING

SET, piston ring (opt w/671510C91 SET) composed of, (1) ring 3139589R1, (1) ring 3139590R1, (1) ring 3138668R2

4шт.

4

671510C91

SET OF RINGS

SET, piston ring (opt w/3139594R91 SET) composed of, (1) ring 677011C1, (1) ring 676966C1, (1) ring 676931C1

4шт.

5

PISTON, (NSS) (for service order 3139586R91 PISTON ASSY)

4шт.

6

933327R1

SNAP RING,M36, Int

SPRING, retainer

8шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

SLEEVE, piston (NSS) (for service order 3139586R91 PISTON ASSY)

4шт.

9

3139586R91

PISTON ASSY

composed of, (NSS) (1) sleeve (NSS) (1) piston, (1) pin 3055217R2, (1) set 3139594R91, (2) spring 933327R1

4шт.

10

3055021R2

O-RING

O-RING

4шт.

11

3055351R91

BEARING ASSY

BEARING, connecting rod (standard)

4шт.

11

3056834R11

BEARING ASSY

BEARING, connecting rod (.01 U/S)

4шт.

11

3056879R11

BEARING ASSY

BEARING, connecting rod (.02 U/S)

4шт.

11

3055781R11

BEARING ASSY

connecting rod (.03 U/S)

4шт.

13

CONNECTING ROD w/CAP (NSS) (for service order 3055029R24 CONNECTING ROD ASSY)

4шт.

14

3055033R11

BOLT

W/Nut, Connecting rod

8шт.

15

3055029R24

CONNECTING ROD

ASSY, composed of, (NSS) (1) rod, (NSS) (1) cap, (1) bushing 3132018R1, (2) bolt w/nut 3055033R11

1шт.
