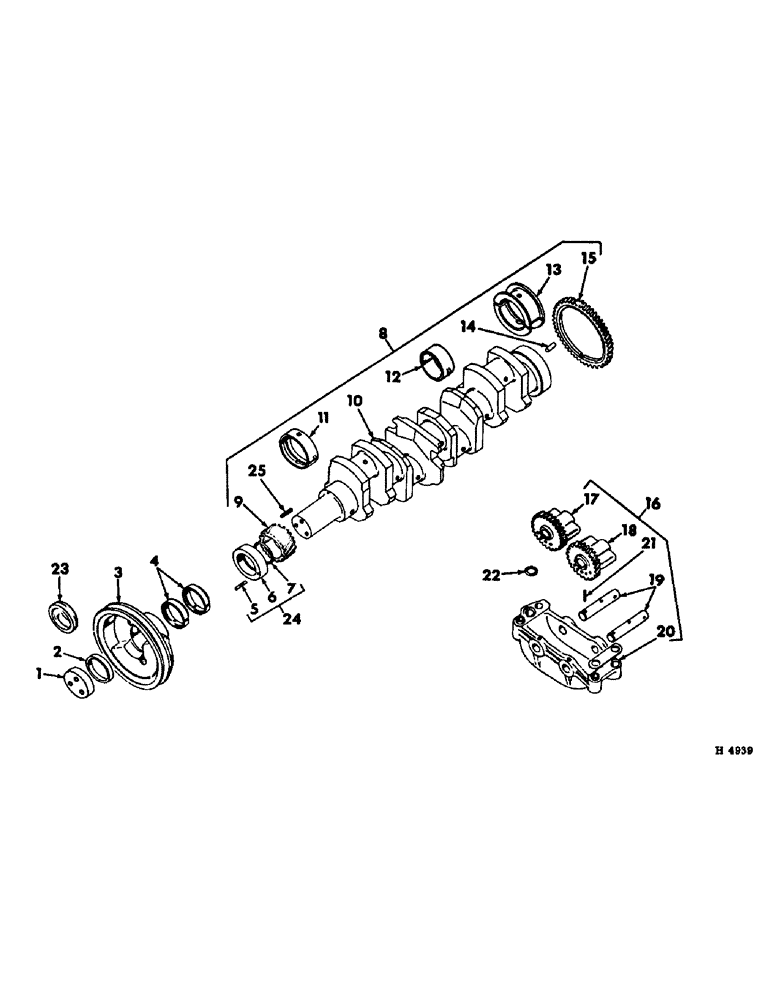

Запчасти Case IH 275 (D-06) - D206 DIESEL ENGINE, CRANKSHAFT AND BALANCER (01) - ENGINE

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

Special Hex, 7/16"-14 x 1 3/8", G8

3шт.

2

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure (prior to engine serial No. DF2D020065)

2шт.

3

PULLEY, crankshaft (double grooved) (prior to engine serial No. DF2D020065) order 1 - 3138835R1 PULLEY and 1 - 3138874R1 RING)

1шт.

3

3138835R1

PULLEY

crankshaft (double grooved) (engine serial No. DF2D020065 and since)

1шт.

4

3055152R91

RING

SPRING, annular (prior to engine serial No. DF2D020065)

2шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

RING, distance (NSS) (for service order 1 - 3136724R93 PACKAGE)

1шт.

7

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

8

3132968R93

CRANKSHAFT BEARING

ASSY (includes items 9, 10, 11, 12, 13, 14, 15 and 25)

1шт.

8

3132969R93

CRANKSHAFT

ASSY, (.010 undersize)

1шт.

8

3132971R93

CRANKSHAFT

ASSY, (.02 undersize)

1шт.

8

3132973R93

CRANKSHAFT

ASSY, (.03 undersize)

1шт.

9

3055028R1

PINION

crankshaft

1шт.

10

CRANKSHAFT (NSS) (for service order CRANKSHAFT w/STANDARD or U/S main & connecting rod bearings)

1шт.

11

3055130R21

CRANKSHAFT BEARING

BEARING, main (standard size)

4шт.

11

3056832R21

BEARING ASSY

BEARING, main (.01 undersize)

4шт.

11

3056877R21

BEARING ASSY

BEARING, main (.02 undersize)

4шт.

11

3055779R21

BEARING ASSY

main (.03 undersize)

4шт.

12

BEARING, connecting rod (refer to "CONNECTING ROD AND PISTONS")

1шт.

13

3055129R21

CRANKSHAFT BEARING

BEARING, main rear (standard size)

1шт.

13

3056820R11

BEARING ASSY

BEARING, main rear (.01 undersize)

1шт.

13

3056875R11

BEARING ASSY

BEARING, main rear (.02 undersize)

1шт.

13

3055776R11

BEARING ASSY

BEARING, main rear (.03 undersize)

1шт.

14

141244

PIN

dowel

1шт.

15

3136237R1

PINION

GEAR, balancer drive

1шт.

16

3136185R92

BALANCER

(prior to engine serial No. 33P49) composed of, (1) weight 3055502R11, (2) pin 3136186R11, (1) housing 3055504R41, (1) weight 3055505R11, (2) pin 932229R1, (2) pin 932299R1

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/26 x 2"

2шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

16

3132895R93

BALANCER

(engine serial No. 33P49 and since) composed of, (1) weight 3132897R11, (2) pin 3132878R11, (1) housing 3132875R41, (1) weight 3132896R11, (2) pin 932229R1, (2) pin 932299R1

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 x 2-3/4"

1шт.

180155

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 x 2-1/4"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

17

3055502R11

BALANCER

WEIGHT, idler (prior to engine serial No. 33P49)

1шт.

17

3132897R11

WEIGHT, idler (engine serial No. 33P49 and since)

1шт.

18

3055505R11

COUNTERWEIGHT

WEIGHT, drive (prior to engine serial No. 33P49)

1шт.

18

3132896R11

WEIGHT, drive (engine serial No. 33P49 and since)

1шт.

19

3136186R11

PIN

balancer weight (prior to engine serial No. 33P49)

2шт.

19

3132878R11

PIN,23mm OD x 93mm L

balancer weight (engine serial no. 33P49 and since)

2шт.

20

3055504R41

HOUSING

balancer weight (prior to engine serial No. 33P49)

1шт.

20

3132875R41

HOUSING

balancer weight (engine serial No. 33P49 and since)

1шт.

21

932229R1

SPLIT PIN/SAFETY PIN

PIN, spring 4 x 20

2шт.

21

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

balancer (NOT part of balancer assy)

1шт.

23

3138874R1

BEARING WASHER

RING, clamping (engine serial No. DF2D020065 and since)

1шт.

24

3136724R93

SEAL KIT

PACKAGE, crankshaft oil seal, composed of, (NSS) ring, (NSS) (1) seal, (1) pin 932681R1, (1) O-ring 713778R1

1шт.

25

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

2шт.
