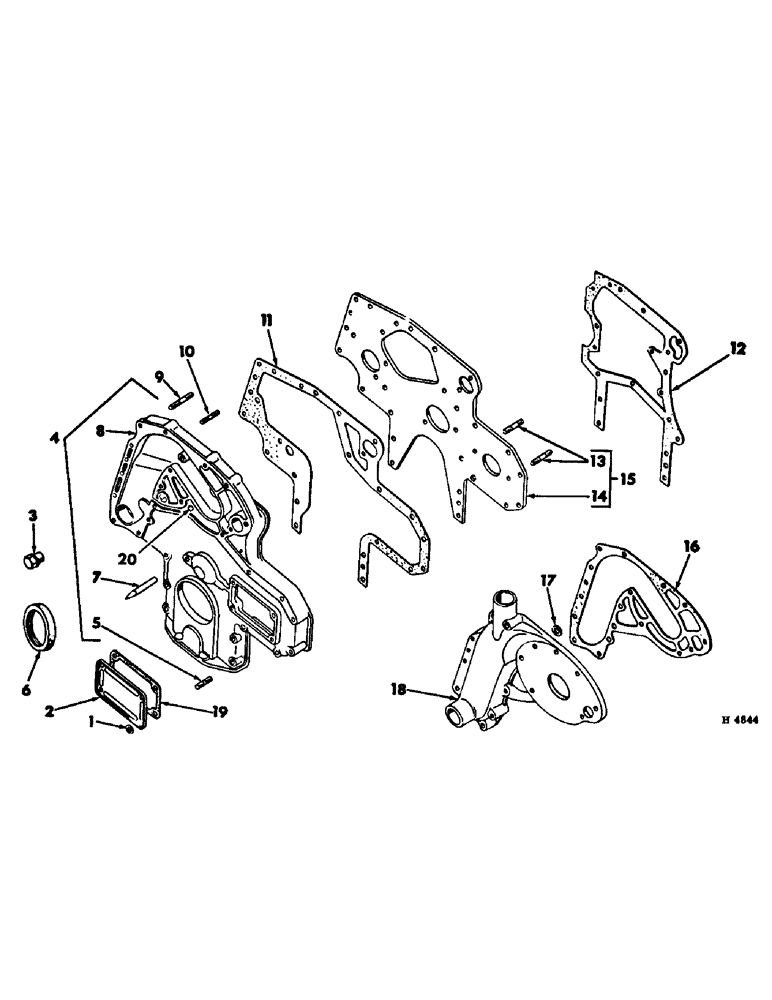

Запчасти Case IH 275 (D-05) - D206 DIESEL ENGINE, CRANKCASE FRONT COVER (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
131402H
WASHER
11/32 x 9/16 x 16 ga
4шт.
2
3055140R1
COVER
injection pump
1шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
3
787585R1
PLUG
SCREW, locking
1шт.
4
3056853R51
COVER
ASSY, front, composed of, (1) pointer 3056855R1, (4) stud 3055242R1, (NSS) (1) cover, (1) plug 3138972R1
1шт.
5
3055242R1
STUD
4шт.
6
SEAL, oil (for service order 1 - 3136724R93 PACKAGE)
1шт.
7
3056855R1
INDICATOR
POINTER, timing
1шт.
8
COVER, front (NSS) (for service order 1 - 3056853R51 COVER ASSY)
1шт.
9
3055244R1
STUD
(2-1/2" length)
1шт.
9
3136782R1
STUD
(3-1/16" length)
1шт.
10
3055243R1
STUD
3шт.
11
3055240R1
GASKET
front cover (prior to engine serial No. DF2D02070)
1шт.
11
3144072R1
GASKET
front cover (engine serial No. DF2D02070 and since)
1шт.
12
3055239R1
GASKET
plate
1шт.
13
3055065R1
STUD
2шт.
14
PLATE, crankcase front (NSS) (for service order 1 - 3055064R11 PLATE ASSY)
1шт.
15
3055064R11
PLATE
ASSY, crankcase front cover (includes STUDS and NUTS)
1шт.
181593
BOLT,Hex, 5/16" - 24 x 5/8", Gr 5
5/16 x 5/8"
7шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
7шт.
16
3055245R2
GASKET
water channel (prior to engine serial No. 33R1)
1шт.
16
3136766R2
SEALING WASHER
water channel (engine serial No. 33R1 and since)
1шт.
17
3055246R1
GASKET
water channel
1шт.
18
3136764R1
HOUSING
CHANNEL, water
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
5/16 x 1"
3шт.
180086
BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5
5/16 x 1-7/8"
1шт.
180087
SPRING
5/16 x 2"
1шт.
180735
BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5
5/16 x 3-1/4"
5шт.
120376
NUT,5/16"-18, G5
7шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
933570R1
WASHER
spring
5шт.
19
3138640R1
GASKET
pump cover
1шт.
20
3138972R1
PLUG
expansion
1шт.
3136724R93
SEAL KIT
PACKAGE, front cover, composed of, (NSS) (1) ring, (NSS) (1) seal, (1) pin 932681R1, (1) ring 713778R1
1шт.
Выбрано товаров: 35
