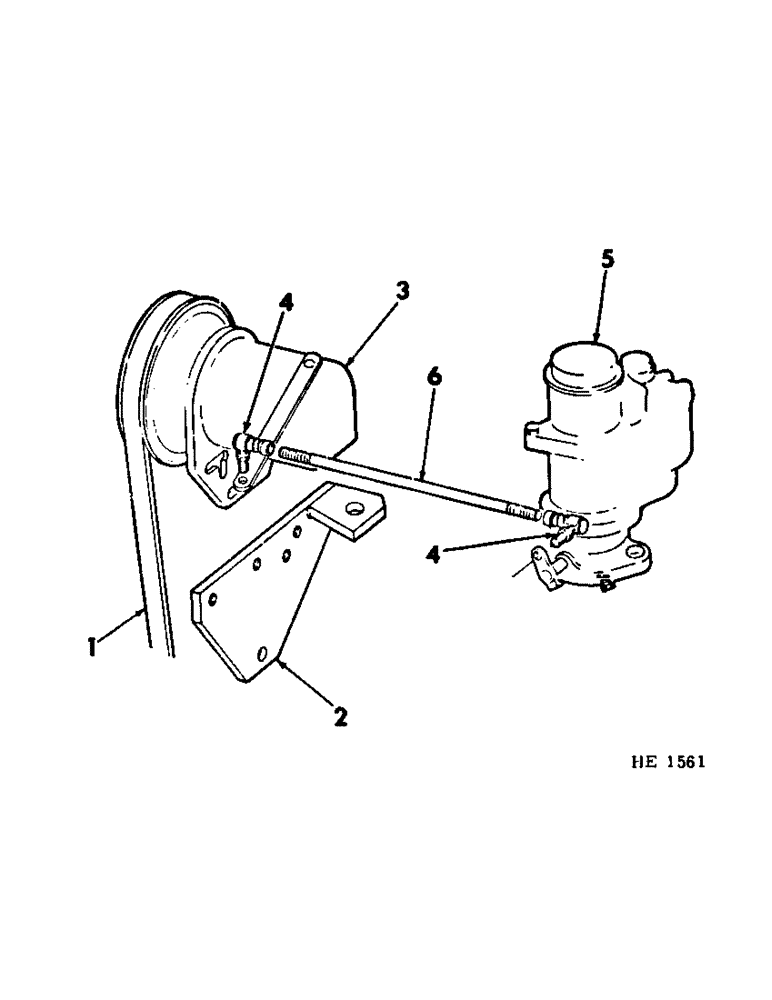

Запчасти Case IH 275 (C-19) - 6 CYLINDER, 232 CARBURETED ENGINE, GOVERNOR BRACKET AND LINKAGE (01) - ENGINE

1

352095C1

V-BELT,51.00" L

Engine pulley to governor 51.00" L

1шт.

2

827000C1

SUPPORT, governor

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 - 16 x 1-1/2"

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 - 16 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

7/16 - 20

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

477589R1

WASHER

13/32 x 1-1/2 x .105 ga

3шт.

3

GOVERNOR, (for service parts, Serial Range: refer-"GOVERNOR")

1шт.

4

304164R91

JOINT

1/4" ball type S governor linkage

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 - 20

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

CARBURETOR, (for service parts, Serial Range: refer-"CARBURETOR")

1шт.

6

827039C1

ROD

throttle control

1шт.
