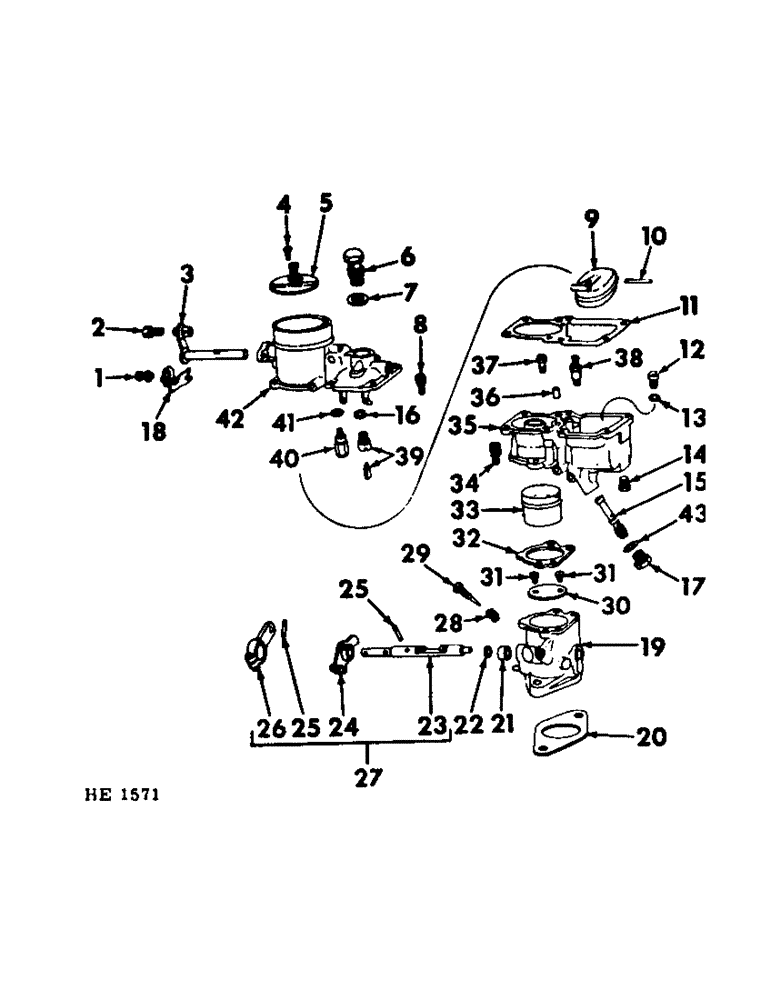

Запчасти Case IH 275 (C-17) - 6 CYLINDER, 232 CARBURETED ENGINE, CARBURETOR, BENDIX (01) - ENGINE

827052C91

CARBURETOR

engine (includes all parts listed)

1шт.

1

454689

SCREW w/WASHER, No. 8 - 36 x 3/8" fil-hd sltd air shutter bracket

1шт.

2

19402R1

SCREW, No. 8 - 36 x 7/16" sltd shaft swivel

1шт.

3

827281C1

SHAFT

air shutter lever

1шт.

4

SCREW, No. 6 - 32 x 5/16" fil-hd sltd air shutter (NSS) (part of 827292C1 KIT)

1шт.

5

827283C1

SHUTTER

air

1шт.

6

392421R91

FILTER

1шт.

7

WASHER, filter (NSS) (part of KITS)

1шт.

8

19270R91

SCREW w/WASHER, No. 10 - 32 x 58" fil-hd sltd

6шт.

9

827285C1

FLOAT

1шт.

10

PIN, float axle (NSS) (part of 827292C1 KIT)

1шт.

11

GASKET, bowl to intake (NSS) (part of KITS)

1шт.

12

93330H

JET, main

1шт.

13

WASHER, main jet (NSS) (part of KITS)

1шт.

14

FOR444613

PLUG

1/8 - 27 pipe

1шт.

15

827289C1

JET

main discharge

1шт.

16

WASHER, fuel valve (NSS) (part of 827291C1 KIT)

1шт.

17

31860D

PLUG

fuel bowl

1шт.

18

827282C1

BRACKET

air shutter

1шт.

19

BODY, carburetor (NSS) (for service order 1 - 827052C91 CARBURETOR)

1шт.

20

827053C1

GASKET

flange (part of 827292C1 KIT)

1шт.

21

SEAL, throttle shaft (NSS) (part of 827292C1 KIT)

1шт.

22

WASHER, seal retainer (NSS) (part of 827292C1 KIT)

1шт.

23

SHAFT, throttle (NSS) (order 1 - 827286C1 LEVER ASSY)

1шт.

24

LEVER w/SPRING, throttle stop (NSS) (order 1 - 827286C1 LEVER ASSY)

1шт.

25

PIN, clamp (NSS) (order 1 - 827286C1 LEVER ASSY)

2шт.

26

CLAMP, lever (NSS) (order 1 - 827286C1 LEVER ASSY)

1шт.

27

327286C1

LEVER ASSY, throttle shaft

1шт.

28

30594D

SPRING, idle adjusting screw

1шт.

29

NEEDLE, idle adjusting (NSS) (part of 827292C1 KIT)

1шт.

30

827287C1

PLATE

throttle

1шт.

31

SCREW, No. 5 - 40 x 1/4" rd-hd sltd throttle plate retaining (NSS) (part of 827292C1 KIT)

2шт.

32

GASKET, throttle body to bowl (NSS) (part of 827292C1 KIT)

1шт.

33

827288C1

VENTURI

1шт.

34

271468

BRACKET

SCREW w/WASHER, 1/4 - 20 x 3/4" fil-hd sltd

2шт.

35

BOWL, fuel (NSS) (for service order 1 - 827052C91 CARBURETOR)

1шт.

36

827290C1

VENT

well

1шт.

37

93343H

JET, idle

1шт.

38

20053D

PLUG, channel

1шт.

39

VALVE, fuel (NSS) (part of 827292C1 KIT)

1шт.

40

827284C1

PLUG

vacuum piston

1шт.

41

WASHER, vacuum piston plug (NSS) (part of KITS)

1шт.

42

INTAKE, air (NSS) (for service order 1 - 827052C91 CARBURETOR)

1шт.

43

WASHER, fuel bowl (NSS) (part of KITS)

1шт.

827291C1

SET

KIT, gasket service (includes items 7, 11, 13, 16, 32, 41 & 43)

1шт.

827292C1

KIT

gasket service (includes items 4, 7, 10, 11, 13, 20, 21, 22, 29, 31, 32, 39, 41 & 43)

1шт.
