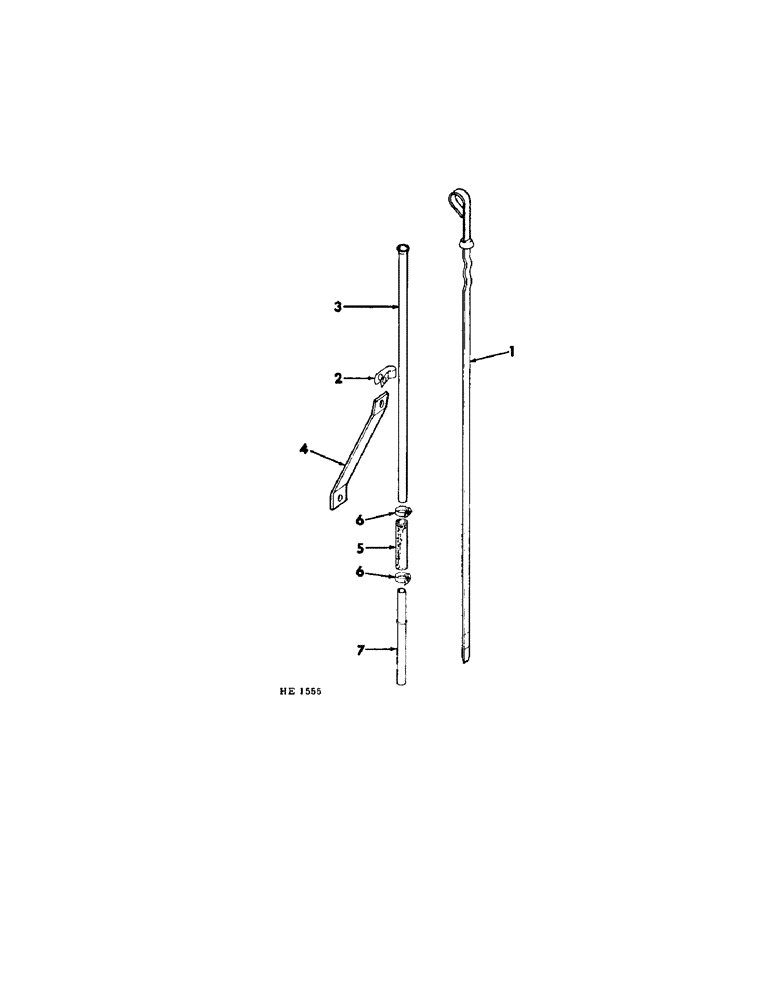

Запчасти Case IH 275 (C-16) - 6 CYLINDER, 232 CARBURETED ENGINE, DIPSTICK (01) - ENGINE

1

823322C1

GAUGE, oil level

1шт.

2

595432R1

CLAMP

dipstick tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 - 16 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

827199C1

TUBE, dipstick 0.375" OD, 17" Length

1шт.

4

827198C1

SUPPORT, tube

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 - 18 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

827195C1

HOSE, tube connecting

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

7

387023C1

TUBE,.375" OD, 6" Length

dipstick

1шт.
