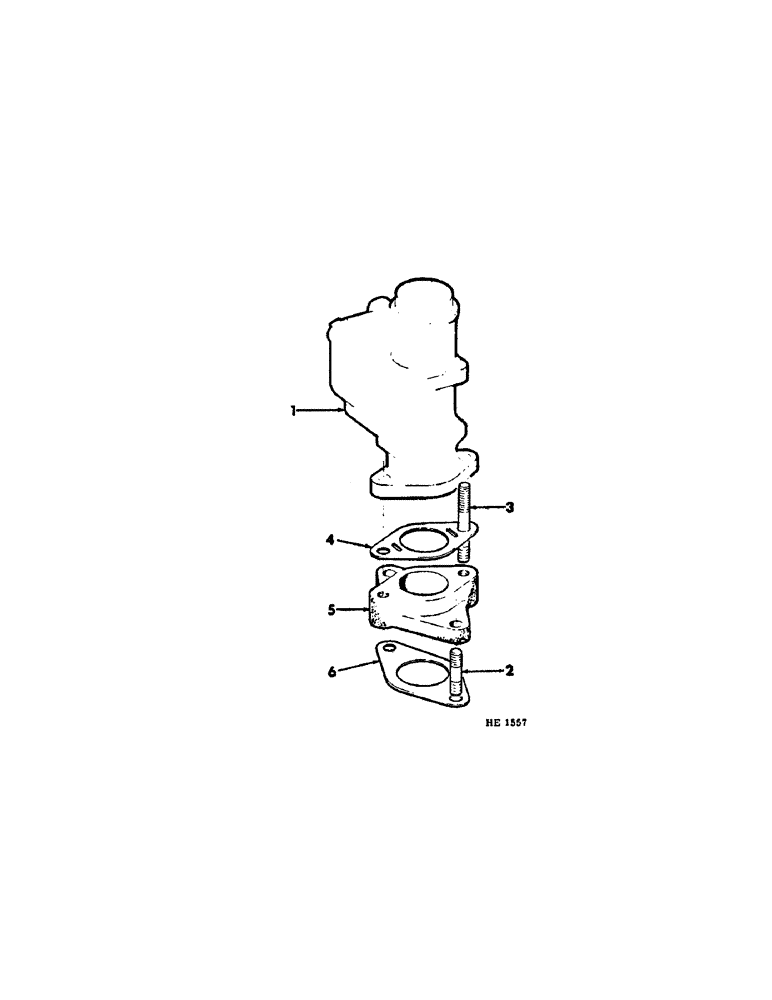

Запчасти Case IH 275 (C-16[A]) - 6 CYLINDER, 232 CARBURETED ENGINE, CARBURETOR AND ADAPTOR (01) - ENGINE

1

827052C91

CARBURETOR

ASSY (for service parts, Serial Range: refer-"CARBURETOR")

1шт.

2

387139C1

STUD, carburetor, Serial Range: adaptor-manifold

2шт.

120369

NUT,3/8"-24, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

387138C1

STUD

, Serial Range: carburetor-adaptor

2шт.

120369

NUT,3/8"-24, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

827053C1

GASKET

carburetor

1шт.

5

827096C1

ADAPTER

ADAPTOR, carburetor

1шт.

6

384859C2

GASKET

adaptor

1шт.
