Запчасти Case IH 275 (C-15) - 6 CYLINDER, 232 CARBURETED ENGINE, SERVICE ENGINES (01) - ENGINE

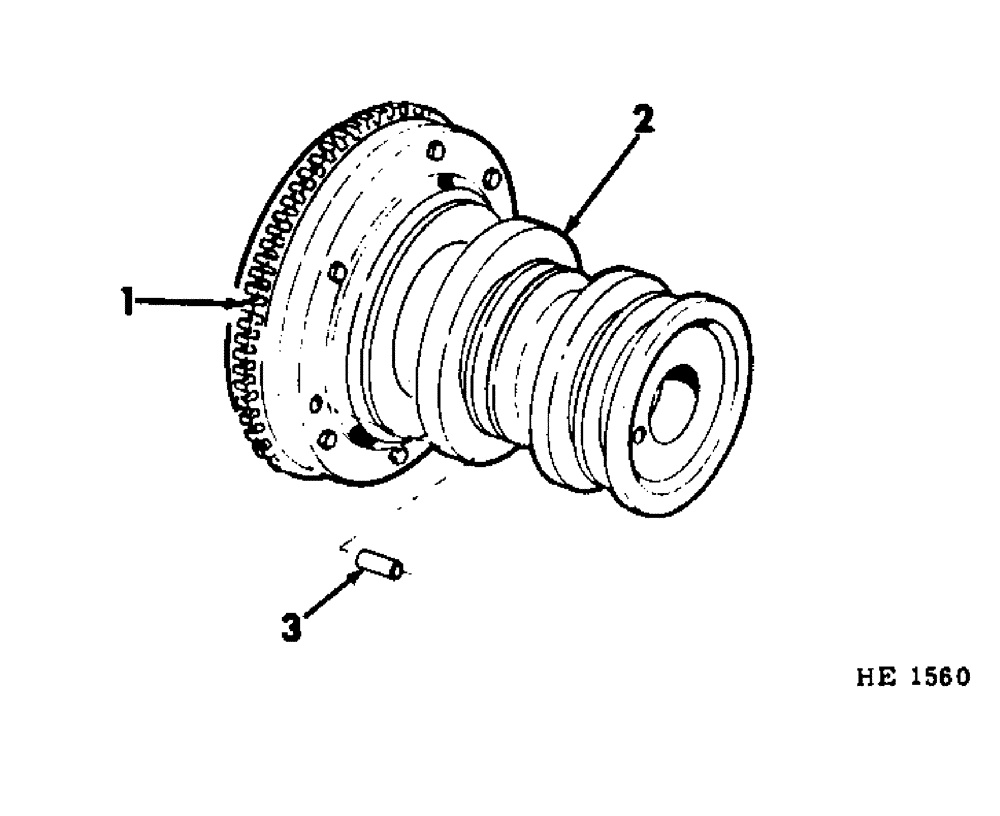

Схема запчастей Case IH 275 - (C-15) - 6 CYLINDER, 232 CARBURETED ENGINE, SERVICE ENGINES (01) - ENGINE
2
3
1

Артикул

Название

Примечание

Количество

827108C91

1шт.

SERVICE ENGINES, (6 CYL. -232 cubic inch) composed of, alternator adjusting strap, camshaft w/pin and sprocket, crankcase, crankshaft w/bearings sprocket and pulley, distributor and coil, fan mounting spacer and pulley, front cover, fuel pump, head w/valves, manifolds w/studs, oil pan, oil pump and float, pistons, rings and connecting rods, push rods, rocker arms, spark plugs and wires, tappets, timing chain, valve cover, water pump and thermostat, gaskets

1шт.

827272C91

1шт.

SKELETON SERVICE ENGINE (6 CYL. -232 cubic inch) composed of, crankcase w/pins and plugs, crankshaft w/bushing, camshaft, timing chain, crankshaft sprocket, connecting rods, pistons and rings, connecting rod bearings, rear crankshaft bearing seal kit, crankshaft bearings, camshaft sprocket, front cover and seal

1шт.

1

433366C1

GEAR

flywheel ring

1шт.

2

826977C91

FLYWHEEL AND PTO PULLEY w/PINS, engine (275 shown)

1шт.

2

826978C91

FLYWHEEL AND PTO PULLEY w/PINS, engine (375)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 - 16 x 1-1/4"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

20024R1

PIN

3/8 x 1" dowel

2шт.

Выбрано товаров: 10
