(C-14) - 6 CYLINDER, 232 CARBURETED ENGINE, ENGINE GASKET SETS, CYLINDER HEAD

Запчасти Case IH 275 (C-14) - 6 CYLINDER, 232 CARBURETED ENGINE, ENGINE GASKET SETS, CYLINDER HEAD (01) - ENGINE

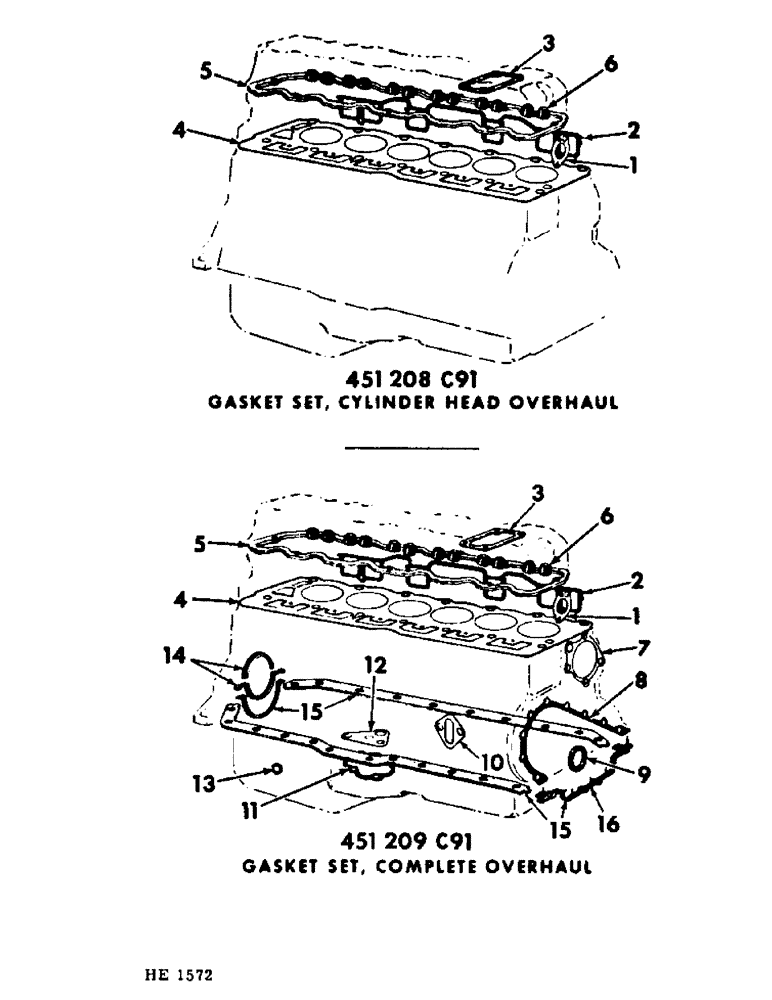

Схема запчастей Case IH 275 - (C-14) - 6 CYLINDER, 232 CARBURETED ENGINE, ENGINE GASKET SETS, CYLINDER HEAD (01) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

451208C91

SET, gasket cylinder head overhaul (includes all parts listed)

1шт.

1

386526C1

GASKET

THERMOSTAT HOUSING

1шт.

2

387125C1

MANIFOLD GASKET

MANIFOLD TO HEAD

1шт.

3

387140C1

GASKET

INTAKE TO EXHAUST MANIFOLD

1шт.

4

387096C1

GASKET

CYLINDER HEAD

1шт.

5

387148C1

GASKET

ROCKER ARM COVER

1шт.

6

444825C1

SEAL

VALVE STEM OIL DEFLECTOR

12шт.

Выбрано товаров: 0
