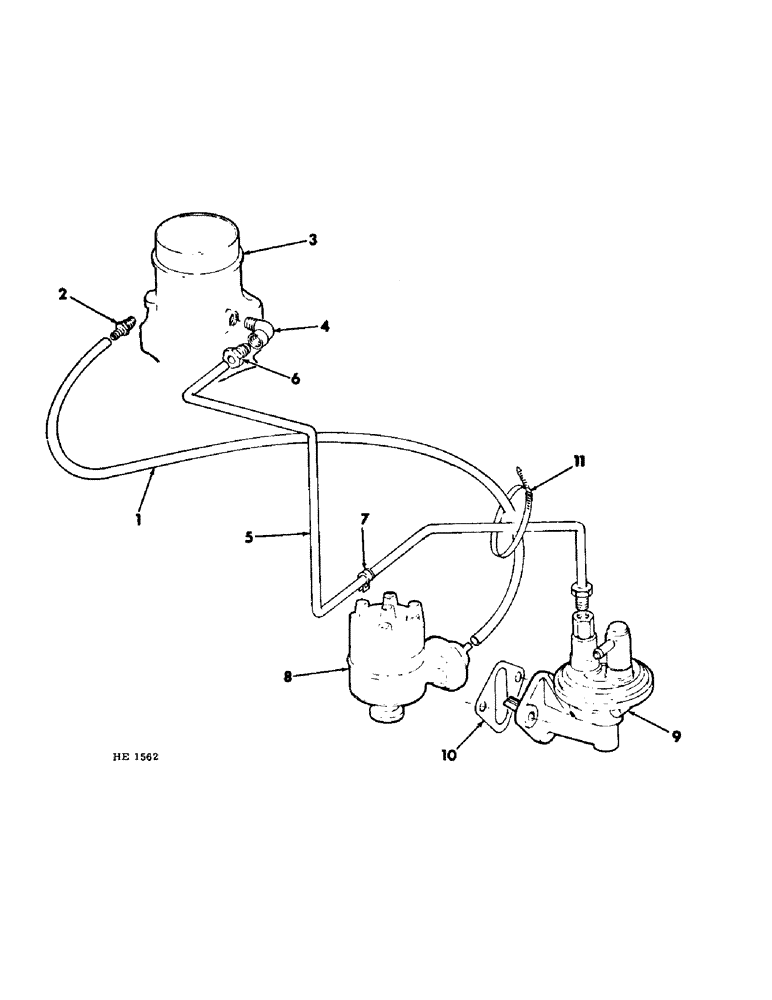

Запчасти Case IH 275 (C-13) - 6 CYLINDER, 232 CARBURETED ENGINE, FUEL LINE AND PUMP, PUMP TO CARBURETOR (01) - ENGINE

1

TUBE, vacuum advance and retard 37-1/2" length (for service order from bulk stock No. 608497R1)

1шт.

2

360758C2

FITTING,3/16" Hose x 1/8" NPTF, Barbed

tube

1шт.

3

827052C91

CARBURETOR

(for service parts, Serial Range: refer-"CARBURETOR")

1шт.

4

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16" tube to carburetor

1шт.

5

827092C1

TUBE

fuel, Serial Range: pump-carburetor

1шт.

6

222-503

TUBE NUT,1/2"-20

NUT, 5/16" tube elbow

1шт.

7

192107

CLAMP

CLIP, fuel tube

1шт.

8

1110523

DISTRIBUTOR

engine (Delco Remy) (for service parts, Serial Range: refer-"DISTRIBUTOR")

1шт.

9

827274C1

PUMP

fuel

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 - 18 x 1-1/8"

2шт.

10

384851C1

GASKET

fuel pump

1шт.

11

816502C1

STRAP

tie

2шт.
