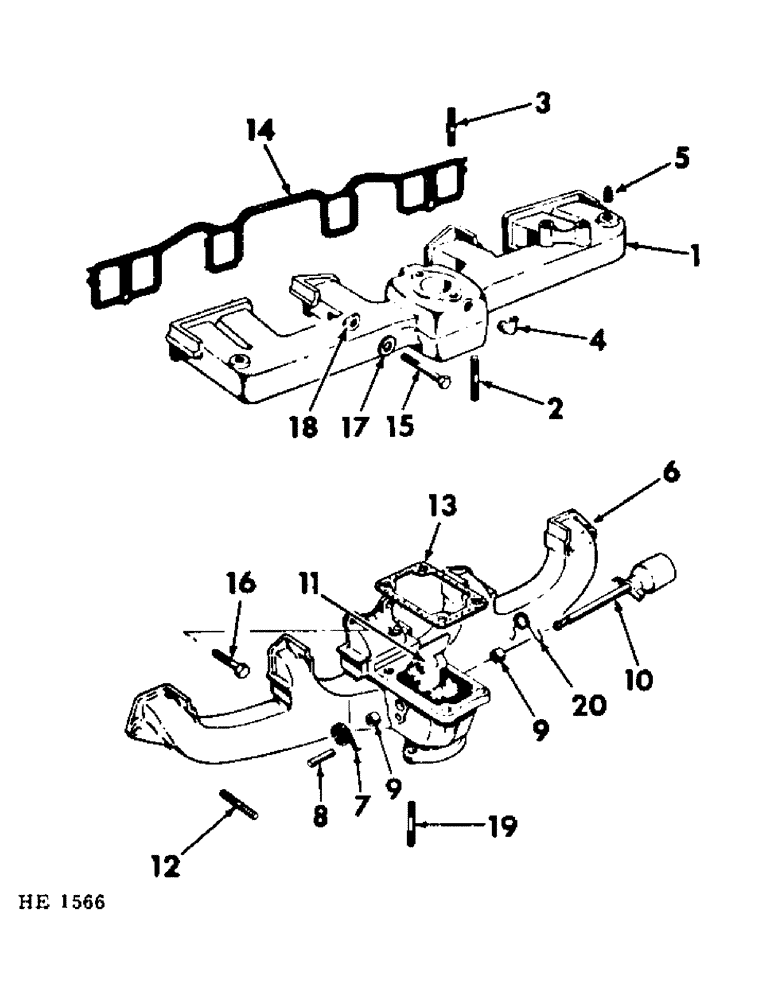

Запчасти Case IH 275 (C-10) - 6 CYLINDER, 232 CARBURETED ENGINE, MANIFOLDS (01) - ENGINE

1

445069C91

MANIFOLD ASSY, intake, composed of, (2) stud 387138C1, (3) stud 387139C1, (NSS) (1) manifold, (1) plug 445684

1шт.

2

387138C1

STUD

exhaust manifold to intake manifold

4шт.

387131C1

NUT

stud

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

387139C1

STUD, carburetor adaptor

2шт.

4

827277C1

FITTING, intake manifold

1шт.

5

445684

PLUG

1/8 - 27 intake manifold

1шт.

6

387141C93

MANIFOLD

ASSY, exhaust, composed of, (2) stud 387138C1, (1) kit 387146C91, (NSS) (1) manifold

1шт.

7

387145C1

SPRING, (NSS) (part of 387146C91 KIT)

1шт.

8

PIN, (NSS) (for service order 1 - 387146C91 KIT)

1шт.

9

BUSHING, (NSS) (for service order 1 - 387146C91 KIT)

2шт.

10

HEAT RISER (NSS) (for service order 1 - 387146C91 KIT)

1шт.

11

DAMPER W/SCREW (NSS) (for service order 1 - 387146C91 KIT)

1шт.

12

387130C1

STUD

manifold to cylinder head

2шт.

387131C1

NUT

stud

2шт.

120283

SCREW,Hex, 5/16" x 3/4", Gr 5

LK-WASHER, 3/8"

2шт.

13

387140C1

GASKET

intake to exhaust manifold

1шт.

14

387125C1

MANIFOLD GASKET

, Serial Range: manifold-head

1шт.

15

387126C1

BOLT,Hex, 3/8" - 16 x 2.50", HT

SCREW, internal and exhaust, Serial Range: manifold-head

8шт.

16

387127C1

BOLT

SCREW, intake and exhaust, Serial Range: manifold-head

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

387129C1

WASHER, internal and exhaust, Serial Range: manifold-head

4шт.

18

387128C1

CLAMP, internal and external, Serial Range: manifold-head

8шт.

19

387113C1

STUD

exhaust, Serial Range: pipe-manifold

2шт.

20

SPRING, (NSS) (for service order 1 - 387146C91 KIT)

1шт.

387146C91

KIT, heat riser (includes items, 7, 8, 9, 10, 11 & 20)

1шт.
