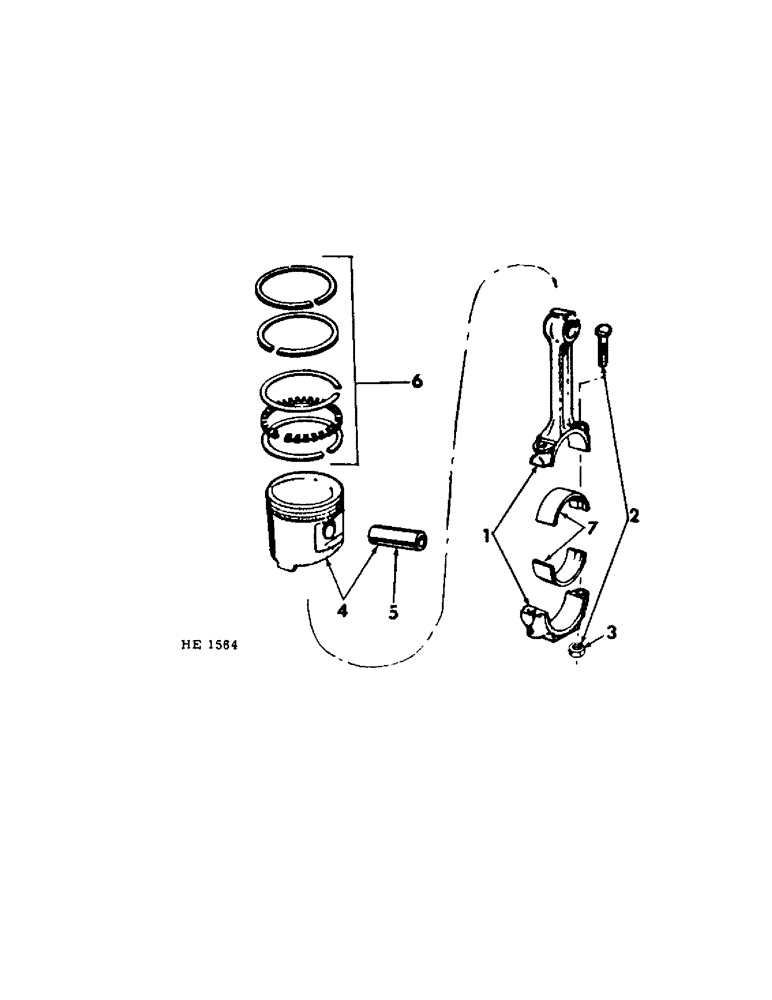

Запчасти Case IH 275 (C-08) - 6 CYLINDER, 232 CARBURETED ENGINE, CONNECTING RODS AND PISTONS (01) - ENGINE

1

421223C91

ROD ASSY, connecting, composed of, (NSS) (1) rod, (NSS) (1) cap, (2) kit 387047C91

6шт.

2

387047C91

KIT, connecting rod cap bolt w/nut

12шт.

3

387048C1

NUT, connecting rod cap

12шт.

4

421224C91

PISTON

W/PIN (std.)

6шт.

4

421225C91

PISTON W/PIN (.010)

6шт.

5

387053C1

SET, piston pin (std.)

1шт.

5

387054C1

SET, piston pin (.003)

1шт.

5

387055C1

SET, piston pin (.005)

1шт.

6

387058C92

PISTON RING SET

SET, one piston ring (std.)

6шт.

6

387059C92

PISTON RING SET

SET, one piston ring (.020)

6шт.

7

387040C1

BEARING

connecting rod upper and lower (std.)

6шт.

7

387041C1

BEARING, connecting rod upper and lower (.010)

6шт.

7

387043C91

SET, connecting rod bearings (std.) (includes 6 - 387040C1 BEARING)

1шт.
