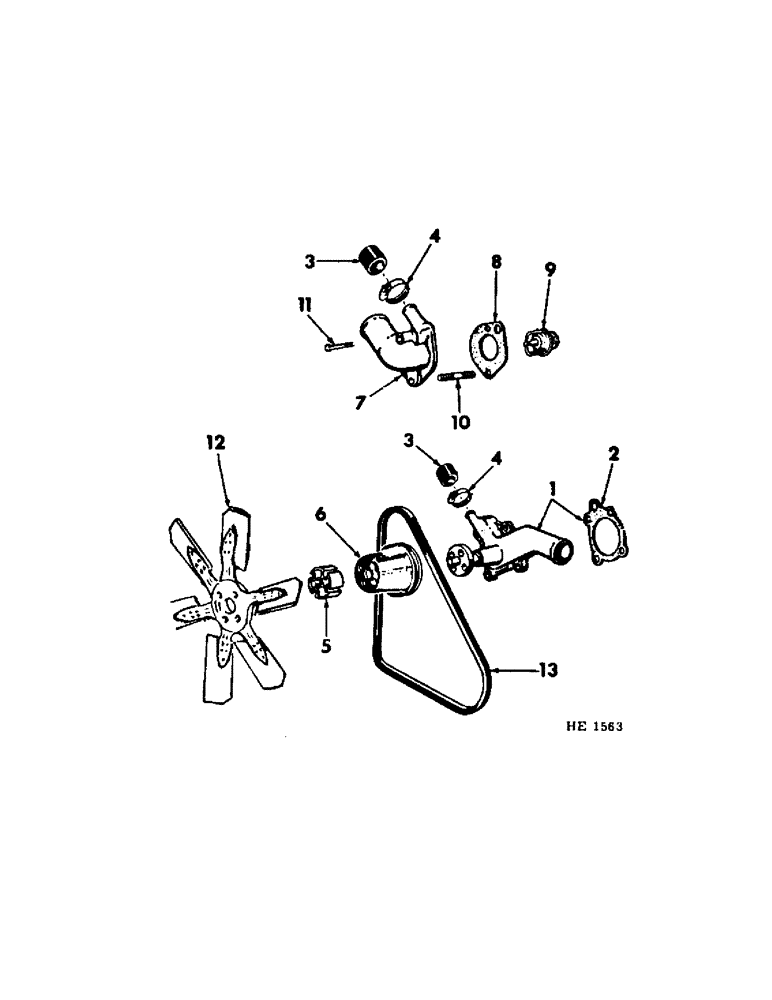

Запчасти Case IH 275 (C-08[A]) - 6 CYLINDER, 232 CARBURETED ENGINE, FAN AND WATER PUMP (01) - ENGINE

1

433361C91

PUMP

W/GASKET, water

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 - 18 x 1"

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

387039C1

GASKET

water pump

1шт.

3

389859C1

PLUG

CAP, water pump nipple and thermostat housing

2шт.

4

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, cap

2шт.

5

388350C1

SPACER

fan mounting

1шт.

6

827375C1

PULLEY

fan (Replaces 413279C1)

1шт.

7

387124C1

HOUSING, thermostat

1шт.

8

386526C1

GASKET

thermostat housing

1шт.

9

386525C1

THERMOSTAT

1шт.

10

387256C1

STUD, thermostat housing short

1шт.

120368

NUT,5/16"-24, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 ga

2шт.

11

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 - 18 x 1-1/2"

1шт.

12

826951C1

FAN

radiator

1шт.

Not part of engine.

1шт.

181614

SPARE PART

BOLT, 5/16 - 24 x 1-1/2"

4шт.

Not part of engine.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of engine.

1шт.

13

306219C2

BELT, fan

1шт.

Not part of engine.

1шт.
