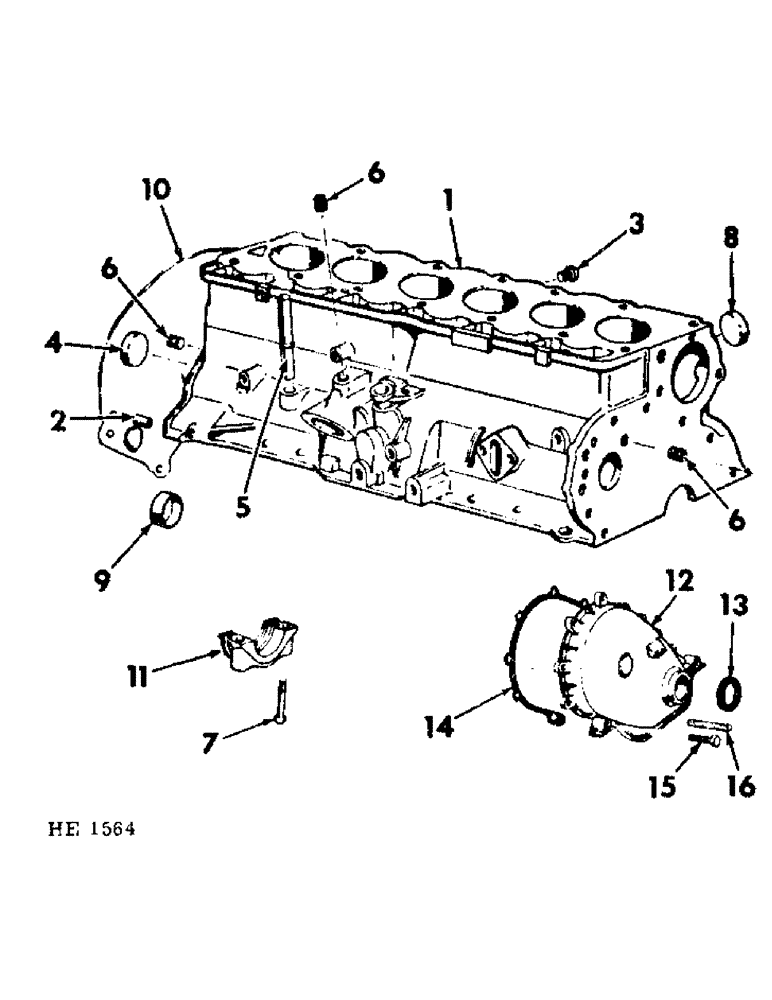

Запчасти Case IH 275 (C-06) - 6 CYLINDER, 232 CARBURETED ENGINE, CRANKCASE WITH FRONT COVER (01) - ENGINE

1

433362C92

1шт.

CRANKCASE ASSY, engine, composed of, (2) pins 387016C2, (1) plug 445686, (1) plug 387027C1, (3) plug 444660, (14) bolt 387014C1, (4) plug 387012C1, (NSS) (1) crankcase w/caps, (1) set 387010C91, (1) cover w/seal 387035C92, (1) gasket 387034C2, (6) bolt 180020, (1) bolt 180023, (2) stud 444822C1, (7) washer 120380, (2) washer 120382

1шт.

2

387016C2

PIN, rear PTO support dowel

2шт.

3

445686

PLUG

5/8 - 18 drain

1шт.

4

387027C1

PLUG

camshaft rear housing

1шт.

5

387023C1

TUBE,.375" OD, 6" Length

oil level dipstick

1шт.

6

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, oil channel and filter by-pass

3шт.

7

387014C1

BOLT, main bearing cap

14шт.

8

387012C1

PLUG

cylinder block core hole

4шт.

9

387010C91

BEARING

SET, camshaft bearing (std.)

1шт.

9

387011C91

SET, camshaft bearing (.010)

1шт.

10

443215C1

SPACER, Serial Range: housing-block

1шт.

11

SPACER, Serial Range: housing-block

1шт.

12

387035C92

COVER, front (includes 1 - 387036C91 SEAL)

1шт.

13

387036C91

SEAL

front cover

1шт.

14

387034C2

GASKET, front cover

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

15

180023

SPRING

1/4 - 20 x 1-1/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

16

444822C1

STUD, Serial Range: cover-block

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
