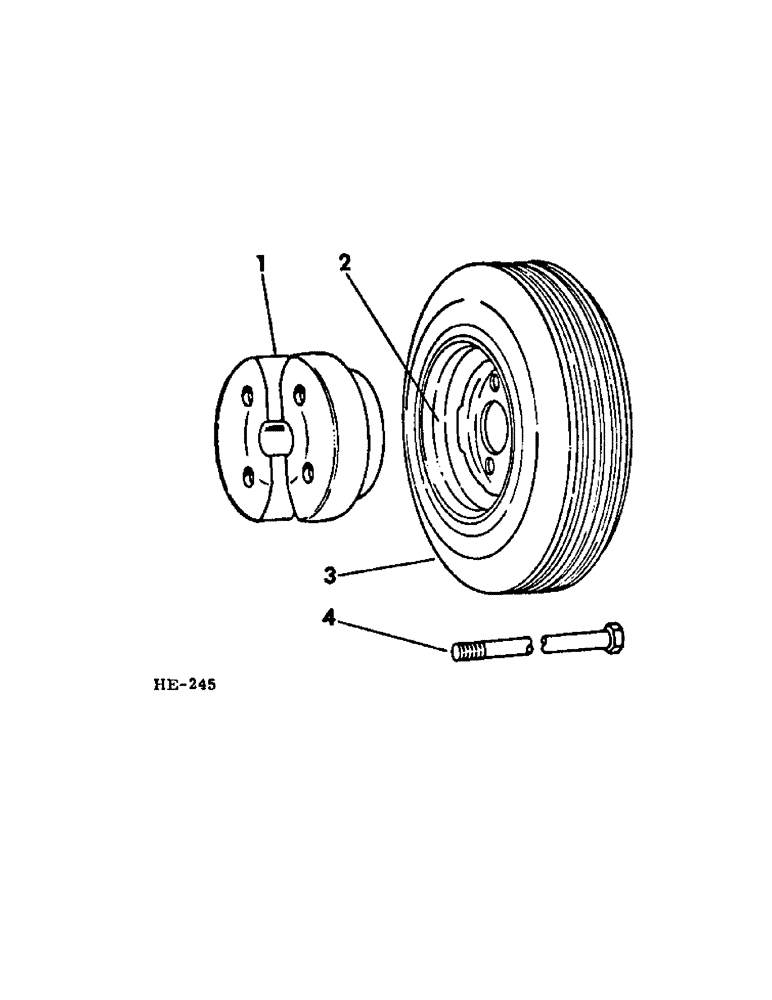

Запчасти Case IH 275 (L-2[A]) - WHEELS AND WHEEL WEIGHTS, DUAL TAIL WHEEL AND COUNTER WEIGHTS Wheels & Wheel Weights

1

604754R1

WEIGHT

tail wheel outer counter (for use on 275 Windrower built prior to machine serial No. 2515) (for use on 375 Windrower built prior to machine serial no. 808)

1шт.

1

604753R1

WEIGHT

tail wheel inner counter (for use on 275 Windrower built prior to machine serial No. 2515) (for use on 375 Windrower built prior to machine serial No. 808)

4шт.

2

622192R91

WHEEL

15 x 5 KB dual tail (for use on 275 Windrower built prior to machine serial No. 2515) (for use on 375 Windrower built prior to machine serial No. 808)

1шт.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 - NF x 1-5/8" wheel

12шт.

U18588

NUT

1/2" - NF wheel

12шт.

2

622192R91

WHEEL

15 x 5 KB dual tail (for use on 275 Windrower built w/machine serial No. 2515 & since) (for use on 375 Windrower built w/machine serial No. 808 & since)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

12шт.

TIRE AND TUBE, 6.70 - 15 4 ply implement code I-1

2шт.

3

TIRE, 6.70 - 15 4 ply code I-1 tubeless

2шт.

387897R91

VALVE STEM

VALVE, tubeless tire

2шт.

4

19787R1

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2 x 8" counter weight (for use on 275 Windrower built prior to machine serial No. 2515) (for use on 375 Windrower built prior to machine serial No. 808)

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.
