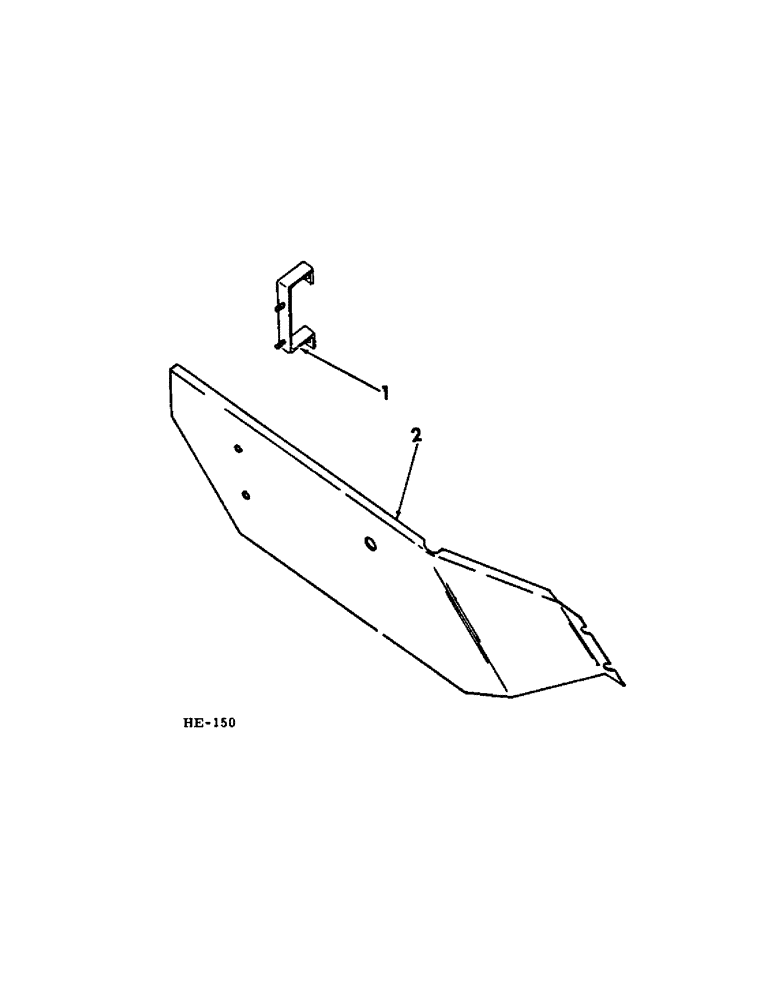

Запчасти Case IH 275 (Q-58) - PLATFORMS, AUGER DRIVE SHIELD RIGHT HAND Platforms

1

595715R11

SUPPORT, shield rear RH (for use on machines built prior to the 1968 season)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

1шт.

893862R1

WASHER

15/32 x 3/4 x 11 ga

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

1

597955R2

SUPPORT, shield rear RH (for use on machines built 1968 season & since)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

893862R1

WASHER

15/32 x 3/4 x 11 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

271501

SOCKET

NUT, 7/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

SHIELD, auger drive RH (for service on platforms built prior to the 1968 season, order 1 - 597954R2, SHIELD & 1 - 597955R1, BRACKET)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

597954R2

SHIELD, auger drive RH (for use on platforms built 1968 season & since)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
