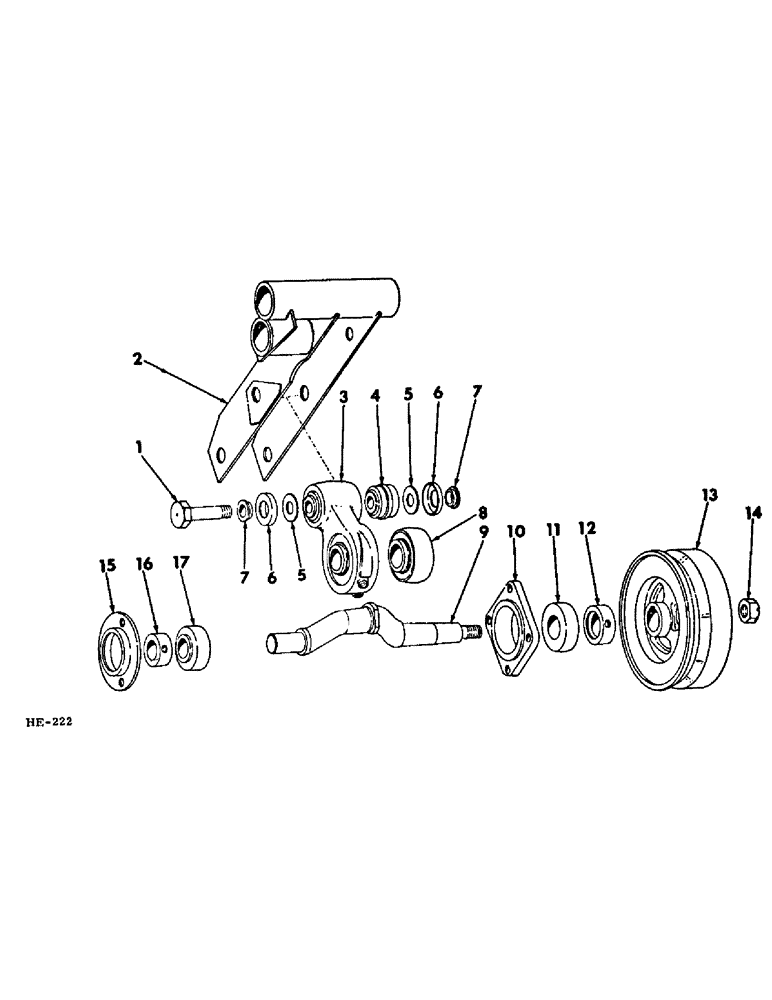

Запчасти Case IH 275 (Q-57) - PLATFORMS, KNIFE DRIVE FLYWHEEL CRANK Platforms

1

595732R1

BOLT,Spcl, Hex, 3/4" - 16 x 3 1/2"

knife drive pitman connecting

1шт.

691199R1

NUT

LK-NUT, 3/4" - NF

1шт.

2

596271R92

ARM

knife drive (for component parts of this assembly refer to "KNIFE DRIVE ARM" in section "Q" of this parts catalog)

1шт.

3

599608R91

PITMAN

knife drive (includes 1 - 109461, FITTING; 2 - 595729R1, WASHER; 2 - 595730R1, BUSHING & 2 - 595731, CUP)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

BEARING, pitman connecting (NSS) (for service order 1 - 599608R91, PITMAN)

1шт.

5

595729R1

WASHER

pitman connecting brg

2шт.

6

595731R1

WASHER

CUP, pitman brg closure

2шт.

7

595730R1

BUSHING

pitman connecting brg

2шт.

8

BEARING, pitman crankshaft (NSS) (for service order 1 - 599608R91, PITMAN)

1шт.

9

595723R2

SHAFT

knife drive flywheel crank

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

10

595725R1

HOUSING

flywheel crankshaft rear brg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

flywheel crankshaft rear

1шт.

12

455104R11

COLLAR

rear brg locking (includes 1 - 102592, SCREW)

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls-cup-pt-set

1шт.

13

595726R1

PULLEY

knife drive flywheel

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" woodruff

1шт.

14

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4" - NF slt-pulley locking

1шт.

467750R1

WASHER

25/32 x 1-1/2" x 11 ga

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

15

595724R1

FLANGED BEARING

RETAINER, crankshaft front brg

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

557115R11

COLLAR

COLLAR, front brg locking (includes 1 - 115321, SCREW)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

17

455960R91

BALL BEARING

BEARING, crankshaft front

1шт.
