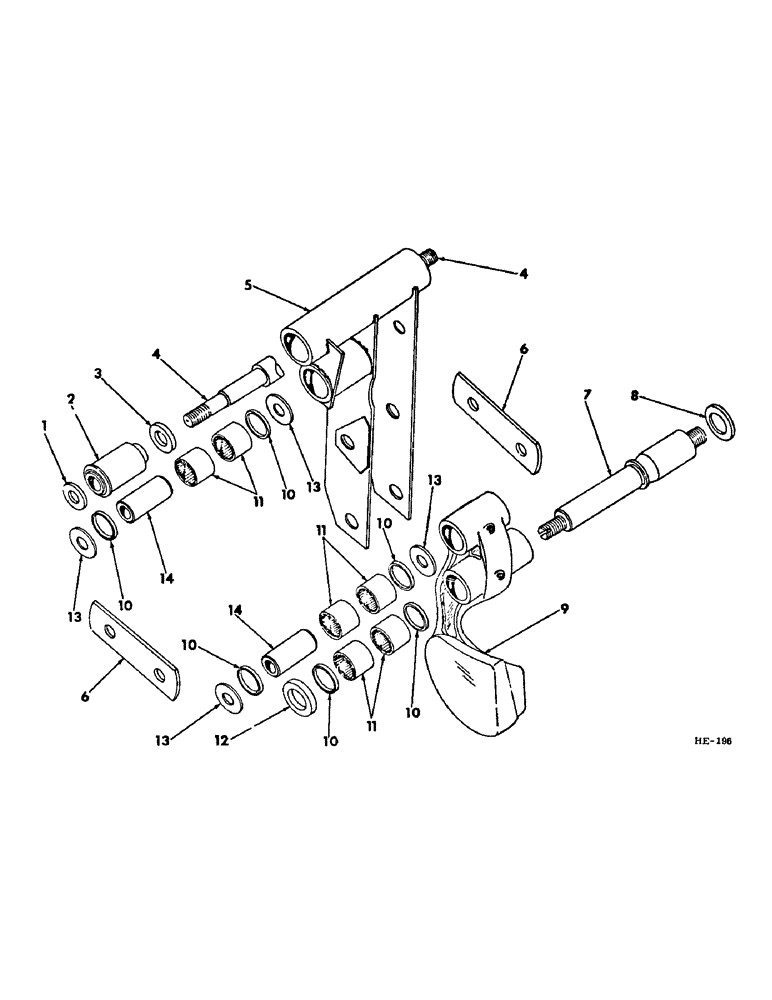

Запчасти Case IH 275 (Q-52) - PLATFORMS, KNIFE DRIVE ARM Platforms

1

595741R1

WASHER

1/4" thick pivot shaft outer (opt w/596270R1, WASHER)

1шт.

1

596270R1

WASHER

5/16" thick pivot shaft outer (opt w/595741R1, WASHER)

1шт.

2

236522R91

BUSHING

knife drive arm pivot

2шт.

3

595740R1

WASHER

pivot stud inner

2шт.

4

595739R1

SHAFT

STUD, knife drive arm pivot

1шт.

595742R1

NUT

LK-NUT, 3/4" - NF

2шт.

5

596271R92

ARM

knife drive (includes 2 - 236522R91, BUSHING; 2 - 595740R1, WASHER & 1 - 595739R1, STUD)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

595745R1

STRIP

knife drive connection

2шт.

86979737

SHAFT

3/4" - NF x 4"

2шт.

691199R1

NUT

LK-NUT, 3/4" - NF

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

595746R1

WASHER

25/32 x 2 x 16 ga

1шт.

7

595748R1

SHAFT

STUD, knife drive balancer pivot

1шт.

595742R1

NUT

LK-NUT, 3/4" - NG

2шт.

8

595750R1

WASHER

balancer pivot stud

1шт.

9

595747R2

BALANCER, knife drive

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

1шт.

10

606749R91

OIL SEAL

balancer oil

6шт.

11

102613R91

NEEDLE BEARING

balancer needle (opt to use 825233C91, BEARING)

6шт.

11

825233C91

BEARING

balancer needle (opt to use 102613R91, BEARING)

6шт.

12

595749R1

BUSHING

balancer pivot stud front

1шт.

13

595746R1

WASHER

connection strip

1шт.

14

595743R1

BUSHING

arm & balancer connection

2шт.
