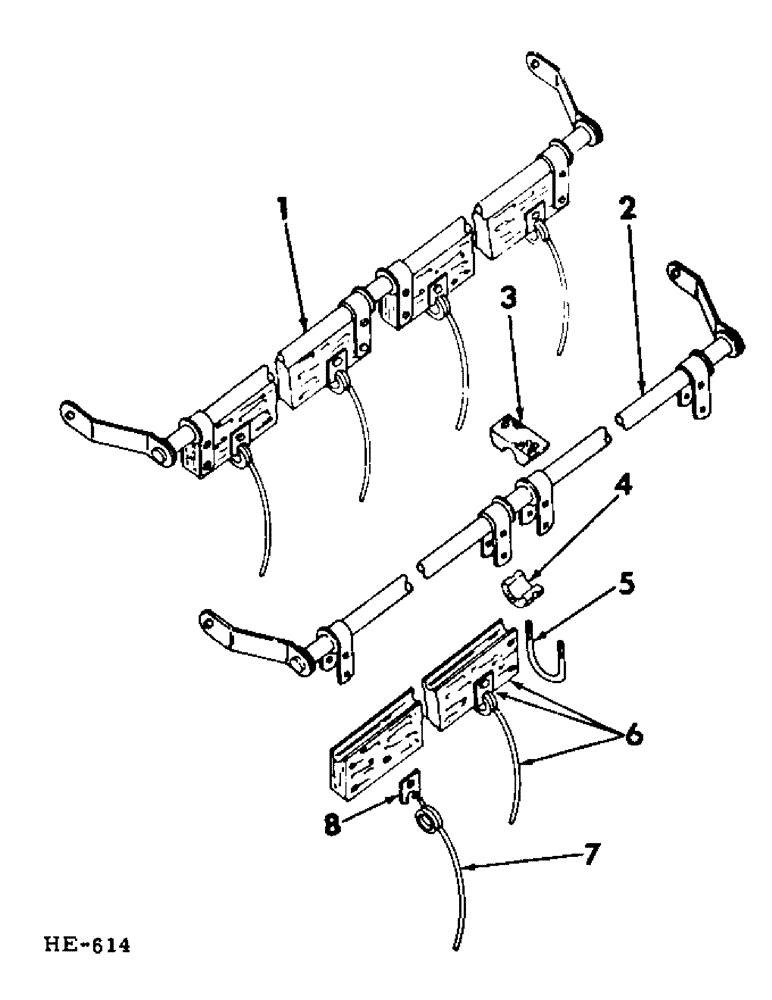

Запчасти Case IH 275 (Q-45) - PLATFORMS, PICK-UP REEL BATSHAFT BAT Platforms

1

598221R91

BAT

10 ft platform batshaft (NOT pea platform) composed of, (2) BAT 598223R91, (1) BATSHAFT 598222R1, (16) BOLT 18629R1, (16) NUT 378531R1

5шт.

1

598224R91

BAT

12 ft platform batshaft, composed of, (2) BAT 598226R91, (1) BATSHAFT 598225R1, (16) BOLT 18629R1, (16) NUT 378531R1

5шт.

1

598227R91

BAT

14 ft platform batshaft, composed of, (1) BAT 598229R91, (2) BAT 598189R91, (1) BATSHAFT 598228R1, (24) BOLT 18629R1, (24) NUT 378531R1

5шт.

1

598230R91

BAT

16 ft platform batshaft, composed of, (1) BAT 598232R91, (2) BAT 598233R91, (1) BATSHAFT 598231R1, (24) BOLT 18629R1, (24) NUT 378531R1

5шт.

2

598222R1

SHAFT

BATSHAFT, 10 ft platform

5шт.

2

598225R1

SHAFT

BATSHAFT, 12 ft platform

5шт.

2

598228R1

SHAFT

BATSHAFT, 14 ft platform

5шт.

2

598231R1

SHAFT

BATSHAFT, 16 ft platform

5шт.

3

598234R1

BASE

BEARING, reel bat inner (15 used 10 ft & 12 ft platform - 20 used 14 ft & 16 ft platform)

1шт.

4

598235R1

BEARING CAP,1.025"

BEARING, reel bat outer (15 used 10 ft & 12 ft platform - 20 used 14 ft & 16 ft platform)

1шт.

5

598236R1

U-BOLT,U, 1/4" - 20

brg clamping (15 used 10 ft & 12 ft platform - 20 used 14 ft x 16 ft platform)

1шт.

231-4144

NUT,1/4"-20, GB

LK-NUT, 1/4" type HL (2 used per bolt)

1шт.

6

598223R91

BAT

10 ft platform (includes 12 - 592616R1, CLIP; 12 - 20901R1, RIVET & 12 - 598171R1, TINE)

10шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

6

598226R91

BAT

12 ft platform (includes 14 - 592616R1, CLIP; 14 - 20901R1, RIVET & 14 - 598171R1, TINE)

10шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

6

598229R91

BAT

14 ft platform inner (includes 12 - 592616R1, CLIP; 12 - 20901R1, RIVET & 12 - 598171R1, TINE)

5шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

40шт.

6

598189R91

BAT

14 ft platform outer (includes 11 - 592616R1, CLIP; 11 - 20901R1, RIVET & 11 - 598171, TINE)

10шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

6

598232R91

BAT

16 ft platform inner (includes 12 - 592616R1, CLIP; 12 - 20901R1, RIVET & 12 - 598171R1, TINE)

5шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

40шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

40шт.

6

598233R91

BAT

16 ft platform outer (includes 13 - 592616R1, CLIP; 13 - 20901R1, RIVET & 13 - 598171R1, TINE)

10шт.

18629R1

SCREW,Short NK, 1/4"-20 x 1 1/2", G2

BOLT, 1/4 x 1-1/2" crg

80шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4"

80шт.

7

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat (120 used 10 ft platform - 140 used 12 ft - 170 used 14 ft & 190 used 16 ft)

1шт.

8

592616R1

CLIP

bat tine (1 used per tine)

1шт.

20901R1

RIVET

3/16 x 1" ov-hd semi-tubular (1 used per clip)

1шт.
