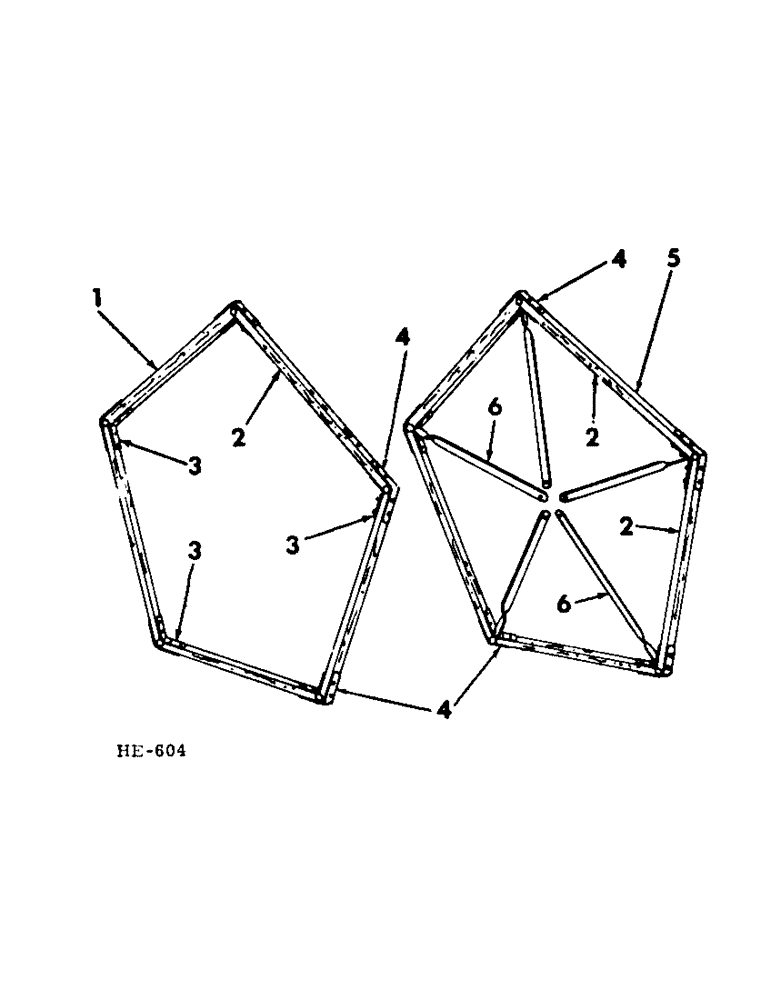

Запчасти Case IH 275 (Q-43) - PLATFORMS, PICK-UP REEL POLYGON Platforms

1

592617R91

REEL

POLYGON, 10 ft platform plain LH, composed of, (24) BOLT 180042, (24) LOCKWASHER 120380, (24) NUT 378531R1, (6) STICK 592619R1, (6) STRAP 592620R1, (6) STRAP 592621R1

1шт.

1

598172R91

POLYGON, 12 ft, 14 ft & 16 ft platform plain LH, composed of, (20) BOLT 180042, (20) LOCKWASHER 120380, (20) NUT 378531R1, (5) STICK 598173R1, (5) STRAP 598174R1, (5) STRAP 598175R1

1шт.

2

592619R1

STICK, polygon (12 used on 10 ft platform)

1шт.

2

598173R1

BOARD

STICK, polygon (10 used on 12 ft, 14 ft & 16 ft platform)

1шт.

3

592621R1

STRAP, LH polygon inner (6 used on 10 ft platform)

1шт.

3

598175R1

STRAP, LH polygon inner (5 used on 12 ft, 14 ft & 16 ft platform)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" (4 used per STRAP)

1шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" (1 used per BOLT)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

4

592620R1

STRAP, polygon outer (12 used on 10 ft platform)

1шт.

4

598174R1

STRAP, polgon outer (10 used on 12 ft, 14 ft & 16 ft platform)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" (4 used per STRAP)

1шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" (1 used per BOLT)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

5

592618R91

REEL

POLYGON, 10 ft platform spoke RH, composed of, (24) BOLT 180042, (24) LOCKWASHER 120380, (24) NUT 378531R1, (6) STICK 592619R1, (6) STRAP 592620R1, (6) SPOKE 592622R11

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

6шт.

592639R1

NUT

LK-NUT, 5/16"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

598176R91

POLYGON, 12 ft, 14 ft & 16 ft platform spoke RH, composed of, (20) BOLT 180042, (20) LOCKWASHER 120380, (20) NUT 378531R1, (5) SPOKE 598177R1, (5) STICK 598173R1, (5) STRAP 598174R1

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

5шт.

592639R1

NUT

LK-NUT, 5/16"

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

6

592622R11

SPOKE, 10 ft platform polygon RH

6шт.

6

598177R1

SUPPORT

SPOKE, 12 ft, 14 ft & 16 ft platform polygon RH

5шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4" (4 used per SPOKE)

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg (1 per SPOKE)

1шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" (1 used per BOLT)

1шт.

592639R1

NUT

LK-NUT, 5/16" (1 used per BOLT)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.
