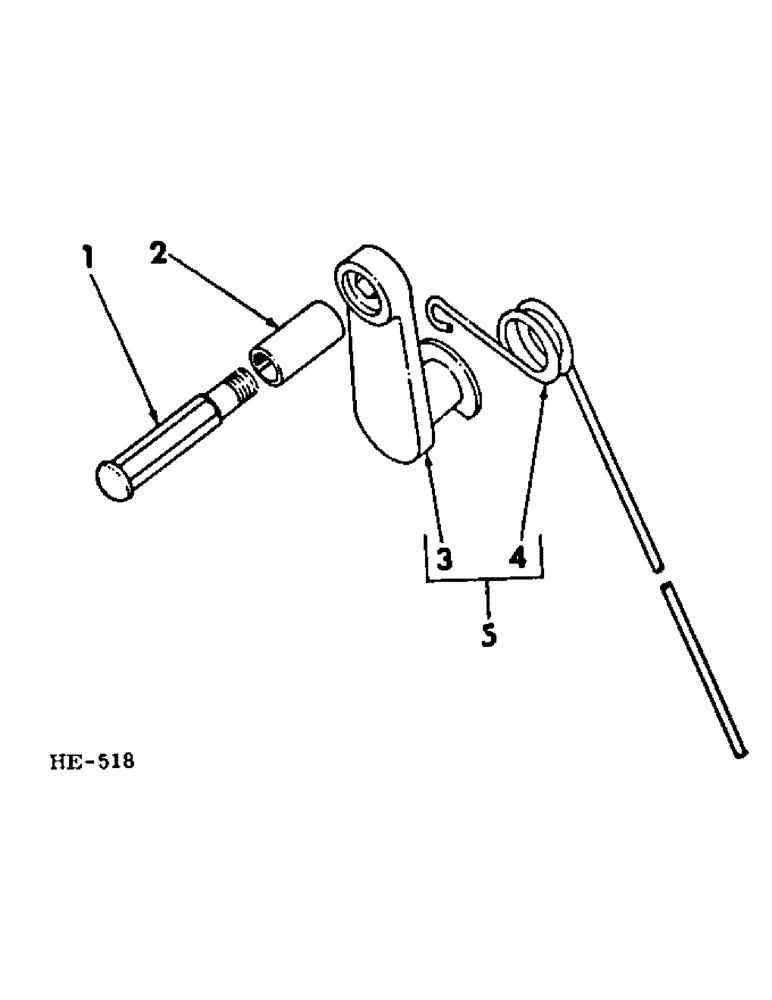

Запчасти Case IH 275 (Q-41) - PLATFORMS, PICK-UP REEL FINGER Platforms

1

592631R1

BOLT

shank (12 used 10 ft platform) (10 used 12 ft, 14 ft & 16 ft platform)

1шт.

685547R1

NUT

LK-NUT, 1/2" (1 used per bolt)

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga (1 used per bolt)

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

2

592632R1

SPACER

shank bolt (12 used 10 ft platform) (10 used 12 ft, 14 ft & 16 ft platform)

1шт.

3

592627R21

STRAP

finger (12 used 10 ft platform) (10 used 12 ft, 14 ft & 16 ft platform)

1шт.

4

592628R2

FINGER

10 ft platform pick-up LH

6шт.

4

598182R1

FINGER

12 ft, 14 ft & 16 ft platform LH

5шт.

4

592629R2

FINGER

10 ft platform pick-up RH

6шт.

4

598183R1

FINGER

12 ft, 14 ft & 16 ft platform RH

5шт.

5

592625R92

FINGER

10 ft platform pick-up LH, composed of, (1) FINGER 592628R2, (1) STRAP 592627R21

6шт.

5

598180R91

FINGER

12 ft, 14 ft & 16 ft platform LH, composed of, (1) FINGER 598182R1, (1) STRAP 592627R21

5шт.

5

592626R92

FINGER

10 ft platform pick-up RH, composed of, (1) FINGER 592629R2, (1) STRAP 592627R21

6шт.

5

598181R91

FINGER

12 ft, 14 ft & 16 ft platform RH, composed of, (1) FINGER 598183R1, (1) STRAP 592627R21

5шт.
