Запчасти Case IH 275 (Q-38) - PLATFORMS, LOW PROFILE PICK-UP REEL Platforms

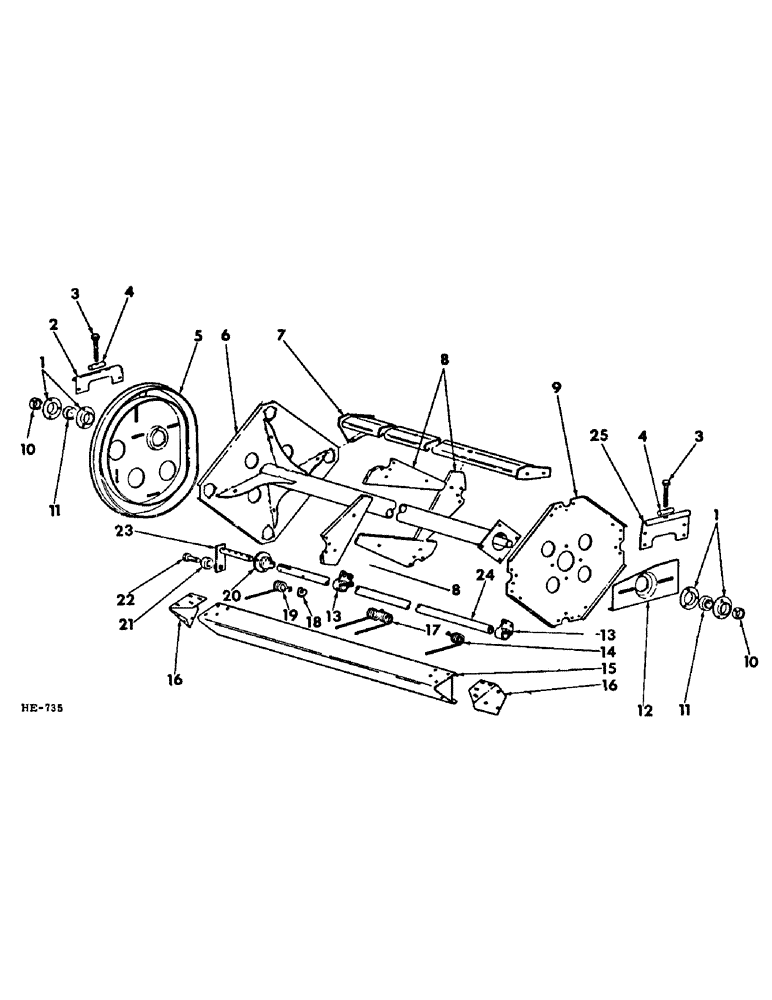

Схема запчастей Case IH 275 - (Q-38) - PLATFORMS, LOW PROFILE PICK-UP REEL Platforms

Артикул

Название

Примечание

Количество

1

617863R1

FLANGED BEARING

RETAINER, reel tube brg

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

6шт.

595848R1

NUT

LK-NUT, 3/8"

6шт.

2

598037R1

BRACKET, adjusting RH

1шт.

3

619685R2

BOLT, adjusting plate (NOT single auger)

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

3

596096R2

BOLT, adjusting plate (14 ft single auger platform)

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

4

596013R1

BAR, adjusting plate

2шт.

5

599401R1

TRACK, reel cam roller

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

5шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

6

599394R1

TUBE, 10 ft platform reel

1шт.

6

599540R2

TUBE, 12 ft low profile platform reel

1шт.

6

599541R2

TUBE, 14 ft platform reel 162.93, 8.54" Length

1шт.

6

599542R2

TUBE, 16 ft platform reel

1шт.

7

599409R1

BAT, 10 ft platform reel

4шт.

7

599546R1

BAT

12 ft platform reel

4шт.

7

599547R1

BAT, 14 ft platform reel

4шт.

7

599548R1

BAT, 16 ft platform reel

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

16шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg (8 used 10 ft & 12 ft platform) (12 used 14 ft & 16 ft platform)

1шт.

595848R1

NUT

LK-NUT, 3/8" (1 used per bolt)

1шт.

8

599407R1

SUPPORT

reel intermediate (8 used 10 ft & 12 ft platforms) (12 used 14 ft & 16 ft platforms)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8" (1 used per support)

1шт.

469668R1

WASHER

.406 x .750 x .056 (1 used per bolt)

1шт.

595848R1

NUT

LK-NUT, 3/8" (1 used per bolt)

1шт.

9

599408R1

SUPPORT, reel end LH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

10

557113R11

COLLAR

reel tube brg locking (includes 102592, SCREW)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

11

256557R91

BEARING

pick-up reel tube

2шт.

12

595849R2

SUPPORT, reel mounting LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

595861R1

BEARING HOUSING,1.36" ID x 2" OD x 1.25"

finger tube (12 used 10 ft & 12 ft platform) (16 used 14 ft & 16 ft platform)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" lub (1 used per brg)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" (3 used per brg)

1шт.

595848R1

NUT

LK-NUT, 3/8" (1 used per bolt)

1шт.

14

599423R1

FINGER

reel pick-up RH

2шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

595848R1

NUT

LK-NUT, 3/8"

2шт.

15

595878R91

BAR, 10 ft platform lean

1шт.

15

595879R91

BAR, 12 ft platform lean

1шт.

15

595880R91

BAR, 14 ft platform lean

1шт.

15

595881R91

BAR, 16 ft platform lean

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

16шт.

619856R1

WASHER

13/32 x 1 x 16 ga

16шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

16

595890R11

SECTION, lean bar end

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

595873R1

FINGER

10 ft platform pick-up

52шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

48шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

596934R1

NUT

LK-NUT, 5/16"

48шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

6шт.

17

595873R1

FINGER

12 ft platform pick-up

68шт.

180087

SPRING

5/16 x 2"

64шт.

20248R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3/8 x 2-1/4" type 8

4шт.

596934R1

NUT

LK-NUT, 5/16"

60шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

6шт.

17

595873R1

FINGER

14 ft platform pick-up

80шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

76шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

596934R1

NUT

LK-NUT, 5/16"

72шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

6шт.

17

595873R1

FINGER

16 ft platform pick-up

84шт.

180087

SPRING

5/16 x 2"

80шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

596934R1

NUT

LK-NUT, 5/16"

80шт.

595848R1

NUT

LK-NUT, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

4шт.

18

595876R1

COVER

RETAINER, pick-up finger

1шт.

(60 used 10 ft platform)

1шт.

(72 used 12 ft platform)

1шт.

(84 used 14 ft platform)

1шт.

(96 used 16 ft platform)

1шт.

19

599422R1

FINGER

reel pick-up LH

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

2шт.

596934R1

NUT

LK-NUT, 5/16"

2шт.

19

599421R1

FINGER, reel pick-up short

4шт.

180087

SPRING

5/16 x 2"

4шт.

596934R1

NUT

LK-NUT, 5/16"

4шт.

20

599415R91

BALL BEARING,1.069" ID x 4.4375" OD x 1.25"

reel cam follower arm

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

12шт.

20803R1

WASHER

13/32 x 1 x 11 ga

12шт.

595858R1

LK-NUT, 3/8"

12шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

4шт.

21

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

reel cam follower

4шт.

22

599420R1

BOLT,Hex, 5/8" - 11 x 1.50", Gr 2

cam follower beg

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

23

599416R3

ARM

reel cam follower

4шт.

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

595848R1

NUT

LK-NUT, 3/8"

8шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

24

599413R1

TUBE, 10 ft platform pick-up finger #1

2шт.

24

599553R2

TUBE, 12 ft platform pick-up finger #1

2шт.

24

599554R2

TUBE, 14 ft platform pick-up finger #1

2шт.

24

599555R1

TUBE, 16 ft platform pick-up finger #1

2шт.

24

599414R1

TUBE, 10 ft platform pick-up finger #2

2шт.

24

599556R2

TUBE

12 ft platform pick-up finger #2

2шт.

24

599557R2

TUBE, 14 ft platform pick-up finger #2

2шт.

24

599558R1

TUBE, 16 ft platform pick-up finger #2

2шт.

25

596012R1

BRACKET, adjusting LH

1шт.

Выбрано товаров: 116
