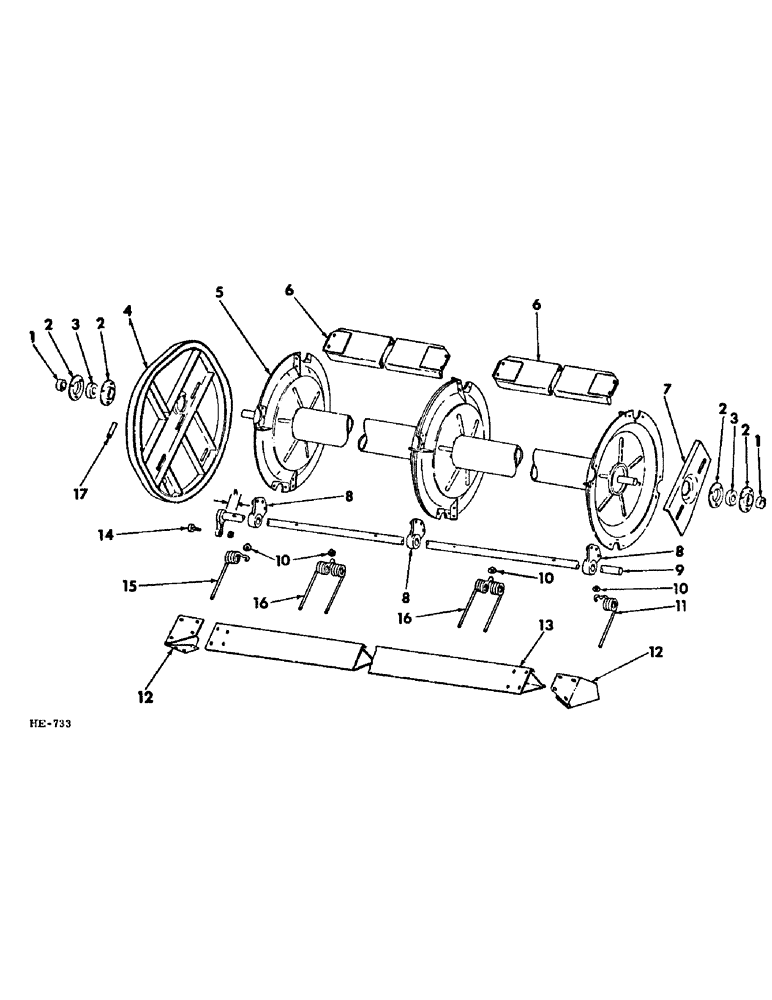

Запчасти Case IH 275 (Q-34) - PLATFORMS, LOW PROFILE PICK-UP REEL Platforms

1

455104R11

COLLAR

brg lkg (includes 1 - 102592, SCREW) (for use on 275 Windrower built prior to machine serial No. 1501) (for use on 375 Windrower built prior to machine serial No. 201)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

1

557113R11

COLLAR

brg lkg (includes 102592, SCREW) (for use on 275 Windrower built w/machine serial No. 1501 to 2101) (for use on 375 Windrower built w/machine serial No., Serial Range: 201-451)

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

2

617863R1

FLANGED BEARING

RETAINER, pick-up reel brg

4шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

pick-up reel (for use on 275 Windrower built prior to machine serial No. 1501) (for use on 375 Windrower built prior to machine serial No. 201)

2шт.

3

256557R91

BEARING

pick-up reel (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2101) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 451)

2шт.

4

595850R92

TRACK, pick-up reel cam roller

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4" crg

7шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

8шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

5

TUBE, 10 ft platform pick-up for service on 275 Windrower built prior to machine serial No. 1501, and on 375 Windrower built prior to machine serial No. 201, order 2 - 256557R91, BEARINGS; 2 - 557113R11, COLLAR & 1 - 597987R1, TUBE)

1шт.

5

597987R1

TUBE, 10 ft platform pick-up (for use on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2101) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 451)

1шт.

6

598104R1

BAT, pick-up reel

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

32шт.

619856R1

WASHER

13/32 x 1 x 16 ga

32шт.

595848R1

NUT

LK-NUT, 3/8"

32шт.

7

595849R2

BRACKET, pick-up reel mounting LH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

595861R1

BEARING HOUSING,1.36" ID x 2" OD x 1.25"

pick-up finger tube

12шт.

110146

FITTING, 1/4" - NF lub

12шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

36шт.

595848R1

NUT

LK-NUT, 3/8"

36шт.

9

595862R11

TUBE, 10 ft platform pick-up reel finger No. 1 (dimension A between cam brg arm and first tine finger hole is 5-1/4" and first tine finger is double)

2шт.

9

595863R11

TUBE, 10 ft platform pick-up reel finger No. 2 (dimension A between cam brg arm and first tine finger hose is 3-3/4" and first tine finger is single) 104, 7.69" Length

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" - NF lub

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

21290R1

WASHER

1-11/32 x 2 x 16 ga

1шт.

10

595876R1

COVER

RETAINER, pick-up reel finger

60шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

60шт.

596934R1

NUT

5/16" self-locking

60шт.

11

595874R1

FINGER

pick-up reel half LH

2шт.

180087

SPRING

5/16 x 2"

2шт.

596934

HOSE

NUT, 5/16" self-locking

2шт.

12

595890R11

SECTION, lean bar end

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

18шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

619856R1

WASHER

13/32 x 1 x 16 ga

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

13

595878R91

BAR, 10 ft platform lean

1шт.

14

595871R91

BEARING ASSY,15.875 mm ID x 41.275 mm OD x 61.12 mm

cam roller track follower

4шт.

595872R1

NUT, 5/8" - NF self-locking

4шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

4шт.

15

595875R1

FINGER

pick-up reel half RH

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2"

2шт.

596934R1

NUT

5/16" self-locking

2шт.

16

595873R1

FINGER

pick-up reel double

56шт.

180087

SPRING

5/16 x 2"

56шт.

596934R1

NUT

5/16" self-locking

56шт.

17

597995R1

BAR, cam roller track shim

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4" crg

17шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

7шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

7шт.
